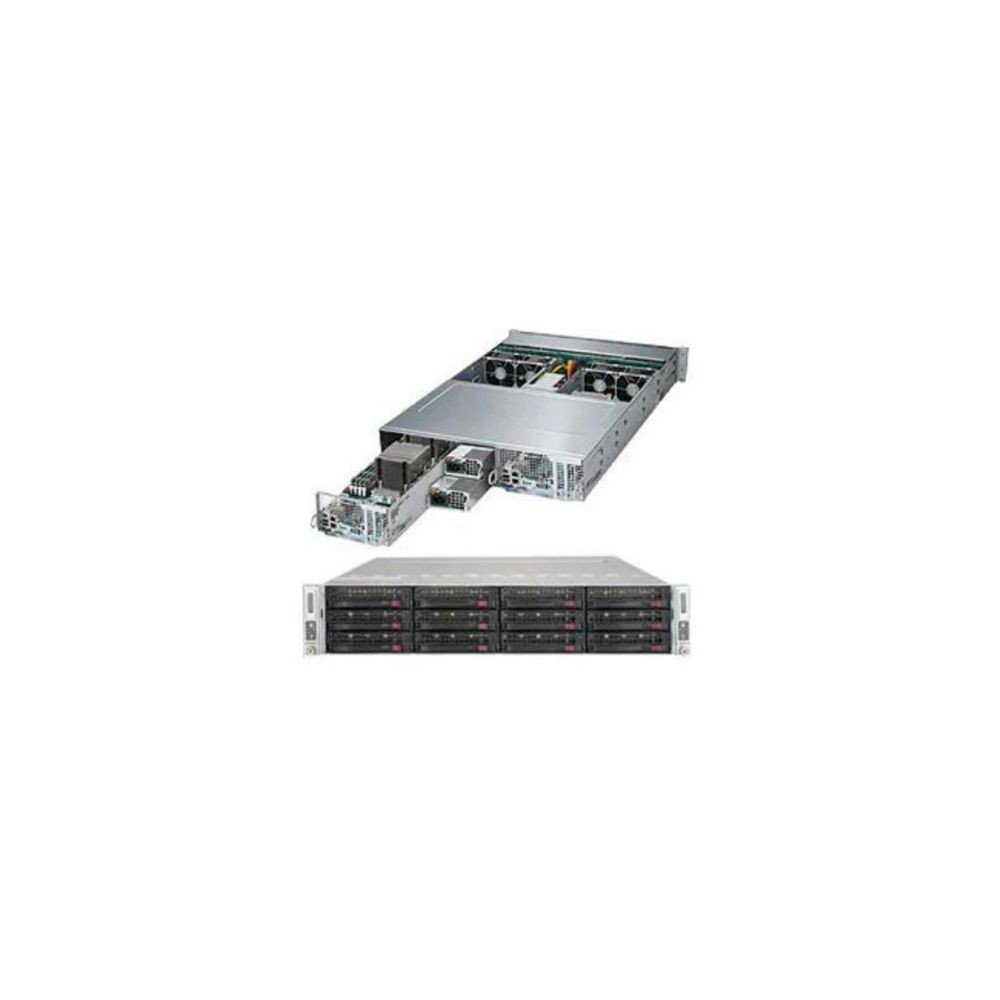

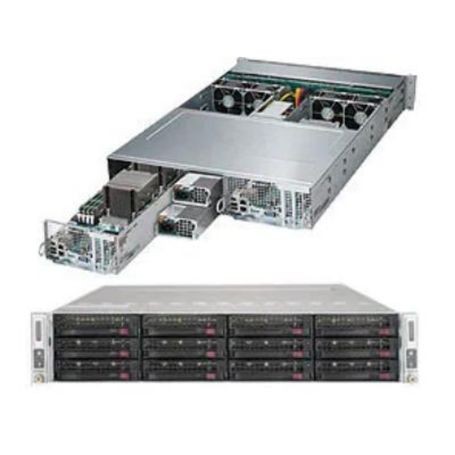

SUPERMICRO COMPUTER SYS-6028TP-DNCFR Server Barebones View larger

SUPERMICRO COMPUTER SYS-6028TP-DNCFR Server Barebones

SYS-6028TP-DNCFR

New

CSE-827HD+-R1K68B-Server-2U-Xeon-Gigabit Ethernet-Power Supply-Redundant-6x 3.5 Hot-swap drive bays:Up to 4x NVMe +2x SAS3 or 6x SAS3
×




Detailed Specifications

Primary Information
System TypeServer
Cabinet Form Factor2U
Processor / TypeXeon
Processor / ManufacturerIntel
Processor / Max Supported Qty2
Mainboard / Chipset TypeIntel C612
RAM / TechnologyDDR4
RAM / Total Slots Qty16
RAM / Max Supported Size2 TB
Hard Drive / Size3.5"
Hard Drive / Interface TypeSAS 3
Hard Drive / Bays Qty6
Storage Controller TypePCI Express
RAID LevelRAID 0, 1, 10
Data Link ProtocolGigabit Ethernet
Power / Device TypePower Supply - Redundant
Power / Installed Qty2
Power / Provided (W)1600 Watt
Power / Voltage Required100 140Vac, 180 240Vac.
Interfaces & Connections6x SAS3 (12Gbps) ports, 2x RJ45 Gigabit Ethernet LAN ports, 1x RJ45 Dedicated IPMI LAN port, 1x external QSFP Infiniband connector, 2x USB 3.0 ports total (2x rear), 1x VGA port, 1x Fast UART 16550 port / 1 Header (internal), 1x mSATA (full size) and one SATADOM support on the daughter card, 1x SATADOM support on the motherboard,
Expansion Bays Total (Free)6x 3.5" Hot-swap drive bays: Up to 4x NVMe + 2x SAS3 or 6x SAS3
Expansion Slots Total (Free)1x PCI-E 3.0 x16 slot, 1x PCI-E 3.0 x8 slot.
ModelCSE-827HD+-R1K68B
Width17.25 Inch
Depth30.5 Inch
Height3.47 Inch
Enclosure ColorBlack
RoHSY

Special Feature
COOInquire
TAA complianceInquire

UNSPSC Code
UNSPSC Code43211502
