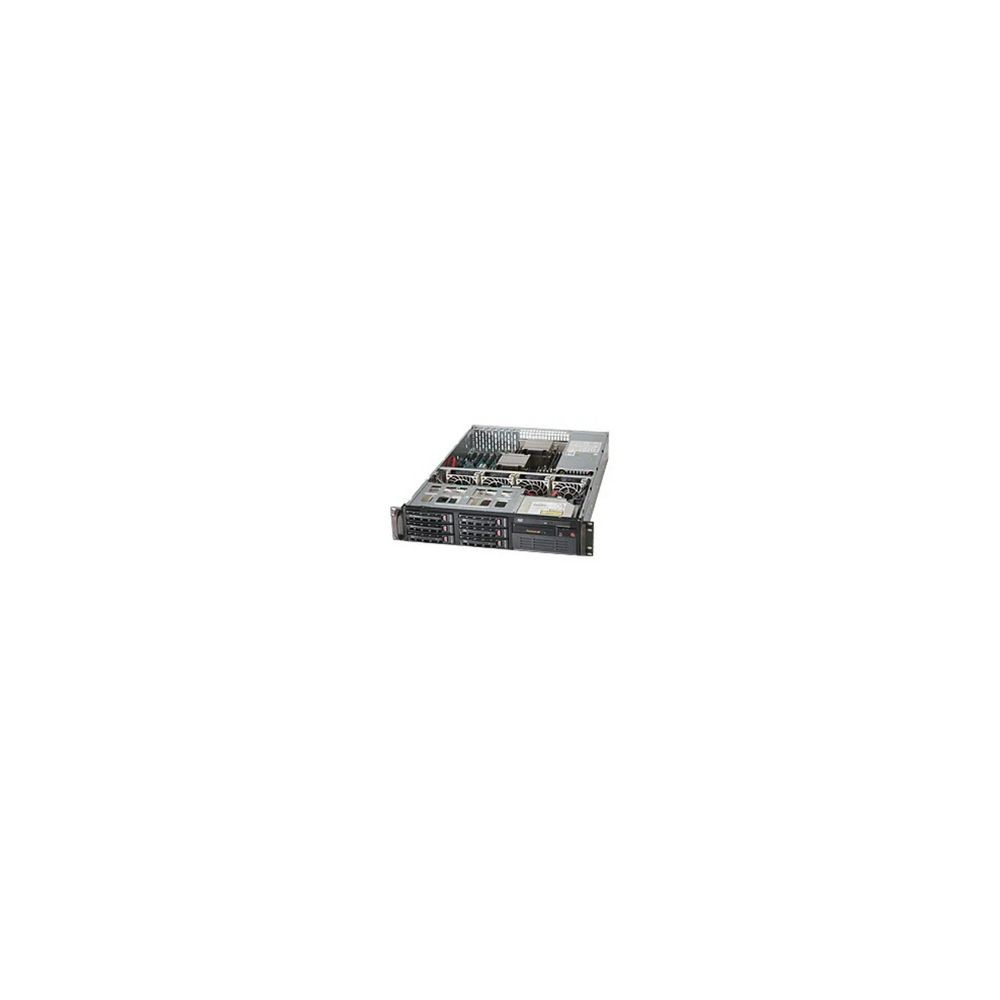

SUPERMICRO COMPUTER SYS-6028R-T Server Barebones View larger

SUPERMICRO COMPUTER SYS-6028R-T Server Barebones

SYS-6028R-T

New

Server Barebone - 2U - Xeon - Gigabit Ethernet - Power Supply - 6x SATA3 (6Gbps) ports, 2x SATA3 (6Gbps) ports onboard, 2x SATA3 powered ports that support SATA DOM, 2x RJ45 Gigabit...
×




Detailed Specifications

Primary Information
System TypeServer Barebone
Cabinet Form Factor2U
Processor / TypeXeon
Processor / ManufacturerIntel
Processor / Max Supported Qty2
Mainboard / Chipset TypeIntel C612
RAM / TechnologyDDR4
RAM / Total Slots Qty16
RAM / Max Supported Size2 TB
Hard Drive / Size3.5"
Hard Drive / Interface TypeSerial ATA
Hard Drive / Bays Qty6
RAID LevelRAID 0, 1, 5, 10
Data Link ProtocolGigabit Ethernet
Power / Device TypePower Supply
Power / Provided (W)650 Watt
Power / Voltage Required100 - 140V, 180-240V
Interfaces & Connections6x SATA3 (6Gbps) ports, 2x SATA3 (6Gbps) ports onboard, 2x SATA3 powered ports that support SATA DOM, 2x RJ45 Gigabit Ethernet LAN ports, 1x RJ45 Dedicated IPMI LAN port, Rear USB: 2x USB 3.0 + 2x USB 2.0, USB Header: 2x 3.0, 4x 2.0, 1x Type A, 1x VGA port, 1x COM Port
Expansion Slots Total (Free)3x PCI-E 3.0 x16 (Low-profile), 3x PCI-E 3.0 x8 (Low-profile)
ModelSYS-6028R-T
Width19 Inch
Depth27 Inch
Height3.5 Inch
Enclosure ColorBlack
FeaturesDual socket R3 (LGA 2011) supports Intel Xeon processor E5-2600 v4/ v3 family; QPI up to 9.6GT/s

Special Feature
COOInquire
TAA complianceInquire

UNSPSC Code
UNSPSC Code43211502
