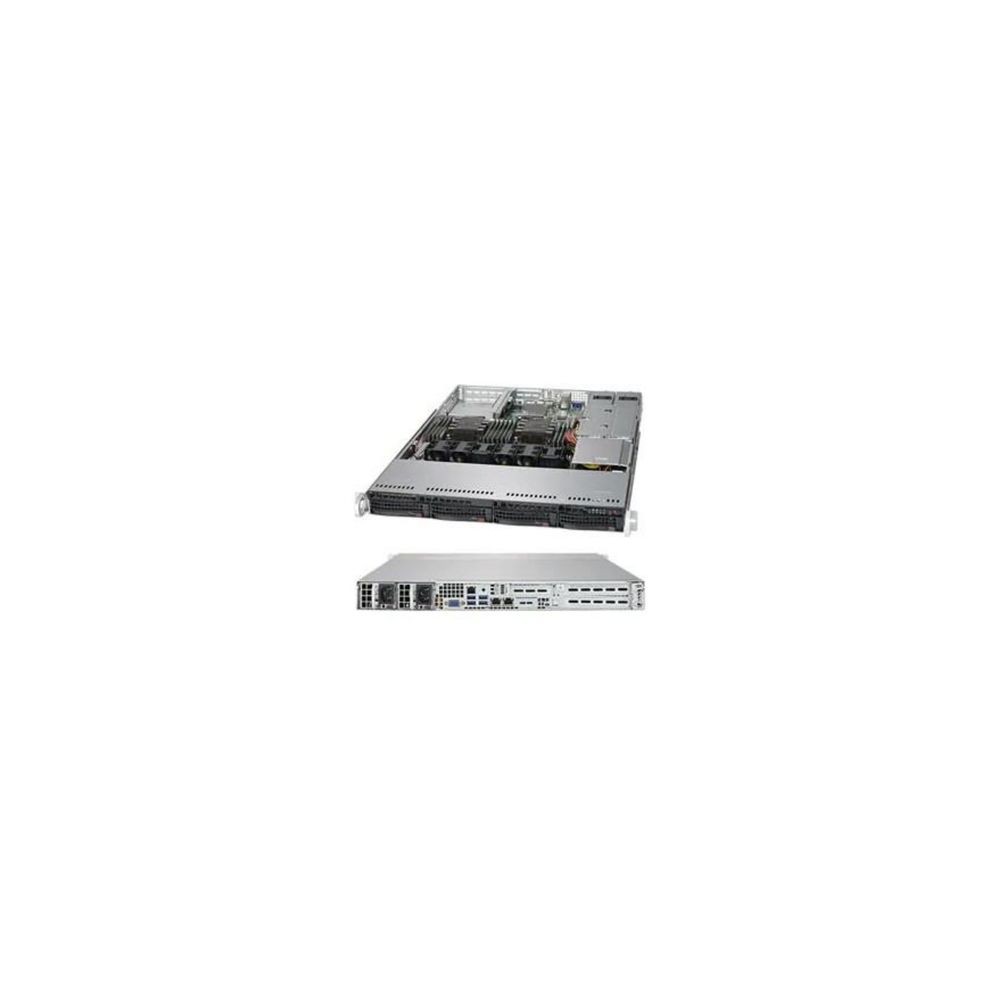

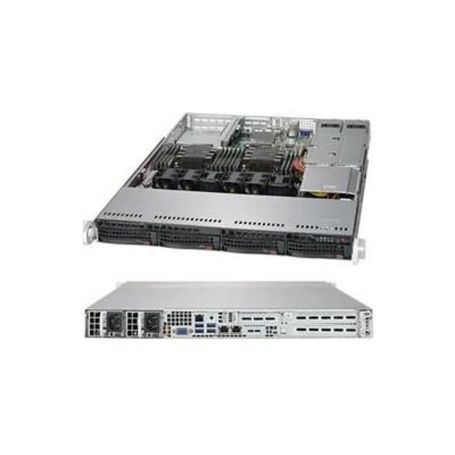

SUPERMICRO COMPUTER SYS-6019P-WTR Server Barebones View larger

SUPERMICRO COMPUTER SYS-6019P-WTR Server Barebones

SYS-6019P-WTR

New

CSE-815TQC-R706WB2-Server Barebone-1U-Xeon-Gigabit Ethernet-Power Supply-Redundant-4 Hot-swap 3.5 SATA3 drive bays
×




Detailed Specifications

Primary Information
System TypeServer Barebone
Cabinet Form Factor1U
Processor / TypeXeon
Processor / ManufacturerIntel
Processor / Max Supported Qty2
Mainboard / Chipset TypeIntel C621
RAM / TechnologyDDR4
RAM / Total Slots Qty12
RAM / Max Supported SizeUp to 3 TB
Hard Drive / Size3.5"
Hard Drive / Interface TypeSATA-3
Hard Drive / Bays Qty4
Storage Controller TypePCI Express
RAID LevelRAID 0, 1, 5, 10
Data Link ProtocolGigabit Ethernet
Power / Device TypePower Supply - Redundant
Power / Provided (W)750 Watt
Interfaces & ConnectionsSATA 4 SATA3 (6 Gbps) ports, LAN 2 RJ45 Gigabit Ethernet ports, 1 RJ45 Dedicated IPMI LAN port, USB 4 USB 3.0 ports (rear), Video 1 VGA port, DOM 2 SuperDOM (Disk on Module) ports.
Expansion Bays Total (Free)4 Hot-swap 3.5" SATA3 drive bays
Expansion Slots Total (Free)2 PCI-E 3.0 x16 (FHHL) slots, 1 PCI-E 3.0 x8 (LP) slot, 1 PCI-E 3.0 x16 for Add-on-Module (AOM), 1 PCI-E 3.0 x4 NVMe M.2 slot.
ModelCSE-815TQC-R706WB2
Width17.2 Inch
Depth25.6 Inch
Height1.7 Inch
Enclosure ColorBlack
RoHSY

Special Feature
COOInquire
TAA complianceInquire

UNSPSC Code
UNSPSC Code43211502
