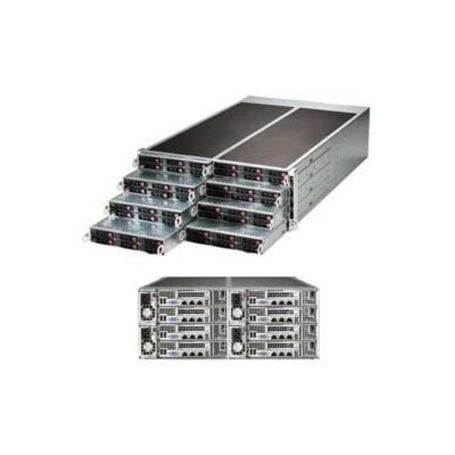

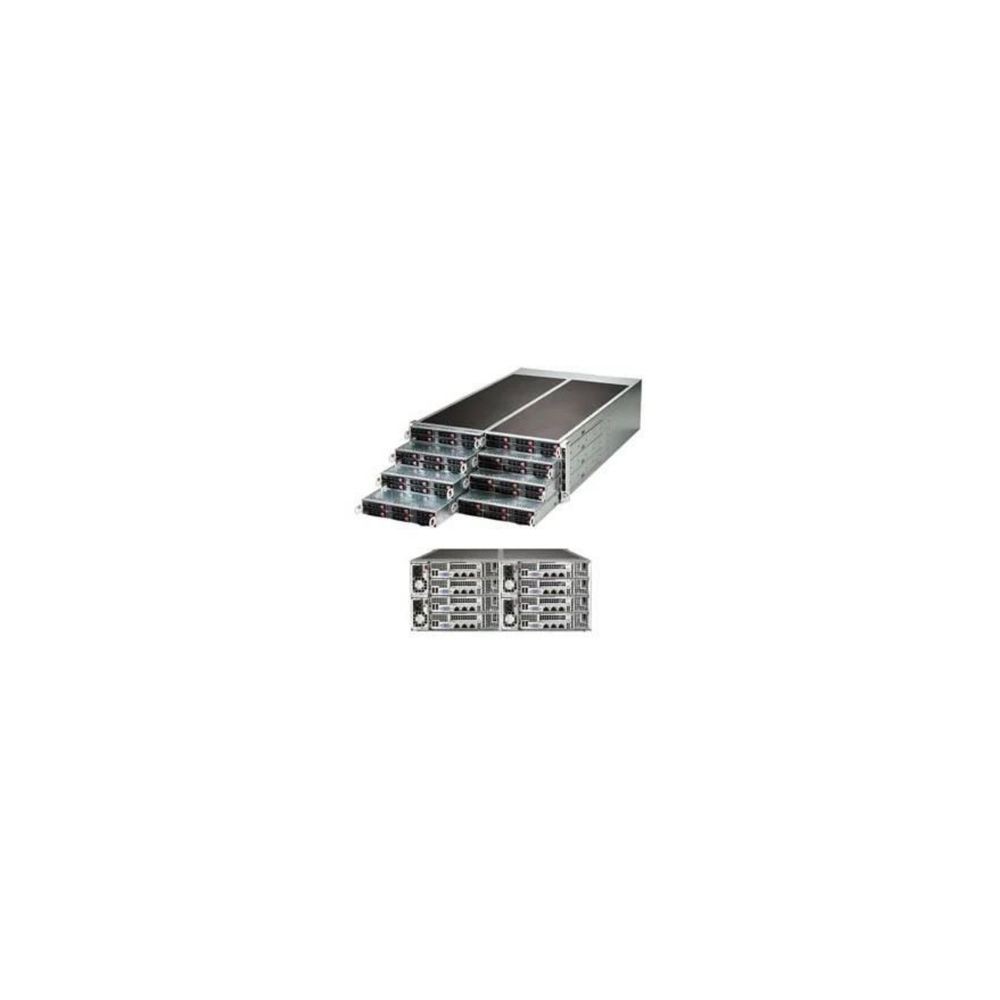

SUPERMICRO COMPUTER SYS-F618R2-RC1+ Server Barebones View larger

SUPERMICRO COMPUTER SYS-F618R2-RC1+ Server Barebones

SYS-F618R2-RC1+

New

CSE-F418BC-R2K04BP-Server Barebone-4U-Xeon-Gigabit Ethernet-Power Supply-Redundant-6x 2.5 Hot-swap SAS2/SATA3 HDD trays.M.2 Interface:PCI-E 3.0 x4,M.2 Form Factor:2260,2280,22110,M.2...
×




Detailed Specifications

Primary Information
System TypeServer Barebone
Cabinet Form Factor4U
Processor / TypeXeon
Processor / ManufacturerIntel
Processor / Max Supported Qty2
Mainboard / Chipset TypeIntel C612
RAM / TechnologyDDR4
RAM / Total Slots Qty16
RAM / Max Supported Size2 TB
Hard Drive / Size2.5"
Hard Drive / Interface TypeSATA-3; SAS 3
Hard Drive / Bays Qty6
RAID LevelRAID 0, 1, 5, 6, 10, 50; RAID 0, 1, 5, 10
Data Link ProtocolGigabit Ethernet
Power / Device TypePower Supply - Redundant
Power / Provided (W)2000 Watt
Power / Voltage Required230 240Vac
Interfaces & ConnectionsSAS : 6 SAS3 (12Gbps) ports. NVMe : 2 Internal NVMe ports (PCI-E 3.0 x4). Note: NVMe support requires 2 CPUs installed. LAN : 2 RJ45 Gigabit Ethernet LAN ports. 1 RJ45 Dedicated IPMI LAN port. USB : 2 USB 3.0 ports. VGA : 1 VGA port.
Expansion Bays Total (Free)6x 2.5" Hot-swap SAS2/SATA3 HDD trays. M.2 Interface: PCI-E 3.0 x4, M.2 Form Factor: 2260, 2280, 22110, M.2 Key: M-Key
Expansion Slots Total (Free)1x PCI-E 3.0 x16 Low-profile, 1x PCI-E 3.0 x8 (Micro LP)
ModelCSE-F418BC-R2K04BP
Width17.63 Inch
Depth29 Inch
Height6.96 Inch
Enclosure ColorBlack
RoHSY

Special Feature
COOInquire
TAA complianceInquire

UNSPSC Code
UNSPSC Code43211502
