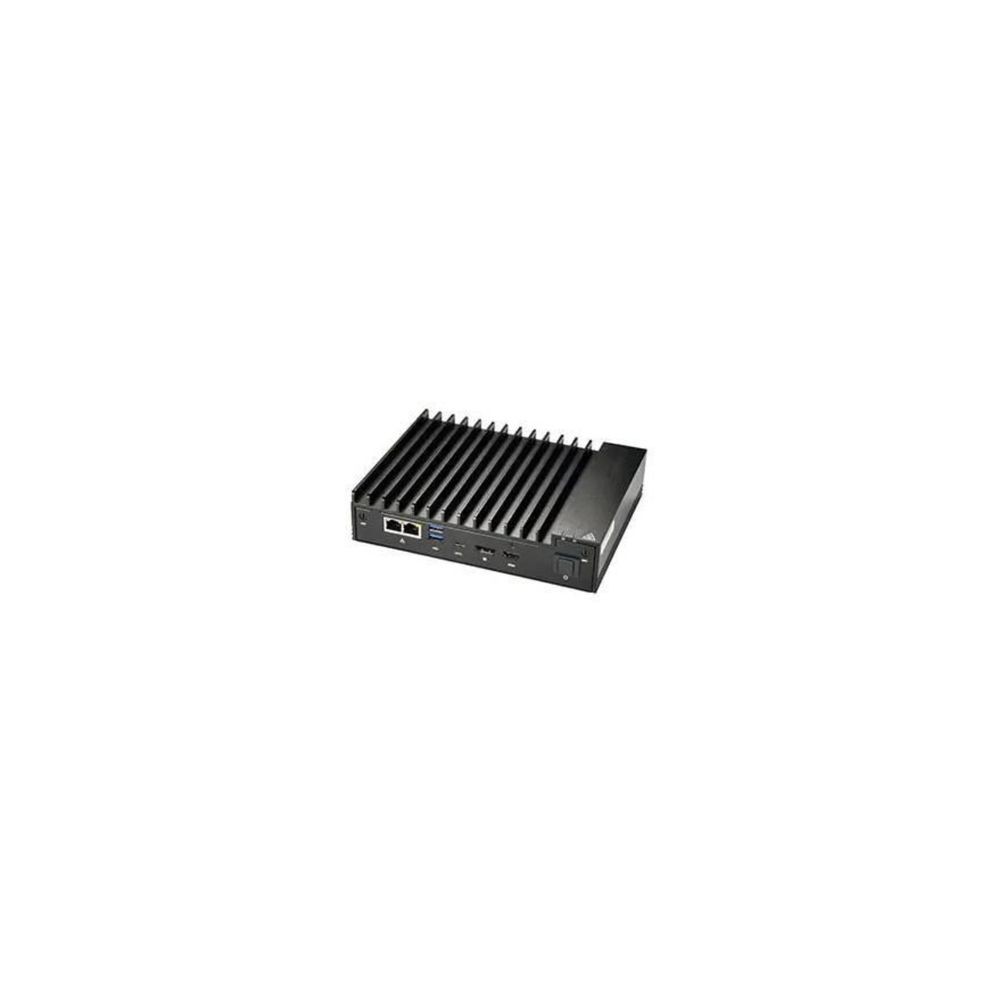

SUPERMICRO COMPUTER SYS-E100-9S-E Server Barebones View larger

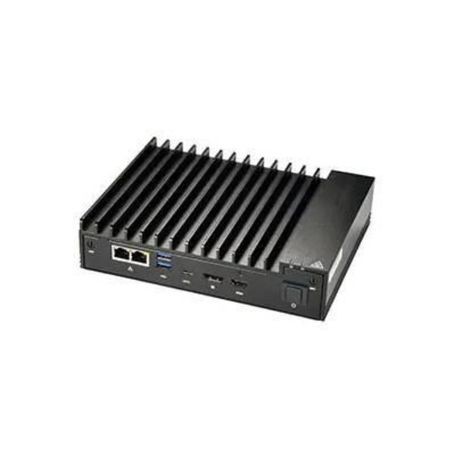

SUPERMICRO COMPUTER SYS-E100-9S-E Server Barebones

SYS-E100-9S-E

New

CSE-E101-01-Server Barebone-3.5 SBC-Core i5-Gigabit Ethernet-Power Adapter-1 M.2 2280 B-Key for SATA or PCIe SSD
×




Detailed Specifications

Primary Information
System TypeServer Barebone
Cabinet Form Factor3.5" SBC
Processor / TypeCore i5
Processor / ManufacturerIntel
Processor / Max Supported Qty1
Mainboard / Chipset TypeSystem on Chip
RAM / TechnologyDDR4
RAM / Total Slots Qty2
RAM / Max Supported Size32 GB
Hard Drive / SizeM.2
Hard Drive / Interface TypeM.2; PCI Express; Serial ATA
Hard Drive / Bays Qty1
Data Link ProtocolGigabit Ethernet
Power / Device TypePower Adapter
Power / Provided (W)60 Watt
Power / Voltage Required12V
Interfaces & ConnectionsUSB : 1 USB 3.1 (Type C). 2 USB 3.0 (rear via header). 4 USB 2.0 (rear via headers). Video Output : 1 DP (Display Port) port. 1 HDMI port. COM Port: 4 COM ports (4 headers). 2 RS232, 2 RS232/422/485, RS-485 supports auto flow control
Expansion Bays Total (Free)1 M.2 2280 B-Key for SATA or PCIe SSD
Expansion Slots Total (Free)1 Full size Mini-PCIe (1 USB 2.0, 1 PCIe Gen2, 1 SATA Gen3). Interface: SATA and PCIe 3.0 x1 and USB 2.0
ModelCSE-E101-01
Width7.68 Inch
Depth5.94 Inch
Height1.73 Inch
Enclosure ColorBlack
RoHSY

Special Feature
COOInquire
TAA complianceInquire

UNSPSC Code
UNSPSC Code43211502
