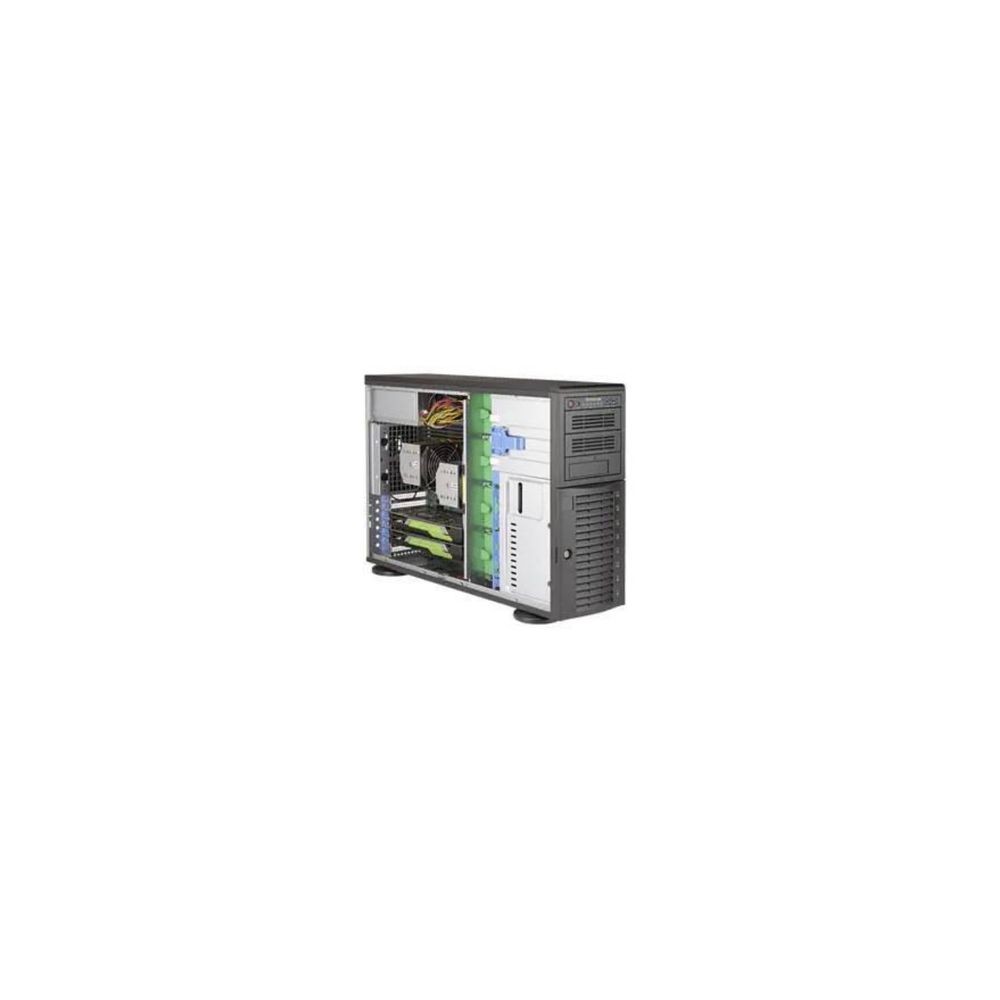

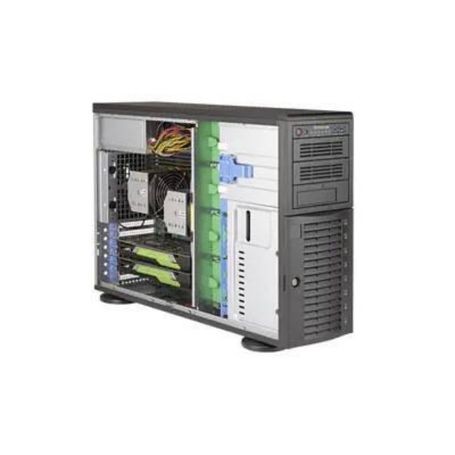

SUPERMICRO COMPUTER SYS-7049A-T Server Barebones View larger

SUPERMICRO COMPUTER SYS-7049A-T Server Barebones

SYS-7049A-T

New

CSE-743TS-1K26BP-SQ-Server Barebone-4U-Xeon-Gigabit Ethernet-Power Supply-Redundant-8 Hot-swap 2.5/3.5 SATA3(6Gbps)drive bays.3 Peripheral 5.25 drive bays
×




Detailed Specifications

Primary Information
System TypeServer Barebone
Cabinet Form Factor4U
Processor / TypeXeon
Processor / ManufacturerIntel
Processor / Max Supported Qty2
Mainboard / Chipset TypeIntel C621
RAM / TechnologyDDR4
RAM / Total Slots Qty16
RAM / Max Supported Size4 TB
Hard Drive / Size3.5"
Hard Drive / Interface TypeSATA-3; SAS 3
Hard Drive / Bays Qty8
RAID LevelRAID 0, 1, 5, 10
Data Link ProtocolGigabit Ethernet
Power / Device TypePower Supply - Redundant
Power / Provided (W)1200 Watt
Power / Voltage Required120-240 V
Interfaces & ConnectionsSATA: 10x SATA3 (6Gbps) ports, LAN : 2x RJ45 Gigabit Ethernet LAN ports, USB : 6 USB 3.0 ports (4 rear, 2 front). 2 USB 3.1 ports (rear). Video: 1x VGA port. Serial Port / Header : 2 Fast UART 16550 serial, 2 COM Ports (1 rear, 1 header), DOM 2 SuperDOM (Disk on Module) ports.
Expansion Bays Total (Free)8 Hot-swap 2.5"/3.5" SATA3 (6Gbps) drive bays. 3 Peripheral 5.25" drive bays
Expansion Slots Total (Free)4 PCI-E 3.0 x16 slots. 2 PCI-E 3.0 x8 slots
ModelCSE-743TS-1K26BP-SQ
Width7 Inch
Depth25.5 Inch
Height17.8 Inch
Enclosure ColorBlack
RoHSY

Special Feature
COOInquire
TAA complianceInquire

UNSPSC Code
UNSPSC Code43211502
