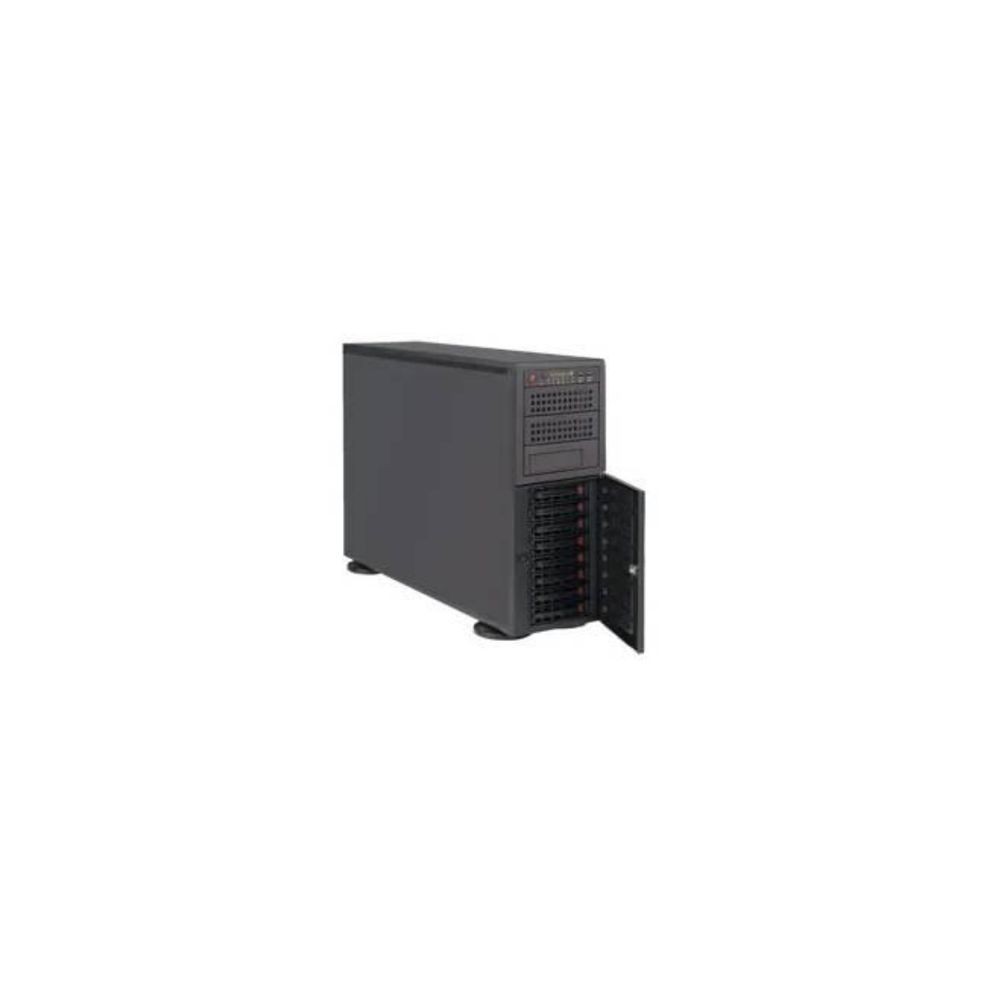

SUPERMICRO COMPUTER SYS-7048R-TR Server Barebones View larger

SUPERMICRO COMPUTER SYS-7048R-TR Server Barebones

SYS-7048R-TR

New

CSE-745TQ-R920B-Server Barebone-4U-Xeon-Gigabit Ethernet-Power Supply-Redundant-8x 3.5 Hot-swap SATA3 HDD Bays.2x 5.25 Peripheral Drive Bays.1x 5.25 Bay that fits 3.5 bay devices
×




Detailed Specifications

Primary Information
System TypeServer Barebone
Cabinet Form Factor4U
Processor / TypeXeon
Processor / ManufacturerIntel
Processor / Max Supported Qty2
Mainboard / Chipset TypeIntel C612
RAM / TechnologyDDR4
RAM / Total Slots Qty16
RAM / Max Supported Size2 TB
Hard Drive / Size3.5"
Hard Drive / Interface TypeSAS/SATA
Hard Drive / Bays Qty8
RAID LevelRAID 0, 1, 5, 10
Data Link ProtocolGigabit Ethernet
Power / Device TypePower Supply - Redundant
Power / Provided (W)920 Watt
Power / Voltage Required100-240 V
Interfaces & ConnectionsSATA : 8x SATA3 (6Gbps) ports, 2x SATA3 powered ports that support SATA DOM, LAN : 2x RJ45 Gigabit Ethernet LAN ports, 1x RJ45 Dedicated IPMI LAN port, USB : Rear USB: 2x USB 3.0 + 2x USB 2.0, Front USB: 2x USB 2.0, USB Header: 2x 3.0, 2x 2.0, 1x Type A, Video : 1x VGA port. Serial Port / Header : 1x COM/Serial.
Expansion Bays Total (Free)8x 3.5" Hot-swap SATA3 HDD Bays. 2x 5.25" Peripheral Drive Bays. 1x 5.25" Bay that fits 3.5" bay devices
Expansion Slots Total (Free)3 PCI-E 3.0 x16, 3 PCI-E 3.0 x8 slots
ModelCSE-745TQ-R920B
Width7 Inch
Depth25.5 Inch
Height17.2 Inch
Enclosure ColorBlack
RoHSY

Special Feature
COOInquire
TAA complianceInquire

UNSPSC Code
UNSPSC Code43211502
