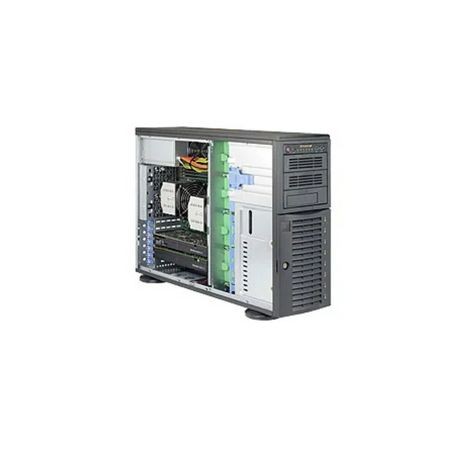

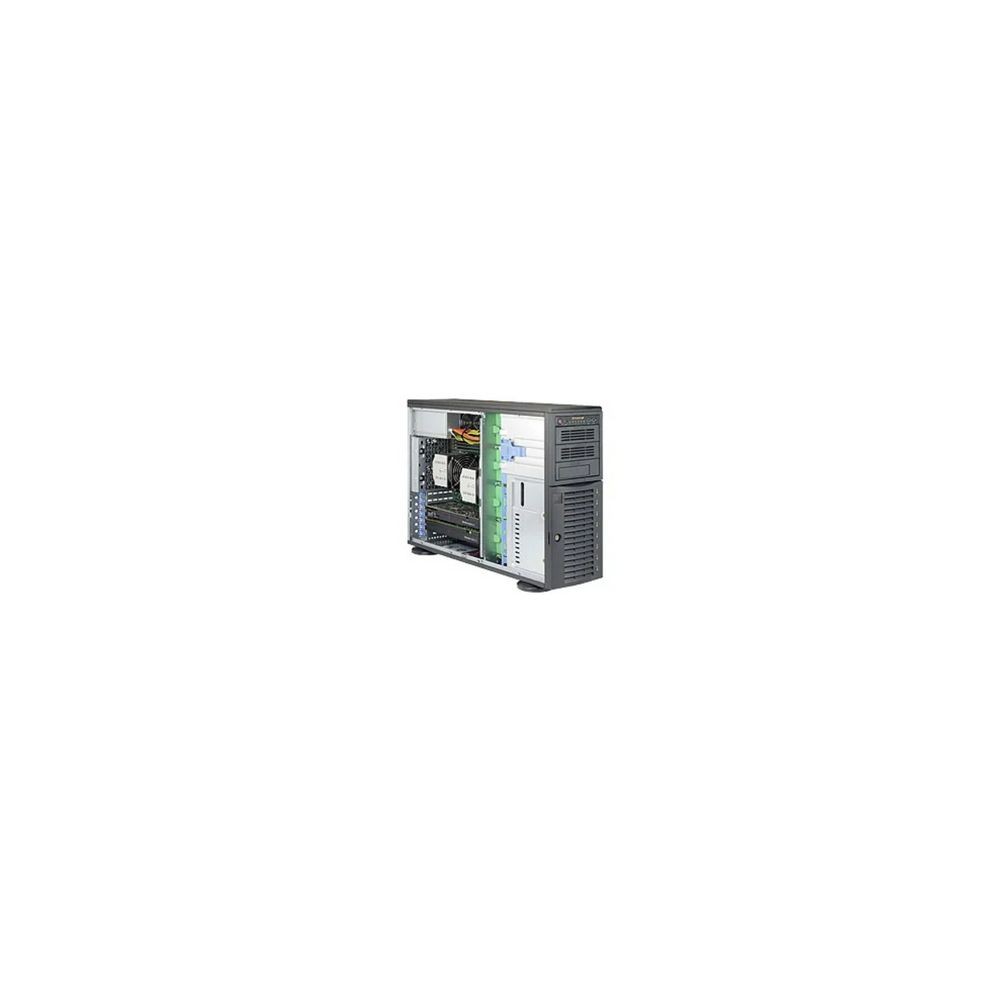

SUPERMICRO COMPUTER SYS-7048A-T Server Barebones View larger

SUPERMICRO COMPUTER SYS-7048A-T Server Barebones

SYS-7048A-T

New

SYS-7048A-T - Server Barebone - 4U - Xeon - Gigabit Ethernet - Power Supply - 10 SATA3 (6Gbps) ports, 2 RJ45 Gigabit Ethernet LAN ports, 6 USB 3.0 ports (4 rear + 2 via header), 5 USB 2.0...
×




Detailed Specifications

Primary Information
System TypeServer Barebone
Cabinet Form Factor4U
Processor / TypeXeon
Processor / ManufacturerIntel
Processor / Max Supported Qty2
Mainboard / Chipset TypeIntel C612
RAM / TechnologyDDR4
RAM / Total Slots Qty16
RAM / Max Supported Size2 TB
Hard Drive / Size3.5"
Hard Drive / Interface TypeSAS/SATA
Hard Drive / Bays Qty8
RAID LevelRAID 0, 1, 5, 10
Data Link ProtocolGigabit Ethernet
Power / Device TypePower Supply
Power / Provided (W)1.2 KW
Power / Voltage Required114.9-240 V
Interfaces & Connections10 SATA3 (6Gbps) ports, 2 RJ45 Gigabit Ethernet LAN ports, 6 USB 3.0 ports (4 rear + 2 via header), 5 USB 2.0 ports (2 rear + 2 via header + 1 Type A), 7.1 HD Audio with optical S/PDIF, 2 DOM (Disk on Module) power connectors
Expansion Slots Total (Free)3 PCI-E 3.0 x16 slots, 2 PCI-E 3.0 x8 slots, 1 PCI-E 2.0 x4 (in x8) slot supports Thunderbolt 2.0 AIC
ModelSYS-7048A-T
Width7 Inch
Depth25.5 Inch
Height17.8 Inch
Enclosure ColorBlack
FeaturesDual socket R3 (LGA 2011) supports Intel Xeon processor E5-2600 v4/ v3 family; QPI up to 9.6GT/s

Special Feature
COOInquire
TAA complianceInquire

UNSPSC Code
UNSPSC Code43211502
