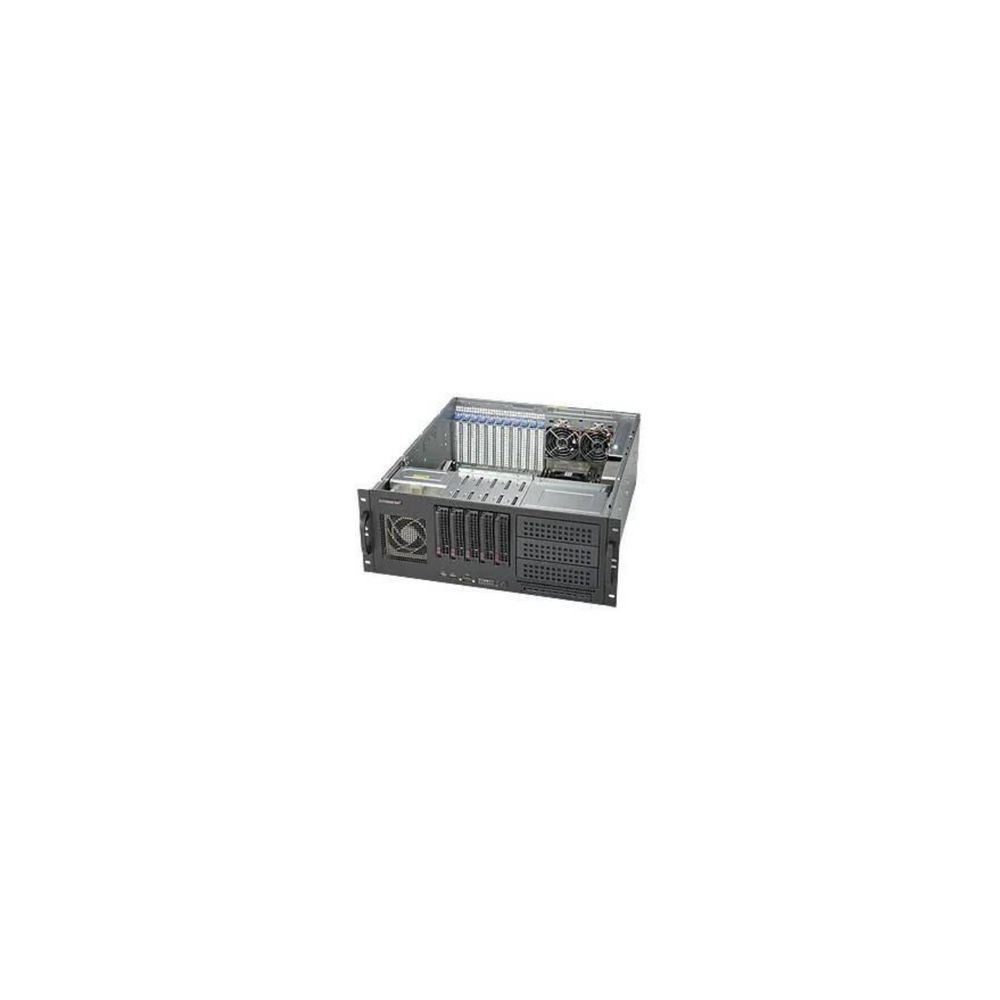

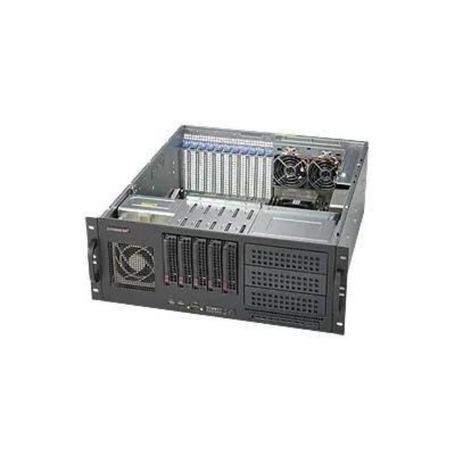

SUPERMICRO COMPUTER SYS-6048R-TXR Server Barebones View larger

SUPERMICRO COMPUTER SYS-6048R-TXR Server Barebones

SYS-6048R-TXR

New

CSE-842XTQ-R606B-Server Barebone-4U-Xeon-Gigabit Ethernet-Power Supply-Redundant-5x 3.5 Hot-swap Drive Trays.3x 5.25 Peripheral Drive Trays
×




Detailed Specifications

Primary Information
System TypeServer Barebone
Cabinet Form Factor4U
Processor / TypeXeon
Processor / ManufacturerIntel
Processor / Max Supported Qty2
Mainboard / Chipset TypeIntel C612
RAM / TechnologyDDR4
RAM / Total Slots Qty16
RAM / Max Supported Size2 TB
Hard Drive / Size3.5"
Hard Drive / Interface TypeSATA-3
Hard Drive / Bays Qty5
RAID LevelRAID 0, 1, 5, 10
Data Link ProtocolGigabit Ethernet
Power / Device TypePower Supply - Redundant
Power / Provided (W)600 Watt
Power / Voltage Required100-240V
Interfaces & ConnectionsSerial ATA : 10x SATA3 (6Gbps) ports. LAN : 2x RJ45 Gigabit Ethernet LAN ports. 1x RJ45 Dedicated IPMI LAN port. USB : 5x USB 3.0 ports (2 rear, 2 via header, 1 Type A), 4x USB 2.0 ports (2 rear, 2 via headers), Video : 1x VGA port. Serial Port / Header : 2x COM ports (1 rear, 1 Header). DOM : 2x SuperDOM (Disk on Module) ports. TPM : 1x TPM 1.2 20-pin Header.
Expansion Bays Total (Free)5x 3.5" Hot-swap Drive Trays. 3x 5.25" Peripheral Drive Trays
Expansion Slots Total (Free)10x PCI-E 3.0 x8 slots, 1x PCI-E 2.0 x4 (in x8) slot.
ModelCSE-842XTQ-R606B
Width17.2 Inch
Depth20.68 Inch
Height7 Inch
Enclosure ColorBlack
RoHSY

Special Feature
COOInquire
TAA complianceInquire

UNSPSC Code
UNSPSC Code43211502
