SUPERMICRO COMPUTER SYS-6028TP-HTTR Server Barebones View larger

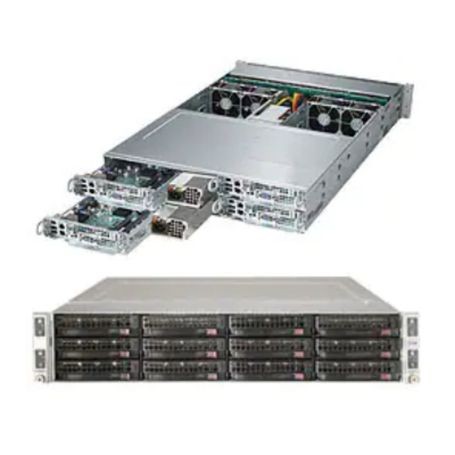

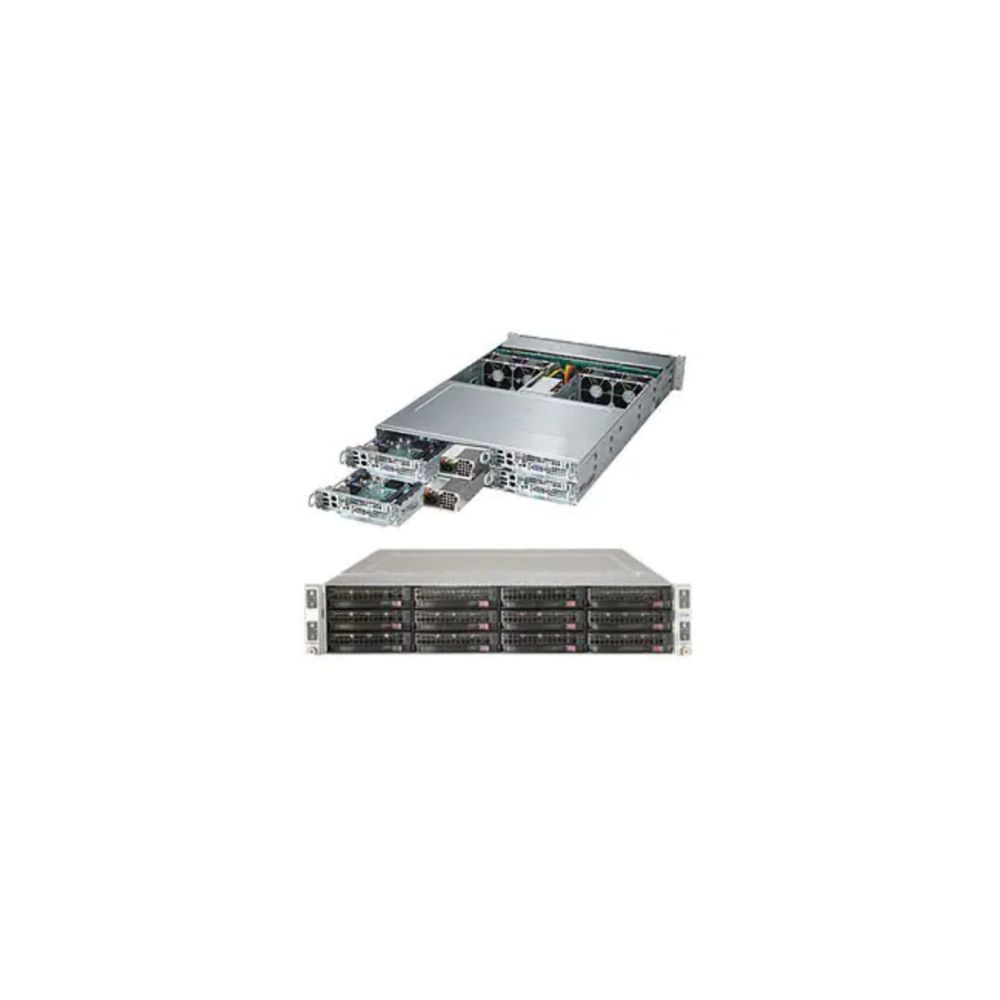

SUPERMICRO COMPUTER SYS-6028TP-HTTR Server Barebones

SYS-6028TP-HTTR

New

CSE-827HQ+-R2K04B -Server-2U-Xeon-Gigabit Ethernet-Power Supply-Redundant-3x 3.5 Hot-swap SATA HDD trays
×




Detailed Specifications

Primary Information
System TypeServer
Cabinet Form Factor2U
Processor / TypeXeon
Processor / ManufacturerIntel
Processor / Max Supported Qty2
Mainboard / Chipset TypeIntel C612
RAM / TechnologyDDR4
RAM / Total Slots Qty16
RAM / Max Supported Size2 TB
Hard Drive / Size3.5"
Hard Drive / Interface TypeSerial ATA
Hard Drive / Bays Qty3
Storage Controller TypePCI Express
RAID LevelRAID 0, 1, 10
Data Link ProtocolGigabit Ethernet
Power / Device TypePower Supply - Redundant
Power / Provided (W)2000 Watt
Power / Voltage Required200-240Vdc
Interfaces & ConnectionsSATA: 3x SATA3 (6Gbps) ports, LAN: 2x RJ45 10GBase-T ports, 1x RJ45 Dedicated IPMI LAN port, USB: 2x USB 3.0 ports total (2x rear), VGA: 1x VGA port, Serial Port / Header: 1x Fast UART 16550 port / 1 Header (internal), Others: 1x SATADOM support on the motherboard.
Expansion Bays Total (Free)3x 3.5" Hot-swap SATA HDD trays
Expansion Slots Total (Free)PCI-Express: 1x PCI-E 3.0 x16 Low-profile slot, 0 Slot: 1x "0 slot" (x16).
ModelCSE-827HQ+-R2K04B
Width17.25 Inch
Depth30.5 Inch
Height3.47 Inch
Enclosure ColorBlack
RoHSY

Special Feature
COOInquire
TAA complianceInquire

UNSPSC Code
UNSPSC Code43211502
