SUPERMICRO COMPUTER SYS-6018TR-T Server Barebones View larger

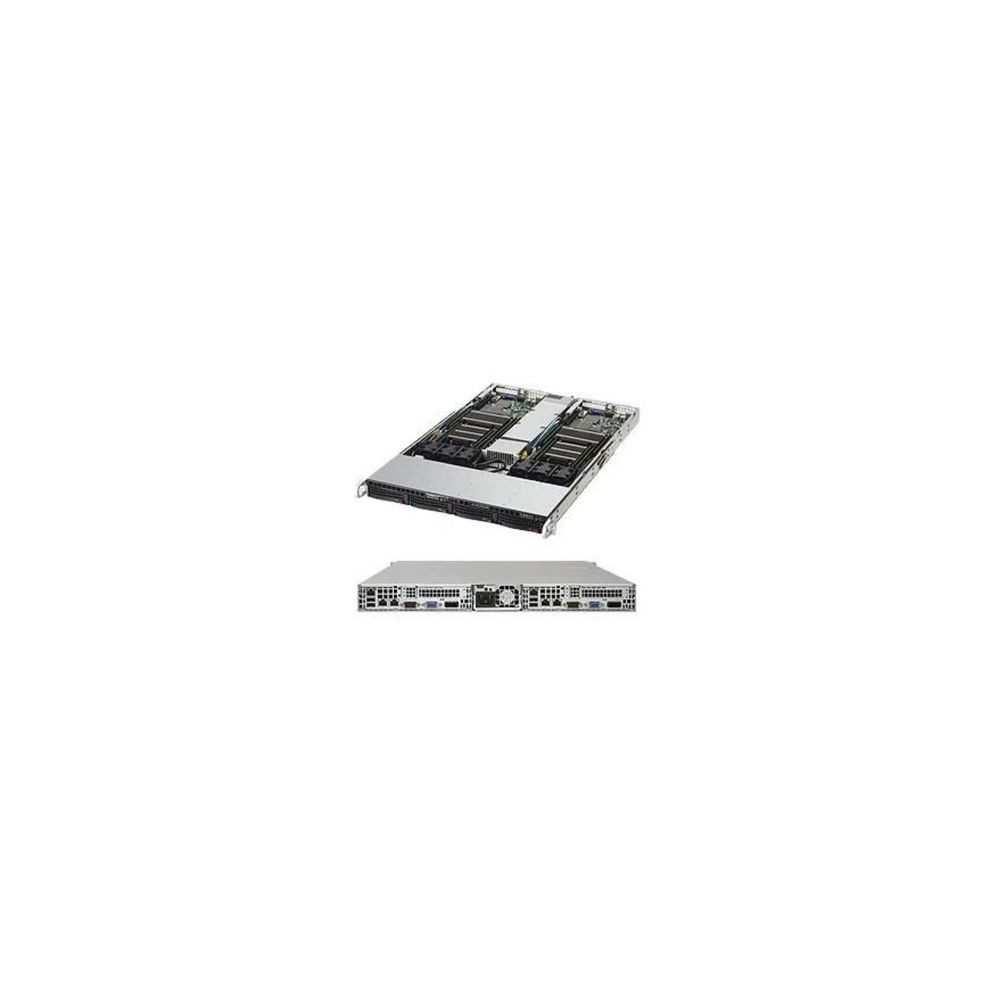

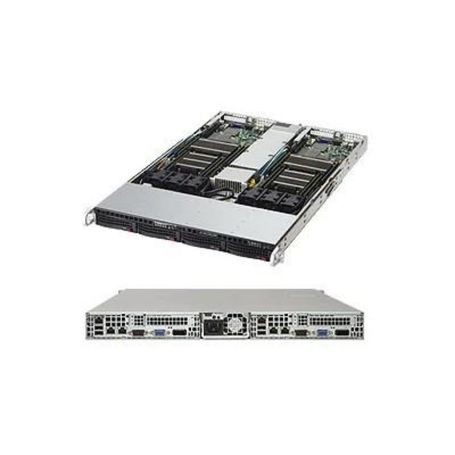

SUPERMICRO COMPUTER SYS-6018TR-T Server Barebones

SYS-6018TR-T

New

CSE-808TS-1K03B-Server Barebone-1U-Xeon-Gigabit Ethernet-Power Supply-Redundant-2x 3.5 Hot-swap drive bays
×




Detailed Specifications

Primary Information
System TypeServer Barebone
Cabinet Form Factor1U
Processor / TypeXeon
Processor / ManufacturerIntel
Processor / Max Supported Qty2
Mainboard / Chipset TypeIntel C612
RAM / TechnologyDDR4
RAM / Total Slots Qty8
RAM / Max Supported SizeUp to 1 TB
Hard Drive / Size3.5"
Hard Drive / Interface TypeSAS/SATA
Hard Drive / Bays Qty2
Storage Controller TypePCI Express
RAID LevelRAID 0, 1, 5, 10
Data Link ProtocolGigabit Ethernet
Power / Device TypePower Supply - Redundant
Power / Provided (W)1000 Watt
Power / Voltage Required100-240V
Interfaces & ConnectionsSerial ATA 10x SATA3 (6Gbps) ports, LAN 2x RJ45 Gigabit Ethernet LAN ports, 1x RJ45 Dedicated IPMI LAN port, USB 2x USB 2.0 ports (rear), Video 1x VGA port, Serial Port / Header 1x COM port (1 header), DOM 2x SuperDOM (Disk on Module) ports.
Expansion Bays Total (Free)2x 3.5" Hot-swap drive bays
Expansion Slots Total (Free)1x PCI-E 3.0 x16 (in x16) slot
ModelCSE-808TS-1K03B
Width17.2 Inch
Depth27.75 Inch
Height1.75 Inch
Enclosure ColorBlack
RoHSY

Special Feature
COOInquire
TAA complianceInquire

UNSPSC Code
UNSPSC Code43211502
