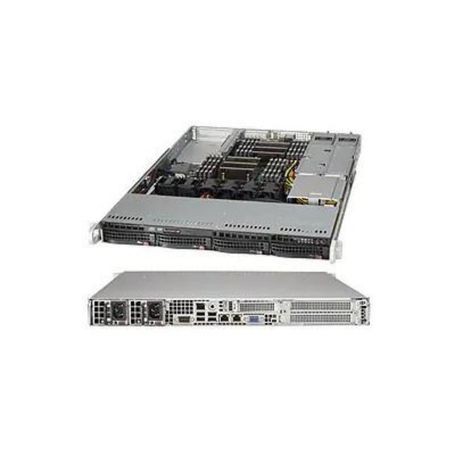

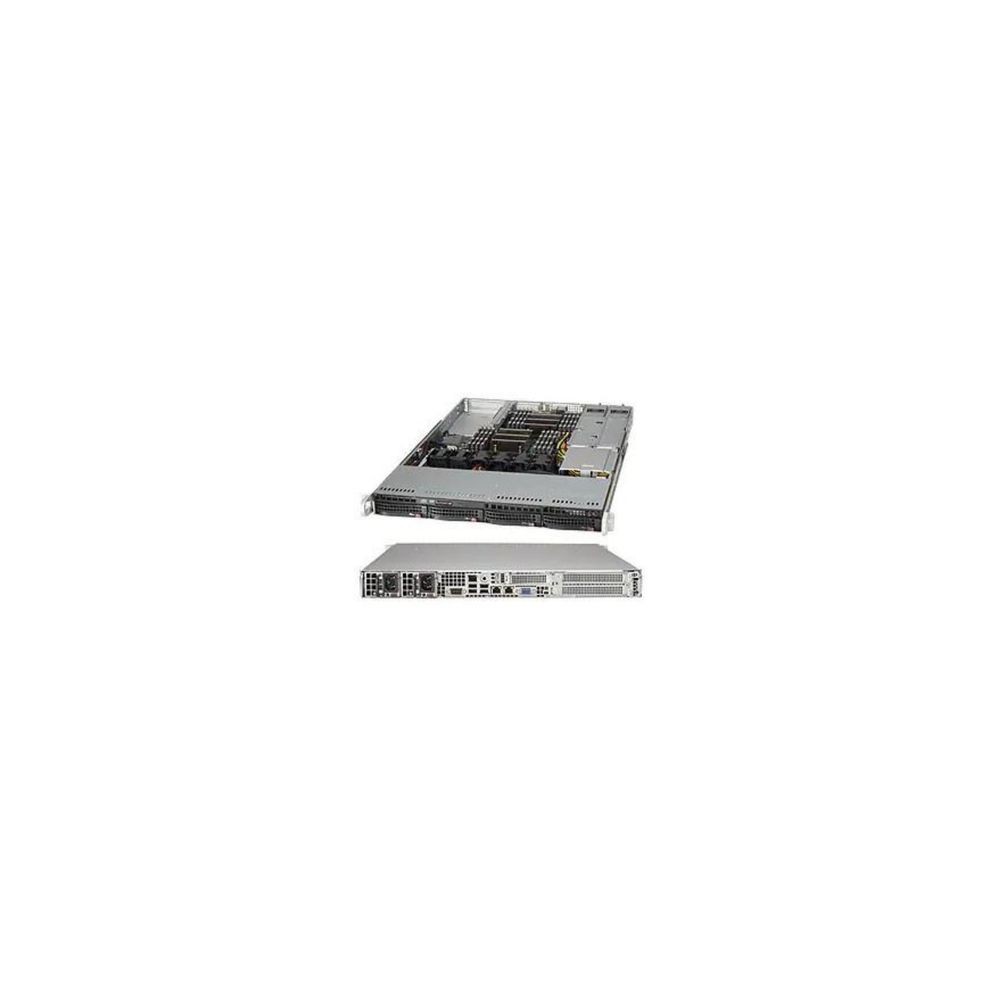

SUPERMICRO COMPUTER SYS-6018R-WTRT Server Barebones View larger

SUPERMICRO COMPUTER SYS-6018R-WTRT Server Barebones

SYS-6018R-WTRT

New

CSE-815TQ-R706WB-Server Barebone-1U-Xeon-Gigabit Ethernet-Power Supply-Redundant-4x 3.5 Hot-swap SAS/SATA HDD trays(ready for PCI-E storage controller card)
×




Detailed Specifications

Primary Information
System TypeServer Barebone
Cabinet Form Factor1U
Processor / TypeXeon
Processor / ManufacturerIntel
Processor / Max Supported Qty2
Mainboard / Chipset TypeIntel C612
RAM / TechnologyDDR4
RAM / Total Slots Qty16
RAM / Max Supported SizeUp to 2 TB
Hard Drive / Size3.5"
Hard Drive / Interface TypeSAS/SATA
Hard Drive / Bays Qty4
Storage Controller TypePCI Express
RAID LevelRAID 0, 1, 5, 10
Data Link ProtocolGigabit Ethernet
Power / Device TypePower Supply - Redundant
Power / Provided (W)750 Watt
Interfaces & ConnectionsSATA/SAS 10x SATA3 (6Gbps) ports, LAN 2x RJ45 10GBase-T ports, 1x RJ45 Dedicated IPMI LAN port, USB 6x USB 3.0 ports (4 rear + 2 via header), Video 1x VGA port, Serial Port / Header 1x Header, DOM 2x SuperDOM (Disk on Module) ports.
Expansion Bays Total (Free)4x 3.5" Hot-swap SAS / SATA HDD trays (ready for PCI-E storage controller card)
Expansion Slots Total (Free)2x PCI-E 3.0 x16 (Full-height, Half-length), 1x PCI-E 3.0 x8 Mezzanine for HBA cards.
ModelCSE-815TQ-R706WB
Width17.2 Inch
Depth25.6 Inch
Height1.7 Inch
Enclosure ColorBlack
RoHSY

Special Feature
COOInquire
TAA complianceInquire

UNSPSC Code
UNSPSC Code43211502
