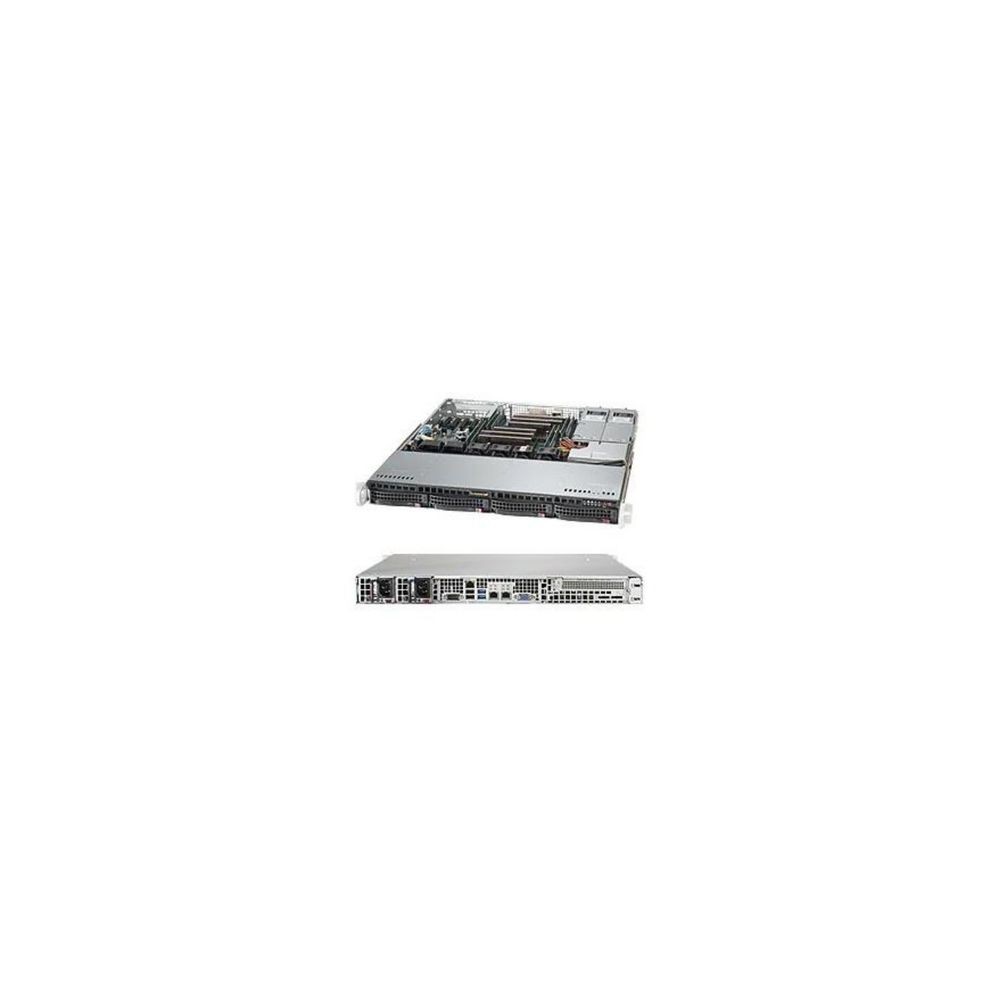

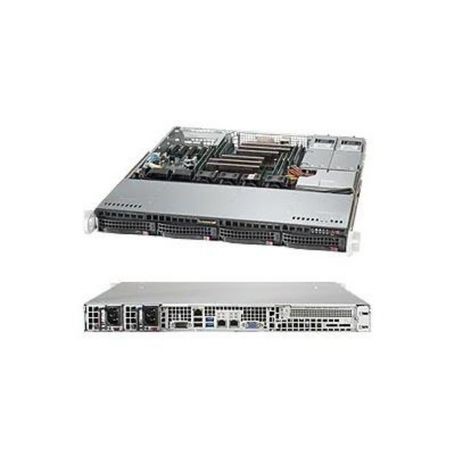

SUPERMICRO COMPUTER SYS-6018R-MTR Server Barebones View larger

SUPERMICRO COMPUTER SYS-6018R-MTR Server Barebones

SYS-6018R-MTR

New

SuperServer 6018R-MTR (Black) - 1U Rackmount - Gigabit Ethernet - Intel Xeon processor E5-2600 v4/ v3 family - 8x 288-pin DDR4 DIMM slots - Intel C612 chipset - 4x 3.5 Hot-swap SATA3...
×




Detailed Specifications

Primary Information
System TypeServer Barebone
Cabinet Form Factor1U
Processor / TypeXeon
Processor / ManufacturerIntel
Mainboard / Chipset TypeIntel C612
RAM / TechnologyDDR4
RAM / Total Slots Qty8
RAM / Max Supported Size1 TB
Hard Drive / Size3.5"
Hard Drive / Interface TypeSATA 3
Hard Drive / Bays Qty4
RAID LevelRAID 0, 1, 5, 10
Data Link ProtocolGigabit Ethernet
Power / Device TypePower Supply
Power / Provided (W)400 Watt
Power / Voltage Required100-240V
Interfaces & Connections2x RJ45 Gigabit Ethernet LAN ports; 1x RJ45 Dedicated IPMI LAN port; 4x USB 3.0 ports (2 rear, 2 headers); 5x USB 2.0 ports(2 rear, 2 headers, 1 Type A); 1x VGA port; 1x COM ports (1 rear, 1 header); 2x SuperDOM (Disk on Module) ports
Expansion Slots Total (Free)1x PCI-E 3.0 x8 (FHHL) slot
ModelCSE-813MFTQ-R400CB
Width17.2 Inch
Depth19.8 Inch
Height1.7 Inch
Enclosure ColorBlack
Features1x PCI-E 3.0 x8 (FHHL) slot; 4x 3.5" Hot-swap SATA3 Drive Bays; Intel i210 Dual-Port 1GbE LAN; 400W Redundant Power Supplies Gold Level Certified; IPMI 2.0 + KVM with Dedicated LAN

Special Feature
COOInquire
TAA complianceInquire

UNSPSC Code
UNSPSC Code43211502
