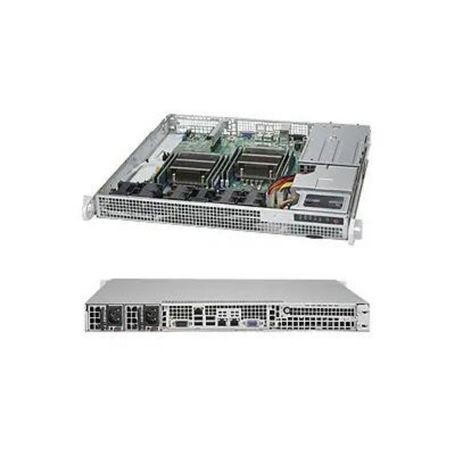

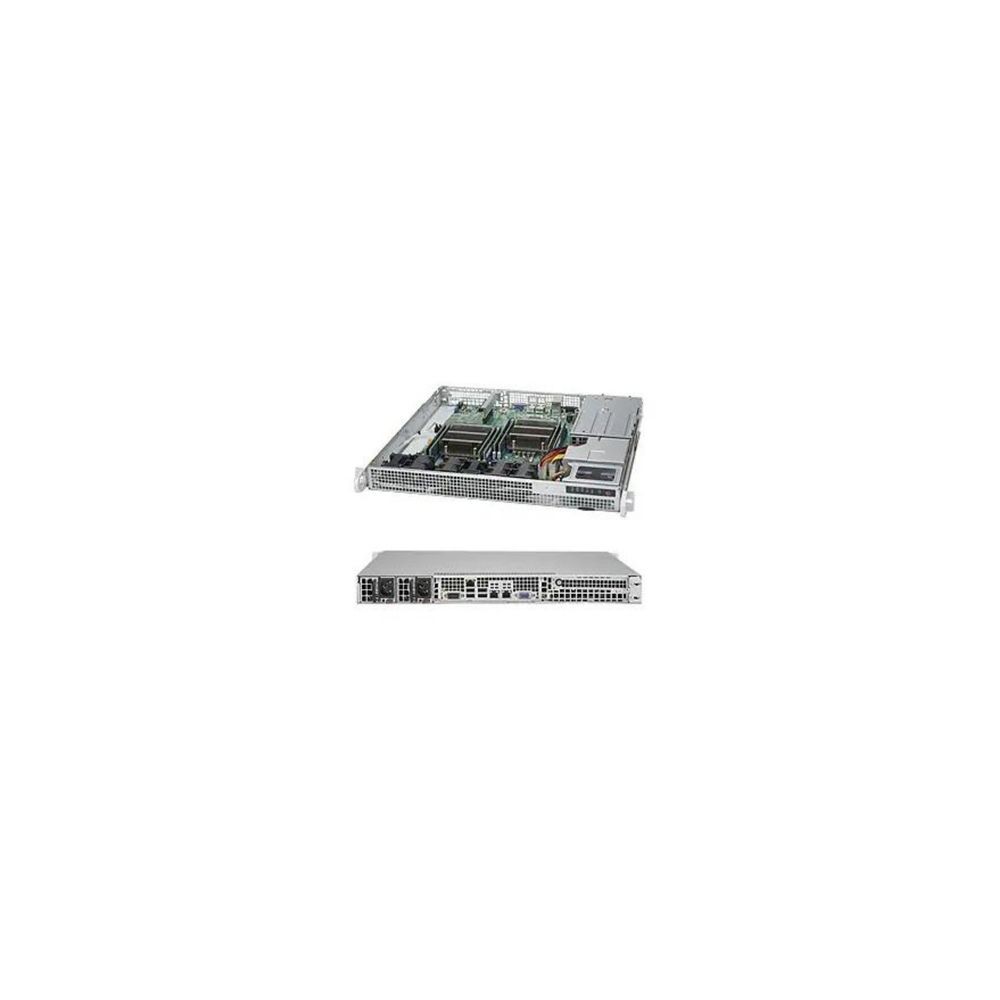

SUPERMICRO COMPUTER SYS-6018R-MDR Server Barebones View larger

SUPERMICRO COMPUTER SYS-6018R-MDR Server Barebones

SYS-6018R-MDR

New

SuperServer 6018R-MDR (Silver)- 1U Rackmount - Gigabit Ethernet - Intel Xeon processor E5-2600 v4/ v3 family - 8x 288-pin DDR4 DIMM slots - Intel C612 chipset - 2x 2.5IN Fixed SATA3 Drive...
×




Detailed Specifications

Primary Information
System TypeServer Barebone
Cabinet Form Factor1U
Processor / TypeXeon
Processor / ManufacturerIntel
Mainboard / Chipset TypeIntel C612
RAM / TechnologyDDR4
RAM / Total Slots Qty8
RAM / Max Supported Size1 TB
Hard Drive / Size2.5"
Hard Drive / Interface TypeSATA 3
Hard Drive / Bays Qty2
RAID LevelRAID 0, 1
Data Link ProtocolGigabit Ethernet
Power / Device TypePower Supply
Power / Provided (W)400 Watt
Power / Voltage Required100-240V
Interfaces & Connections2x RJ45 Gigabit Ethernet LAN ports; 1x RJ45 Dedicated IPMI LAN port; 7x USB 2.0 ports(4 rear, 2 headers, 1 Type A); 1x VGA port; 2x COM ports (1 rear, 1 header); 2x SuperDOM (Disk on Module) ports Management
Expansion Slots Total (Free)1x PCI-E 3.0 x8 (FHHL) slot
ModelCSE-514-R400C
Width17.2 Inch
Depth16.9 Inch
Height1.7 Inch
Enclosure ColorSilver
Features1x PCI-E 3.0 x8 (FHHL) slot; 2x 2.5" Fixed SATA3 Drive Bays; Intel i350 Dual-Port 1GbE LAN; 400W Redundant Power Supplies Gold Level Certified; 2x SuperDOM (Disk on Module) ports; IPMI 2.0 + KVM with Dedicated LAN

Special Feature
COOInquire
TAA complianceInquire

UNSPSC Code
UNSPSC Code43211502
