SUPERMICRO COMPUTER SYS-6017R-TDLF Server Barebones View larger

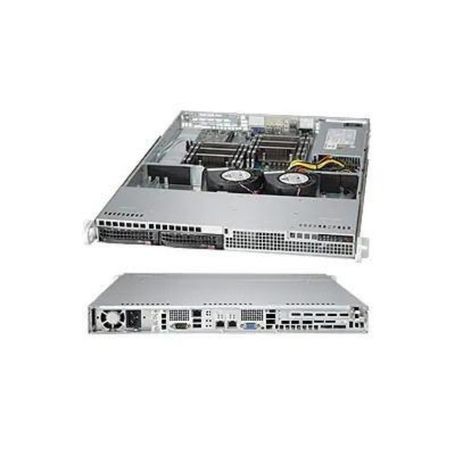

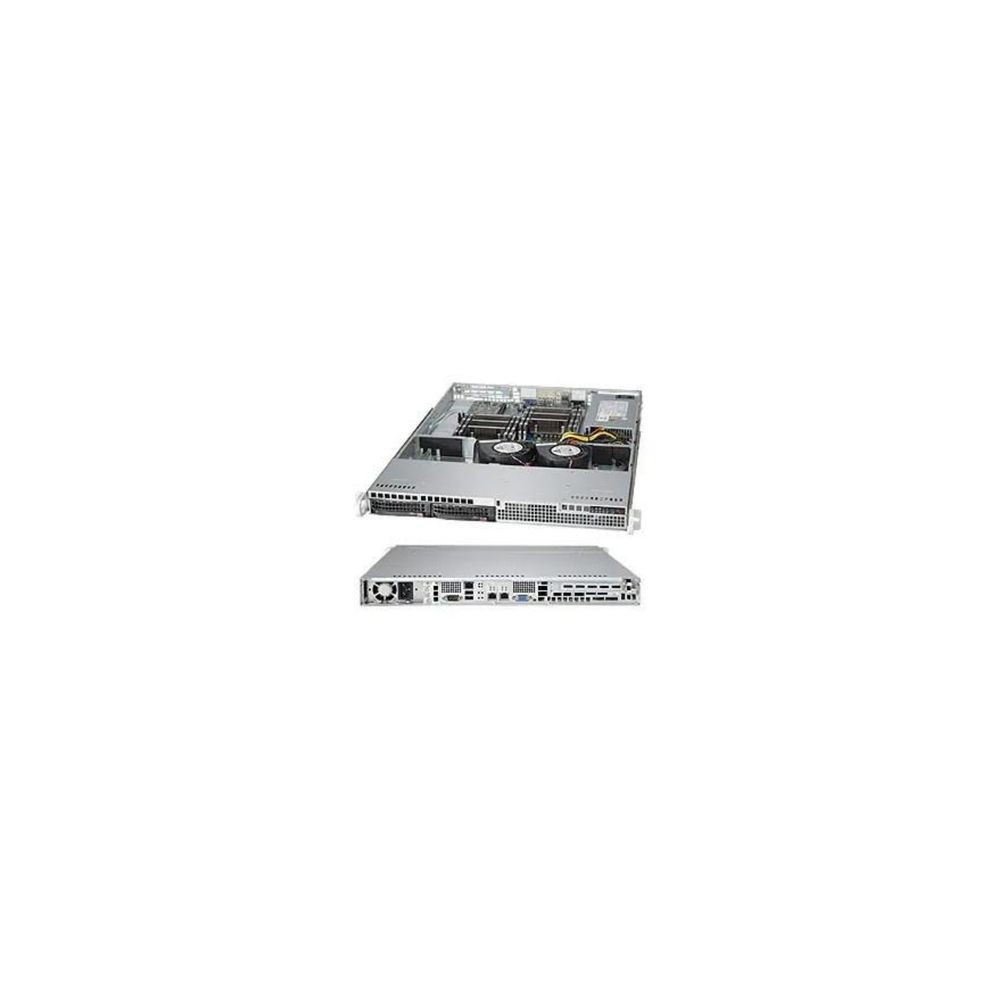

SUPERMICRO COMPUTER SYS-6017R-TDLF Server Barebones

SYS-6017R-TDLF

New

CSE-813LT-350CB-Server Barebone-1U-Xeon-Gigabit Ethernet-Power Supply-Redundant-2x 3.5 Hot-swap SATA HDD trays
×




Detailed Specifications

Primary Information
System TypeServer Barebone
Cabinet Form Factor1U
Processor / TypeXeon
Processor / ManufacturerIntel
Processor / Max Supported Qty2
Mainboard / Chipset TypeIntel C602
RAM / TechnologyDDR3
RAM / Total Slots Qty8
RAM / Max Supported SizeUp to 256 GB
Hard Drive / Size3.5"
Hard Drive / Interface TypeSerial ATA
Hard Drive / Bays Qty2
Storage Controller TypePCI Express
RAID LevelRAID 0, 1
Data Link ProtocolGigabit Ethernet
Power / Device TypePower Supply - Redundant
Power / Provided (W)350 Watt
Power / Voltage Required100-240V
Interfaces & ConnectionsSerial ATA 2x SATA 3.0 ports (6Gbps), LAN 2x RJ45 Gigabit Ethernet LAN ports, 1x RJ45 Dedicated IPMI LAN port, USB 4x USB 2.0 ports (2 rear, 2 via header), VGA 1x VGA port, Serial Port / Header 1x Fast UART 16550 port (rear).
Expansion Bays Total (Free)2x 3.5" Hot-swap SATA HDD trays
Expansion Slots Total (Free)1x PCI-E 3.0 x16 Full-height, Half-length
ModelCSE-813LT-350CB
Width17.2 Inch
Depth25.6 Inch
Height1.7 Inch
Enclosure ColorBlack
RoHSY

Special Feature
COOInquire
TAA complianceInquire

UNSPSC Code
UNSPSC Code43211502
