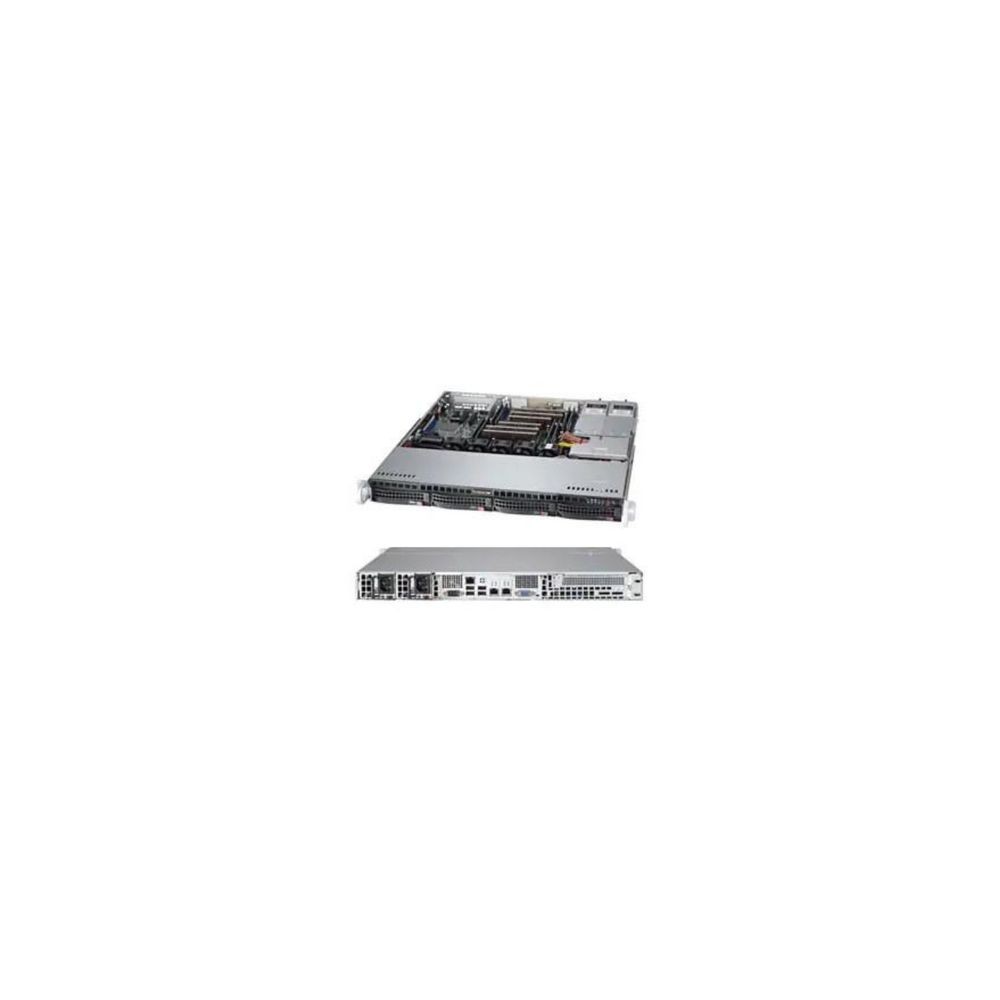

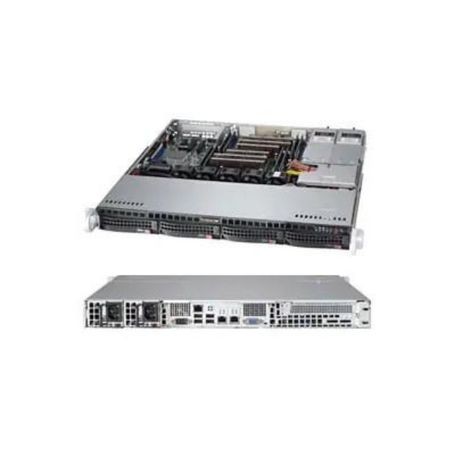

SUPERMICRO COMPUTER SYS-6017R-M7UF Server Barebones View larger

SUPERMICRO COMPUTER SYS-6017R-M7UF Server Barebones

SYS-6017R-M7UF

New

CSE-813MFTQ-400CB-Server Barebone-1U-Xeon-Gigabit Ethernet-Power Supply-Redundant-4x 3.5 Hot-swap SAS/SATA HDD trays
×




Detailed Specifications

Primary Information
System TypeServer Barebone
Cabinet Form Factor1U
Processor / TypeXeon
Processor / ManufacturerIntel
Processor / Max Supported Qty2
Mainboard / Chipset TypeIntel C602J
RAM / TechnologyDDR3
RAM / Total Slots Qty8
RAM / Max Supported SizeUp to 512 GB
Hard Drive / Size3.5"
Hard Drive / Interface TypeSAS/SATA
Hard Drive / Bays Qty4
Storage Controller TypePCI Express
RAID LevelRAID 0, 1, 5, 10
Data Link ProtocolGigabit Ethernet
Power / Device TypePower Supply - Redundant
Power / Provided (W)400 Watt
Power / Voltage Required100-240V
Interfaces & ConnectionsSATA 2 SATA 3.0 ports (6Gbps), 4 SATA 2.0 ports (3Gbps), SAS 8 SAS ports, LAN 2x RJ45 Gigabit Ethernet LAN ports, 1x RJ45 Dedicated IPMI LAN port, USB 7x USB 2.0 ports total, (4 rear + 2 via header + 1 Type A), VGA1x VGA port, Serial Port / Header 2x Fast UART 16550 serial COM ports.
Expansion Bays Total (Free)4x 3.5" Hot-swap SAS/SATA HDD trays
Expansion Slots Total (Free)1x PCI-E 3.0 x8 Full-height Half-length
ModelCSE-813MFTQ-400CB
Width17.2 Inch
Depth19.8 Inch
Height1.7 Inch
Enclosure ColorBlack
RoHSY

Special Feature
COOInquire
TAA complianceInquire

UNSPSC Code
UNSPSC Code43211502
