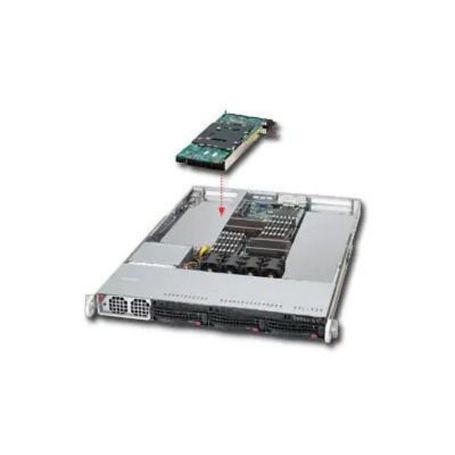

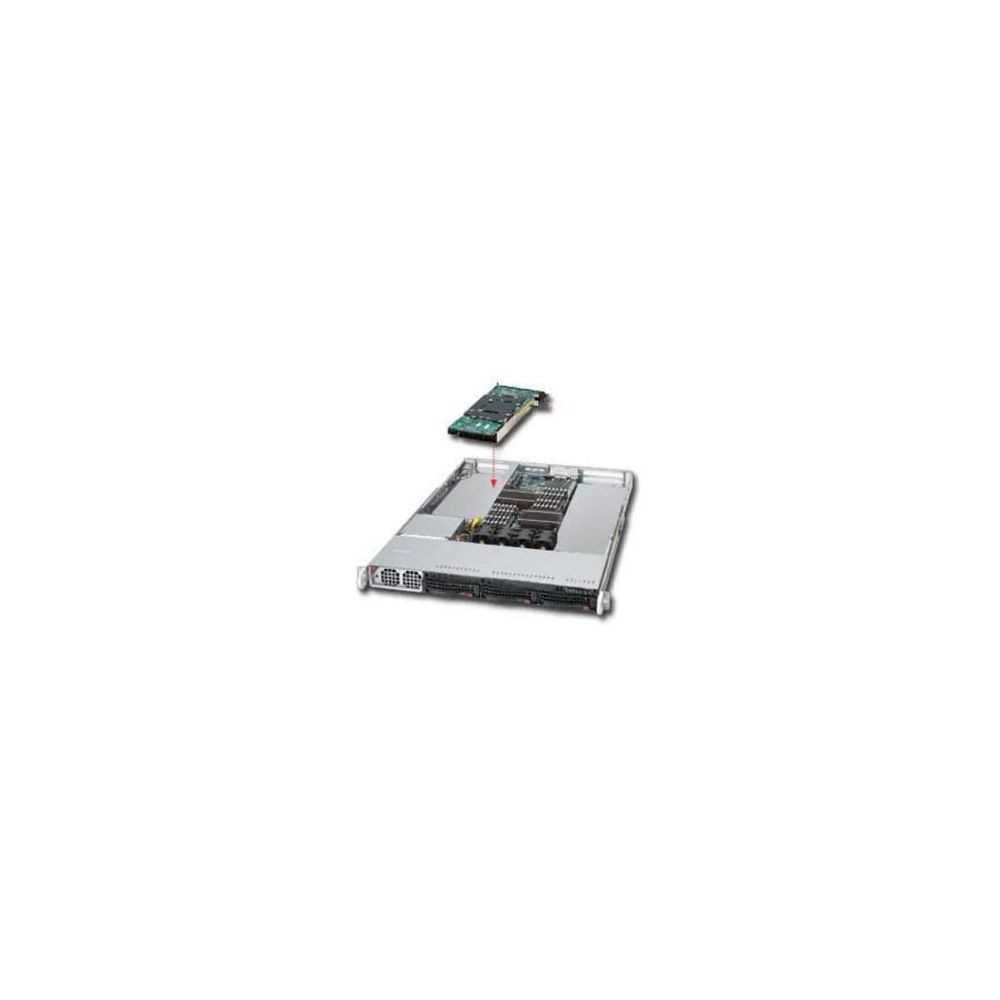

SUPERMICRO COMPUTER SYS-6016T-GIBXF Server Barebones View larger

SUPERMICRO COMPUTER SYS-6016T-GIBXF Server Barebones

SYS-6016T-GIBXF

New

CSE-818G-1400B-Server Barebone-1U-Xeon-Gigabit Ethernet-Power Supply-Redundant-3x 3.5 Hot-swap drive bays
×




Detailed Specifications

Primary Information
System TypeServer Barebone
Cabinet Form Factor1U
Processor / TypeXeon
Processor / ManufacturerIntel
Processor / Max Supported Qty2
Mainboard / Chipset TypeIntel 5520
RAM / TechnologyDDR3
RAM / Total Slots Qty12
RAM / Max Supported SizeUp to 192 GB
Hard Drive / Size3.5"
Hard Drive / Interface TypeSAS/SATA
Hard Drive / Bays Qty3
Storage Controller TypePCI Express
RAID LevelRAID 0, 1, 5, 10
Data Link ProtocolGigabit Ethernet
Power / Device TypePower Supply - Redundant
Power / Provided (W)1400 Watt
Power / Voltage Required180-240V
Interfaces & ConnectionsSerial ATA Six Serial ATA ports, Six SATA hard drives supported, LAN 2x RJ45 LAN ports, 1x RJ45 Dedicated IPMI LAN port, USB 2 rear + 1 header (2 Ports), 4 total USB ports, 2.0 Compliant / 1.1 Compliant, VGA 1x VGA Port, Serial Port 1 Fast UART 16550 serial port, Infiniband 1 External QSFP Infiniband Connector.
Expansion Bays Total (Free)3x 3.5" Hot-swap drive bays
Expansion Slots Total (Free)1 (x16) PCI-E (FHFL)
ModelCSE-818G-1400B
Width17.2 Inch
Depth28.2 Inch
Height1.7 Inch
Enclosure ColorBlack
RoHSY

Special Feature
COOInquire
TAA complianceInquire

UNSPSC Code
UNSPSC Code43211502
