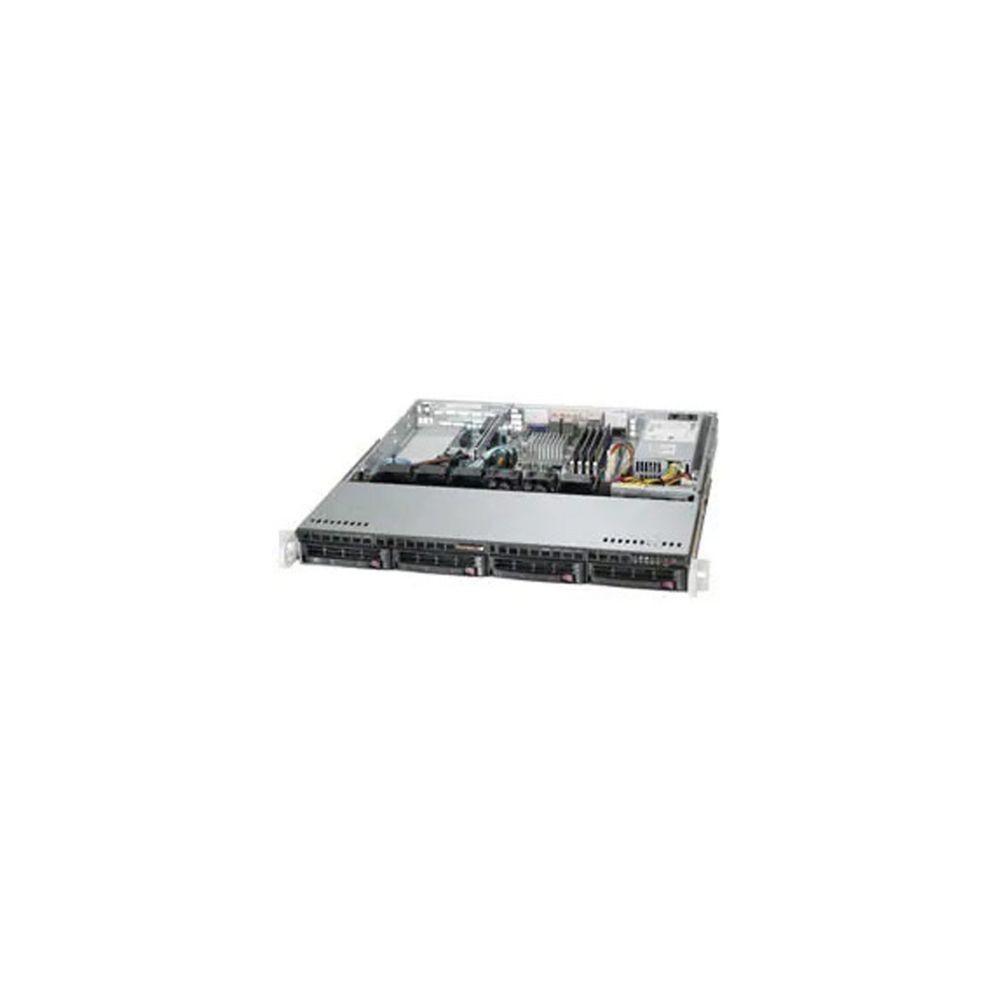

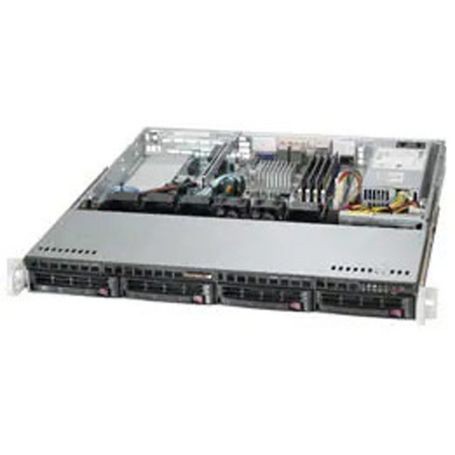

SUPERMICRO COMPUTER SYS-5018A-MLHN4 Server Barebones View larger

SUPERMICRO COMPUTER SYS-5018A-MLHN4 Server Barebones

SYS-5018A-MLHN4

New

Super Server-Intel, CSE-813MTQ-202CB, A1SAM-2550F, Black
×




Detailed Specifications

Primary Information
System TypeServer
ModelSYS-5018A-MLHN4
Cabinet Form Factor1U
Processor / ManufacturerIntel
Processor / TypeAtom
Processor / Clock Speed2.4 GHz
Processor / NumberC2550
Multi-Core TechnologyQuad-Core
Cache Memory Installed Size2 MB
RAM / TechnologyDDR3
RAM Form FactorUDIMM 240-pin
RAM / Total Slots Qty4
Hot-Swap Bays Qty4
Controller Interface TypeSATA 6 Gb/s
Data Link ProtocolGigabit Ethernet
Graphics ControllerAspeed AST2400
Power / Voltage Required100 - 240V, 50-60Hz
Interfaces & ConnectionsSerial ATA 2x SATA3 (6Gbps) ports 4x SATA2 (3Gbps) ports LAN 4x RJ45 Gigabit Ethernet LAN ports 1x RJ45 Dedicated IPMI LAN port USB 7x USB 2.0 ports (4 rear, 1 Type A, 2 via header) Serial Port 2x Fast UART 16550 Serial Port (1 rear, 1 via header) DOM 1x SATA DOM (Disk on Module) power connector VGA 1x VGA Port
Width1.7 Inch
Depth17.2 Inch
Height19.8 Inch
Enclosure ColorBlack
Min Operating Temperature10 Celsius
Max Operating Temperature35 Celsius
Humidity Range Operating8% to 90% (non-condensing)

Special Feature
RoHSY
COOInquire
TAA complianceInquire

Processor
Processor / ManufacturerIntel
Processor / Clock Speed2.4 GHz
Processor / TypeAtom
Processor / NumberC2550
Multi-Core TechnologyQuad-Core
Cache Memory Installed Size2 MB

RAM
RAM / TechnologyDDR3
RAM Form FactorUDIMM 240-pin
RAM / Total Slots Qty4

Storage
Hot-Swap Bays Qty4

Networking
Data Link ProtocolGigabit Ethernet

Video
Graphics ControllerAspeed AST2400

Power
Power / Voltage Required100 - 240V, 50-60Hz

Expansion
Interfaces & ConnectionsSerial ATA 2x SATA3 (6Gbps) ports 4x SATA2 (3Gbps) ports LAN 4x RJ45 Gigabit Ethernet LAN ports 1x RJ45 Dedicated IPMI LAN port USB 7x USB 2.0 ports (4 rear, 1 Type A, 2 via header) Serial Port 2x Fast UART 16550 Serial Port (1 rear, 1 via header) DOM 1x SATA DOM (Disk on Module) power connector VGA 1x VGA Port

Dimensions&Miscellaneous
Width1.7 Inch
Depth17.2 Inch
Height19.8 Inch

UNSPSC Code
UNSPSC Code43211502
