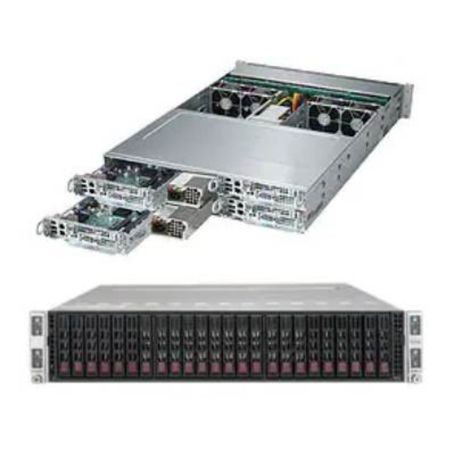

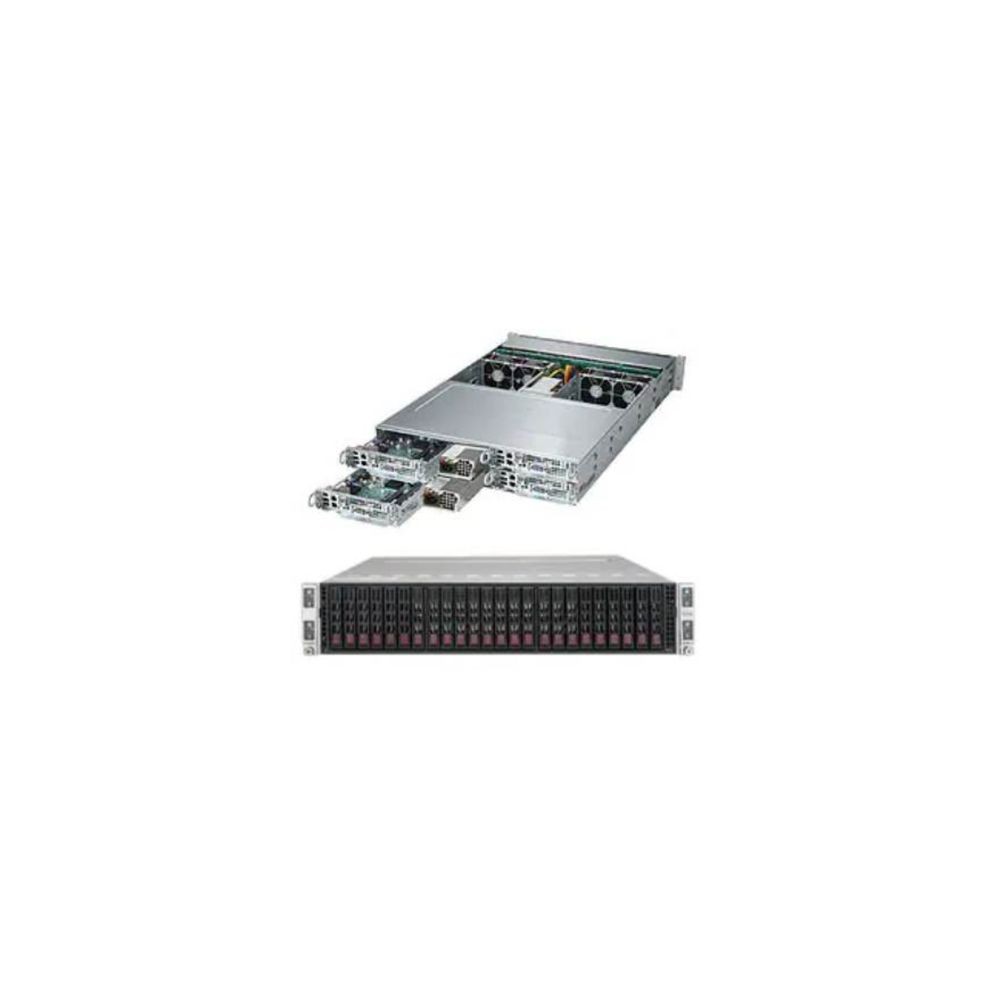

SUPERMICRO COMPUTER SYS-2028TP-HC1TR Server Barebones View larger

SUPERMICRO COMPUTER SYS-2028TP-HC1TR Server Barebones

SYS-2028TP-HC1TR

New

CSE-217HQ+-R2K04B-Server Barebone-2U-Xeon-Gigabit Ethernet-Power Supply-Redundant-6x 2.5 Hot-swap SAS/SATA HDD trays
×




Detailed Specifications

Primary Information
System TypeServer Barebone
Cabinet Form Factor2U
Processor / TypeXeon
Processor / ManufacturerIntel
Processor / Max Supported Qty2
Mainboard / Chipset TypeIntel C612
RAM / TechnologyDDR4
RAM / Total Slots Qty16
RAM / Max Supported Size2 TB
Hard Drive / Size2.5"
Hard Drive / Interface TypeSAS/SATA
Hard Drive / Bays Qty6
Storage Controller TypePCI Express; SAS 3
RAID LevelRAID 0, 1, 5, 6, 10, 50, 60
Data Link ProtocolGigabit Ethernet
Power / Device TypePower Supply - Redundant
Interfaces & Connections6 SAS3 (12Gbps) ports, 2x RJ45 10GBase-T ports 1x RJ45 Dedicated IPMI LAN port, 2 USB 3.0 ports (rear), 1 VGA port, 1 Fast UART 16550 port / 1 Header (internal),
Expansion Bays Total (Free)6x 2.5" Hot-swap SAS/SATA HDD trays
Expansion Slots Total (Free)1x PCI-E 3.0 x16 Low-profile slot
ModelCSE-217HQ+-R2K04B
Width17.25 Inch
Depth28.75 Inch
Height3.47 Inch
Enclosure ColorBlack
Features1. Dual socket R3 (LGA 2011) supports Intel Xeon processor E5-2600 v4/ v3 family; QPI up to 9.6GT/s 2. Up to 2TB ECC 3DS LRDIMM , up to DDR4- 2400MHz ; 16x DIMM slots 3. 1x PCI-E 3.0 x16 slot 4. Intel X540 Dual port 10GBase-T LAN 5. Integrated IPMI 2.0 with KVM and Dedicated LAN 6. 6x 2.5" Hot-swap SAS/SATA HDD Bays 7. Broadcom 3108 SAS3 controller (6 ports); RAID 0, 1, 5, 6, 10, 50, 60 8. 2000W Redundant Power Supplies
RoHSY

Special Feature
COOInquire
TAA complianceInquire

UNSPSC Code
UNSPSC Code43211502
