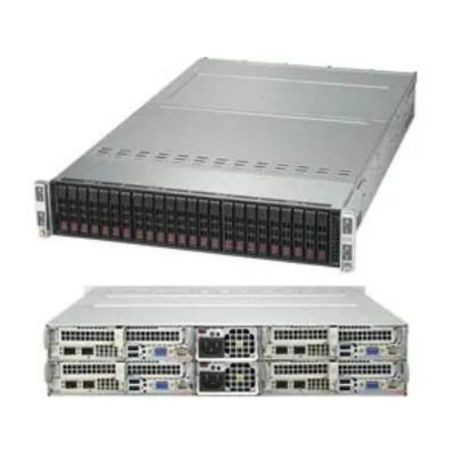

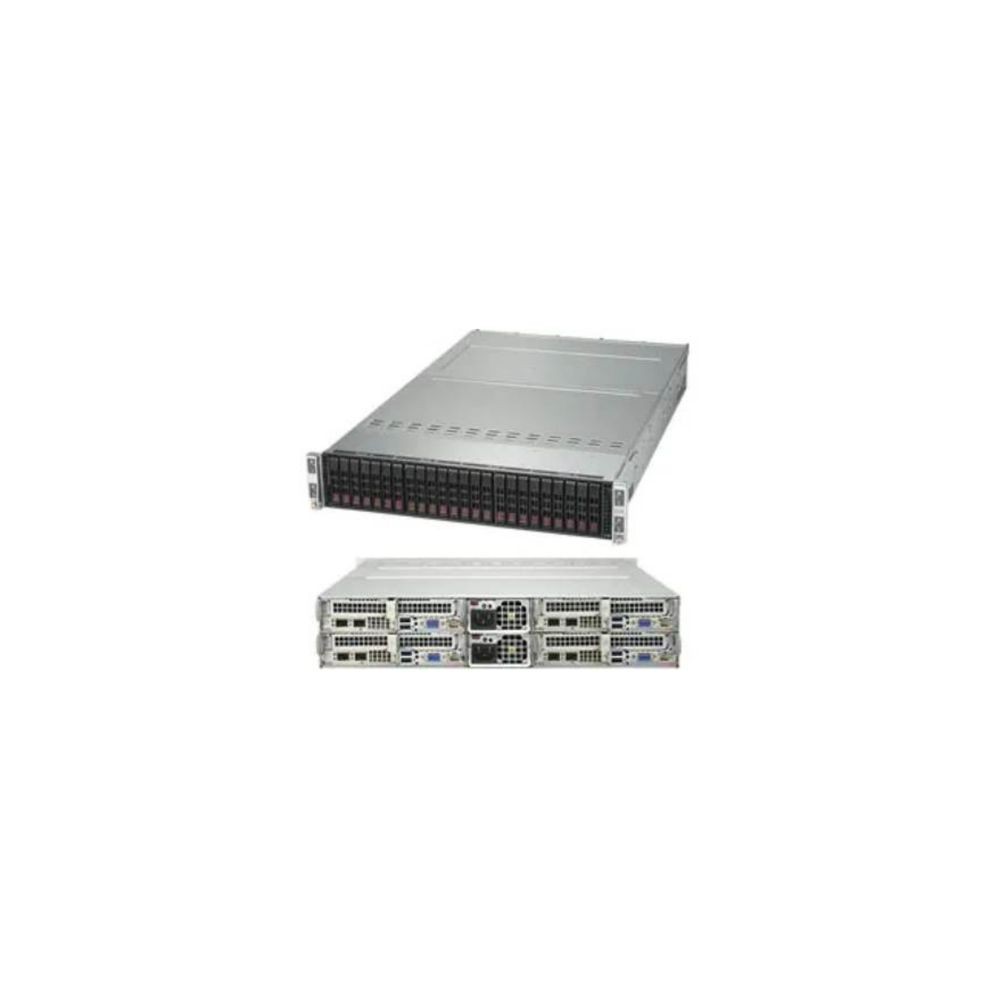

SUPERMICRO COMPUTER SYS-2028TP-HC1R-SIOM Server Barebones View larger

SUPERMICRO COMPUTER SYS-2028TP-HC1R-SIOM Server Barebones

SYS-2028TP-HC1R-SIOM

New

CSE-217HQ+-R2K04B2-Server Barebone-2U-Xeon-Gigabit Ethernet-Power Supply-Redundant-6 Hot-swap 2.5 SAS/SATA HDD trays
×




Detailed Specifications

Primary Information
System TypeServer Barebone
Cabinet Form Factor2U
Processor / TypeXeon
Processor / ManufacturerIntel
Processor / Max Supported Qty2
Mainboard / Chipset TypeIntel C612
RAM / TechnologyDDR4
RAM / Total Slots Qty16
RAM / Max Supported Size2 TB
Hard Drive / Size2.5"
Hard Drive / Interface TypeSAS/SATA
Hard Drive / Bays Qty6
Storage Controller TypePCI Express; SAS 3
RAID LevelJBOD, RAID 0, 1, 5, 6, 10, 50, 60
Data Link ProtocolGigabit Ethernet
Power / Device TypePower Supply - Redundant
Interfaces & Connections6 SAS3 (12Gbps) ports, 1 RJ45 Dedicated IPMI LAN port, 2 USB 3.0 ports (rear), 1 VGA port, 1 Fast UART 16550 port / 1 Header (internal),
Expansion Bays Total (Free)6 Hot-swap 2.5" SAS/SATA HDD trays
Expansion Slots Total (Free)1 PCI-E 3.0 (x16) Low-profile slot 1 PCI-E 3.0 (x8) Low-profile slot 1 SIOM card support
ModelCSE-217HQ+-R2K04B2
Width17.25 Inch
Depth28.75 Inch
Height3.47 Inch
Enclosure ColorBlack
Features1. Dual socket R3 (LGA 2011) supports Intel Xeon processor E5-2600 v4/ v3 family; QPI up to 9.6GT/s 2. Up to 2TB ECC 3DS LRDIMM , up to DDR4- 2400MHz ; 16x DIMM slots 3. 1 PCI-E 3.0 x16 (LP), 1 PCI-E 3.0 x8 (LP), 1 SIOM card support 4. 1 Dedicated IPMI LAN port 5. 6 Hot-swap 2.5" SAS/SATA HDD Bays 6. Broadcom 3108 SAS3 controller (6 ports); RAID 0, 1, 5, 6, 10, 50, 60 7. 2000W Redundant Power Supplies Titanium Level (96%) 8. 1 SATA DOM
RoHSY

Special Feature
COOInquire
TAA complianceInquire

UNSPSC Code
UNSPSC Code43211502
