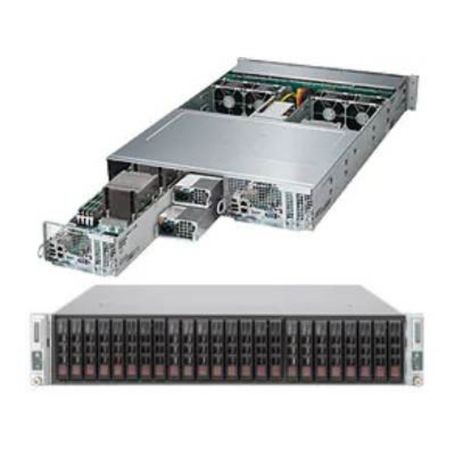

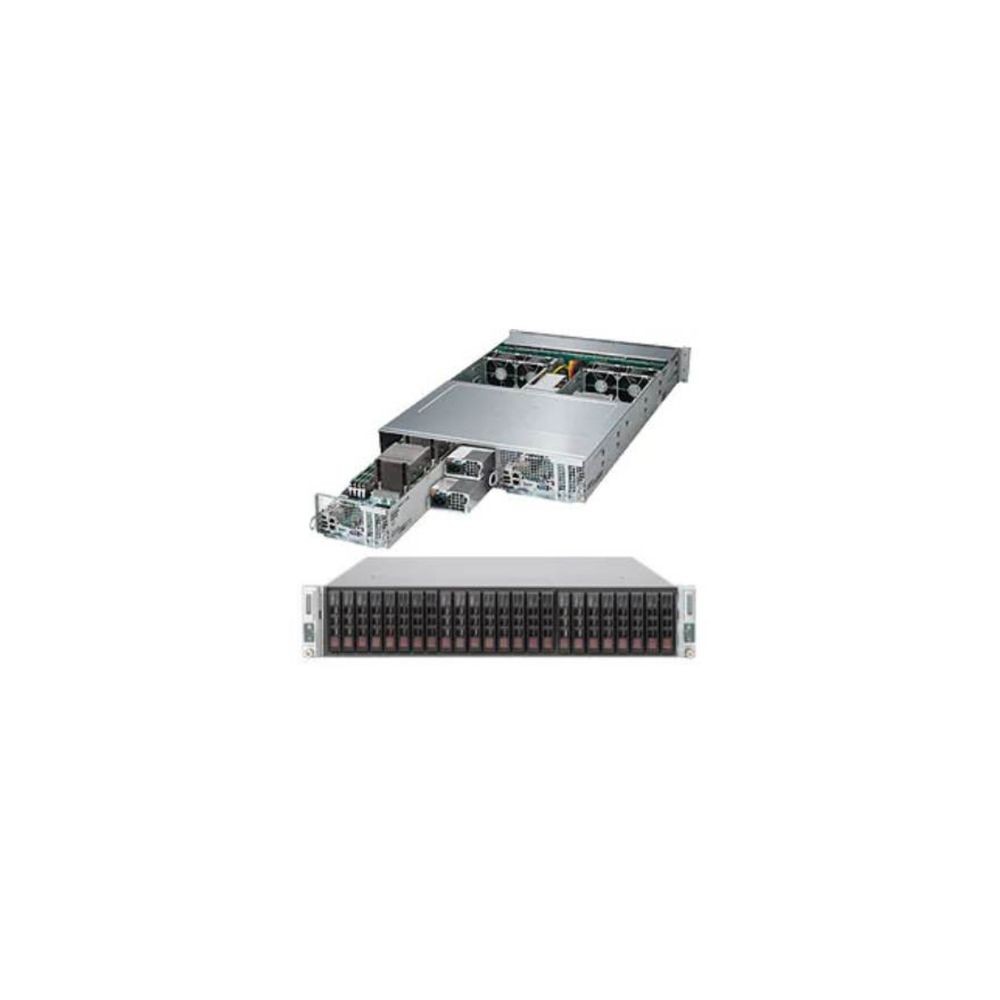

SUPERMICRO COMPUTER SYS-2028TP-DTR Server Barebones

Name: SUPERMICRO COMPUTER SYS-2028TP-DTR Server Barebones
Brand: SUPERMICRO COMPUTER
SKU: SYS-2028TP-DTR
Availability: InStock

Part No: SYS-2028TP-DTR

Condition: New

Short Description: CSE-217HD+-R1K28B-Server Barebone-2U-Xeon-Gigabit Ethernet-Power Supply-Redundant-12 Hot-swap 2.5 HDD Bays

Quantity

Name ^*

Email ID ^*

Contact Number ^*

Country ^*

Enter Inquiry Details ^*

Verification Code^*

Primary Information
System Type	Server Barebone
Cabinet Form Factor	2U
Processor / Type	Xeon
Processor / Manufacturer	Intel
Processor / Max Supported Qty	2
Mainboard / Chipset Type	Intel C612
RAM / Technology	DDR4
RAM / Total Slots Qty	16
RAM / Max Supported Size	2 TB
Hard Drive / Size	2.5"
Hard Drive / Interface Type	SAS 3
Hard Drive / Bays Qty	12
Storage Controller Type	PCI Express; SAS 3
RAID Level	RAID 0, 1, 10
Data Link Protocol	Gigabit Ethernet
Power / Device Type	Power Supply - Redundant
Interfaces & Connections	12 SAS3 (12Gbps) ports, 2 RJ45 Gigabit Ethernet LAN ports 1 RJ45 Dedicated IPMI LAN port, 1 external QSFP Infiniband connector , 2 USB 3.0 ports (rear), 1 VGA port, 1 Fast UART 16550 port / 1 Header (internal)
Expansion Bays Total (Free)	12 Hot-swap 2.5" HDD Bays
Expansion Slots Total (Free)	1 PCI-E 3.0 x16 slot 1 PCI-E 3.0 x8 slot
Model	CSE-217HD+-R1K28B
Width	17.25 Inch
Depth	28.75 Inch
Height	3.47 Inch
Enclosure Color	Black
Features	1. Dual socket R (LGA 2011) supports Intel Xeon processor E5-2600 and E5-2600 v2 family 2. Up to 1TB ECC LRDIMM, 512GB ECC RDIMM, up to 1866MHz; 16x DIMM sockets 3. 1x PCI-E 3.0 x16 Low-profile slot; 1x PCI-E 3.0 x8 Low-profile slot 4. Intel i350-AM2 Dual port GbE LAN 5. Integrated IPMI 2.0 with KVM and Dedicated LAN 6. 12x Hot-swap 2.5" SAS/SATA HDD Bays 7. LSI 3008 SAS3 controller (8 ports) + 2 SATA3 + 2 SATA2; RAID 0,1,10 8. 1280W Redundant Power Supplies Platinum Level (94%)
RoHS	Y

Special Feature
COO	Inquire
TAA compliance	Inquire

UNSPSC Code
UNSPSC Code	43211502
