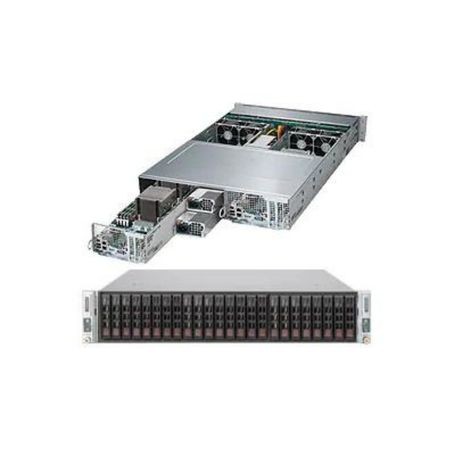

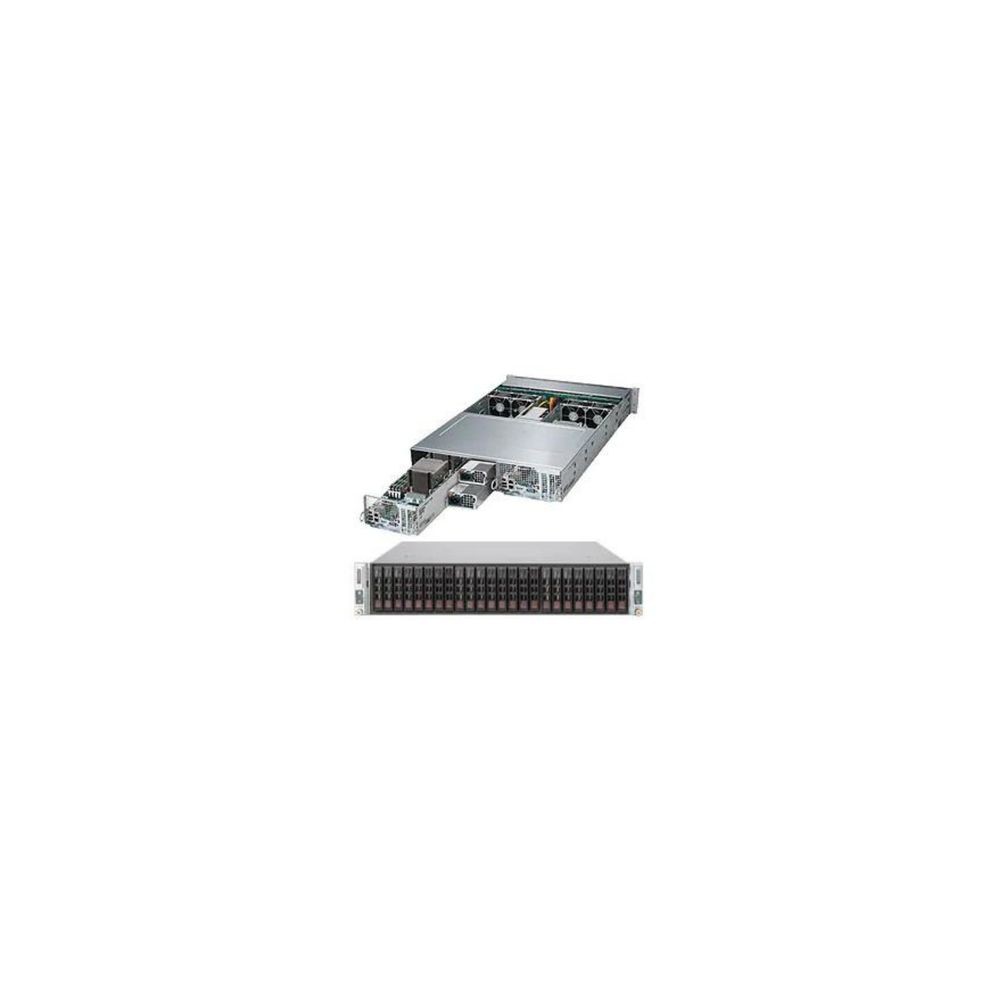

SUPERMICRO COMPUTER SYS-2028TP-DC1TR Server Barebones View larger

SUPERMICRO COMPUTER SYS-2028TP-DC1TR Server Barebones

SYS-2028TP-DC1TR

New

SuperServer 2028TP-DC1TR -Server-2U-Xeon-Gigabit Ethernet-Power Adapter-12x 2.5 Hot-swap SAS(8)/SATA(4)HDD Bays
×




Detailed Specifications

Primary Information
System TypeServer
Cabinet Form Factor2U
Processor / TypeXeon
Processor / ManufacturerIntel
Processor / Max Supported Qty2
Mainboard / Chipset TypeIntel C612
RAM / TechnologyDDR4
RAM / Total Slots Qty16
RAM / Max Supported Size2 TB
Hard Drive / Size2.5"
Hard Drive / Interface TypeSAS/SATA
Hard Drive / Bays Qty12
Storage Controller TypePCI Express
RAID LevelRAID 0, 1, 5, 6, 10, 50, 60
Data Link ProtocolGigabit Ethernet
Power / Device TypePower Adapter
Power / Provided (W)1280 Watt
Power / Voltage Required180-240V, 6-8A, 50-60Hz
Interfaces & Connections8 SAS3 (12Gbps) ports, 2 RJ45 10GBase-T ports, 1 RJ45 Dedicated IPMI LAN port, 2 USB 3.0 ports (rear), 1 VGA port, 1 Fast UART 16550 port / 1 Header (internal).
Expansion Bays Total (Free)12x 2.5" Hot-swap SAS (8) / SATA (4) HDD Bays
Expansion Slots Total (Free)1x PCI-E 3.0 x16 Low-profile slot, 1x PCI-E 3.0 x8 slot.
ModelSuperServer 2028TP-DC1TR
Width17.25 Inch
Depth28.75 Inch
Height3.47 Inch
Enclosure ColorBlack
RoHSY

Special Feature
COOInquire
TAA complianceInquire

UNSPSC Code
UNSPSC Code43211502
