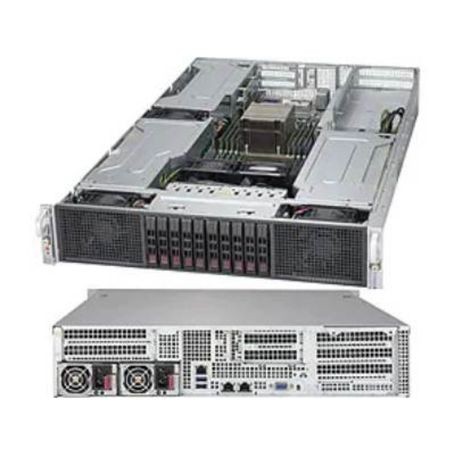

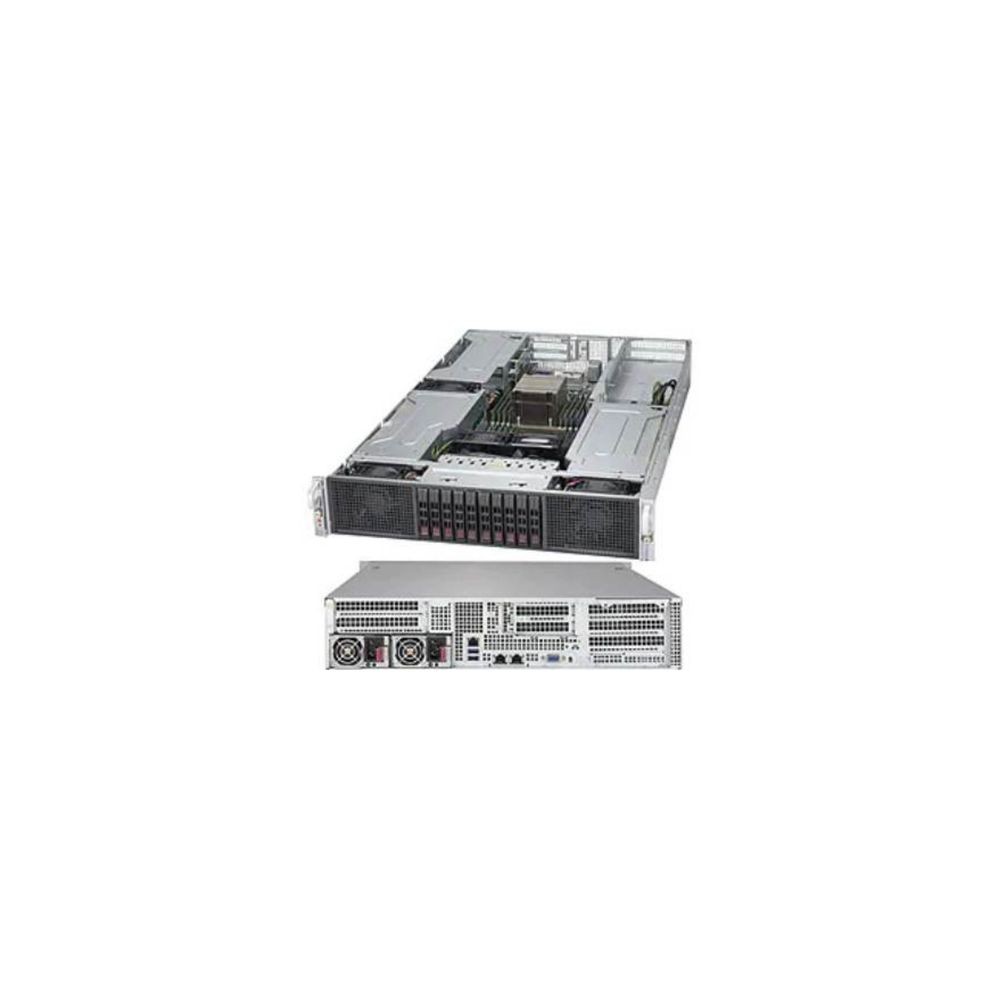

SUPERMICRO COMPUTER SYS-2028GR-TRHT Server Barebones

Name: SUPERMICRO COMPUTER SYS-2028GR-TRHT Server Barebones
Brand: SUPERMICRO COMPUTER
SKU: SYS-2028GR-TRHT
Availability: InStock

Part No: SYS-2028GR-TRHT

Condition: New

Short Description: CSE-218GH-R2K03B-Server Barebone-2U-Xeon-Gigabit Ethernet-Power Supply-Redundant-10 Hot-swap 2.5 drive bays

Quantity

Name ^*

Email ID ^*

Contact Number ^*

Country ^*

Enter Inquiry Details ^*

Verification Code^*

Primary Information
System Type	Server Barebone
Cabinet Form Factor	2U
Processor / Type	Xeon
Processor / Manufacturer	Intel
Processor / Max Supported Qty	2
Mainboard / Chipset Type	Intel C612
RAM / Technology	DDR4
RAM / Total Slots Qty	16
RAM / Max Supported Size	2 TB
Hard Drive / Size	2.5"
Hard Drive / Interface Type	SATA 6 Gb/s
Hard Drive / Bays Qty	10
Storage Controller Type	PCI Express; SATA 6Gb/s
RAID Level	RAID 0, 1, 5, 10
Data Link Protocol	Gigabit Ethernet
Power / Device Type	Power Supply - Redundant
Interfaces & Connections	10 SATA3 (6Gbps) ports, 2 RJ45 Gigabit Ethernet LAN ports,1 RJ45 Dedicated IPMI LAN port, 4 USB 3.0 ports (2 rear, 2 via header) 2 USB 2.0 ports (2 via headers), 1 VGA Connector, 1 Serial header.
Expansion Bays Total (Free)	10 Hot-swap 2.5" drive bays
Expansion Slots Total (Free)	4 PCI-E 3.0 x16 slots (support GPU/Xeon Phi cards, option) 1 PCI-E 3.0 x8 (in x16) low-profile slot
Model	CSE-218GH-R2K03B
Width	17.2 Inch
Depth	31 Inch
Height	3.5 Inch
Enclosure Color	Black
Features	1. Dual socket R3 (LGA 2011) supports Intel Xeon processor E5-2600 v4/ v3 family; QPI up to 9.6GT/s 2. Up to 2TB ECC 3DS LRDIMM , up to DDR4- 2400MHz ; 16 DIMM slots 3. 6 PCI-E 3.0 x16 slots (GPU/MIC, opt.), 1 PCI-E 3.0 x8 (in x16) low-profile slot 4. Intel i350 Dual-Port GbE LAN 5. 10 Hot-swap 2.5" SATA Drive Bays 6. 2000W Redundant Power Supplies Platinum Level (94%+) 7. 5 heavy duty cooling fans 8. Smart server management tools
RoHS	Y

Special Feature
COO	Inquire
TAA compliance	Inquire

UNSPSC Code
UNSPSC Code	43211502
