SUPERMICRO COMPUTER SYS-1029TP-DC1R Server Barebones View larger

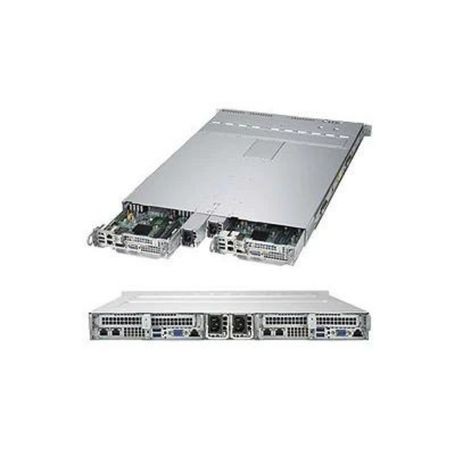

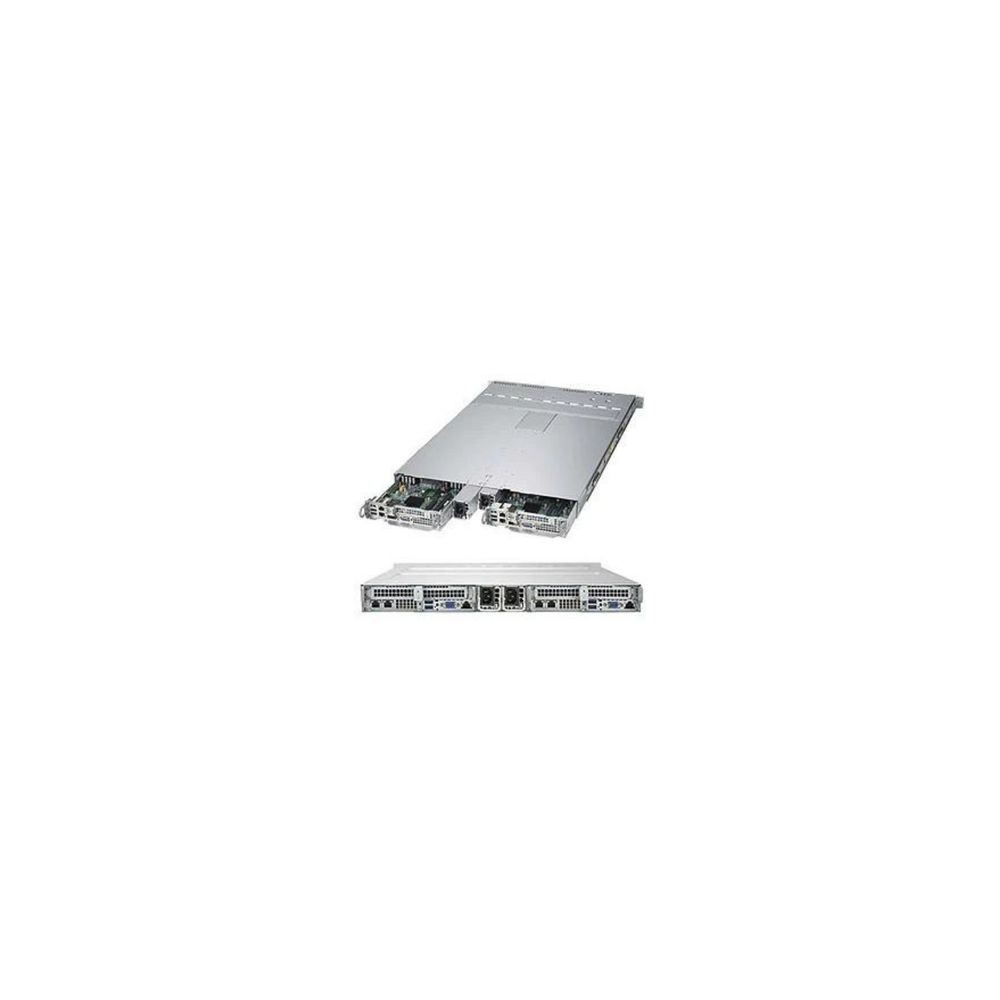

SUPERMICRO COMPUTER SYS-1029TP-DC1R Server Barebones

SYS-1029TP-DC1R

New

SuperServer 1029TP-DC1R -Server-1U-Xeon-Gigabit Ethernet-Power Supply-Redundant-4 Hot-swap 2.5 SAS3/SATA3 drive bays
×




Detailed Specifications

Primary Information
System TypeServer
Cabinet Form Factor1U
Processor / TypeXeon
Processor / ManufacturerIntel
Processor / Max Supported Qty2
Mainboard / Chipset TypeIntel C621
RAM / TechnologyDDR4
RAM / Total Slots Qty16
RAM / Max Supported Size4 TB
Hard Drive / Size2.5"
Hard Drive / Interface TypeSAS/SATA
Hard Drive / Bays Qty4
Storage Controller TypePCI Express
RAID LevelRAID 0, 1, 5, 6, 10, 50, 60
Data Link ProtocolGigabit Ethernet
Power / Device TypePower Supply - Redundant
Power / Provided (W)1000 Watt
Power / Voltage Required200 240Vac
Interfaces & Connections4 SAS3 (12Gbps) ports, 1 RJ45 Dedicated IPMI LAN port, 2 USB 3.0 ports (rear), 1 VGA port, 1 Fast UART 16550 port / 1 Header (internal).
Expansion Bays Total (Free)4 Hot-swap 2.5" SAS3/SATA3 drive bays
Expansion Slots Total (Free)2 PCI-E 3.0 x16 Low-profile slots
ModelSuperServer 1029TP-DC1R
Width17.2 Inch
Depth28.25 Inch
Height1.7 Inch
Enclosure ColorBlack
RoHSY

Special Feature
COOInquire
TAA complianceInquire

UNSPSC Code
UNSPSC Code43211502
