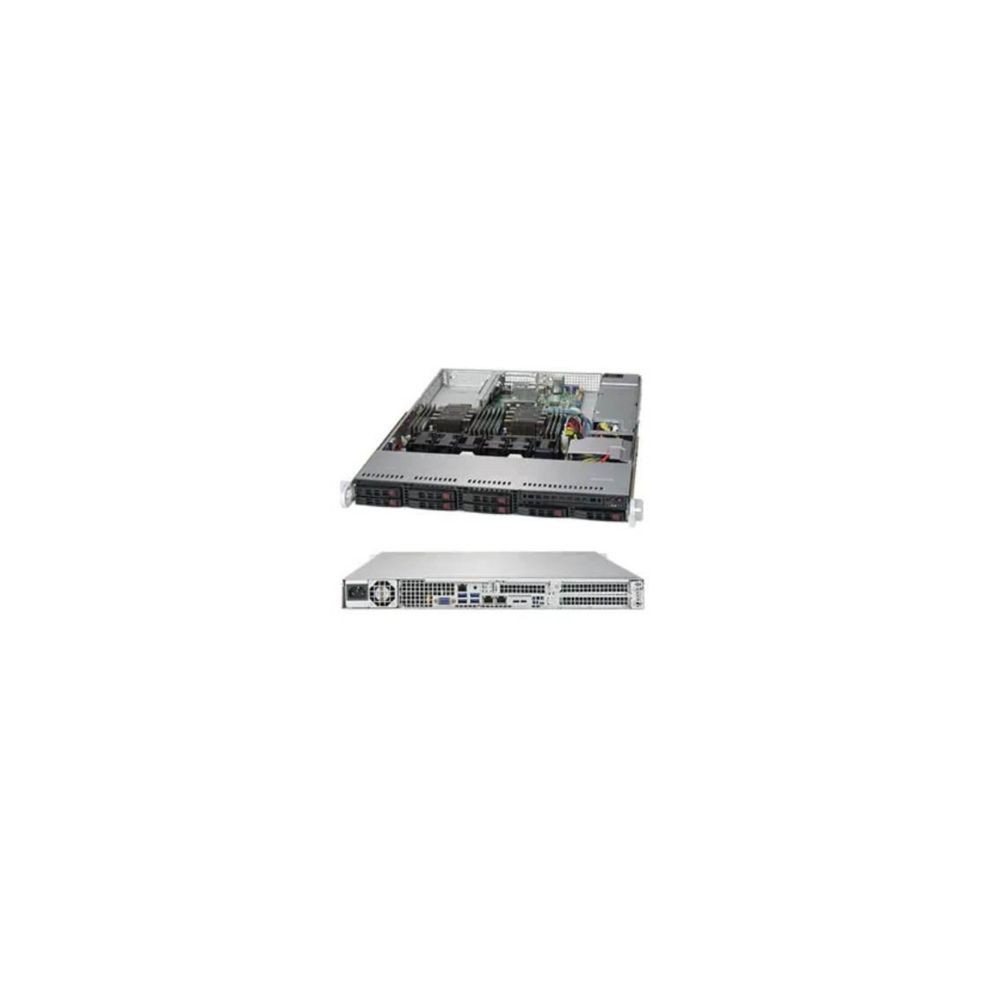

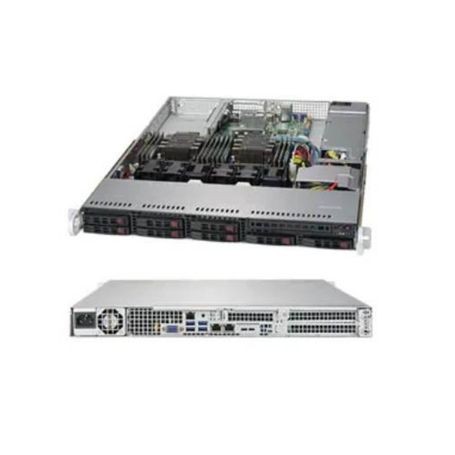

SUPERMICRO COMPUTER SYS-1029P-WT Server Barebones View larger

SUPERMICRO COMPUTER SYS-1029P-WT Server Barebones

SYS-1029P-WT

New

CSE-113AC2-605WB-Server Barebone-1U-Xeon-Gigabit Ethernet-Power Supply-Redundant-8 Hot-swap 2.5 SAS/SATA drive bays
×




Detailed Specifications

Primary Information
System TypeServer Barebone
Cabinet Form Factor1U
Processor / TypeXeon
Processor / ManufacturerIntel
Processor / Max Supported Qty2
Mainboard / Chipset TypeIntel C621
RAM / TechnologyDDR4
RAM / Total Slots Qty12
RAM / Max Supported Size3 TB
Hard Drive / Size2.5"
Hard Drive / Interface TypeSAS/SATA
Hard Drive / Bays Qty8
Storage Controller TypePCI Express
RAID LevelRAID 0, 1, 5, 10
Data Link ProtocolGigabit Ethernet
Power / Device TypePower Supply - Redundant
Power / Provided (W)600 Watt
Power / Voltage Required100-240V, 50-60Hz
Interfaces & Connections8 SATA3 (6 Gbps) ports, 2 RJ45 Gigabit Ethernet ports 1 RJ45 Dedicated IPMI LAN port, 4 USB 3.0 ports (rear), 1 VGA port, 2 SuperDOM (Disk on Module) ports.
Expansion Bays Total (Free)8 Hot-swap 2.5" SAS/SATA drive bays
Expansion Slots Total (Free)2 PCI-E 3.0 x16 (FHHL) slots 1 PCI-E 3.0 x8 (LP) slot 1 PCI-E 3.0 x16 for Add-on-Module (AOM) 1 PCI-E 3.0 x4 NVMe M.2 slot
ModelCSE-113AC2-605WB
Width17.2 Inch
Depth23.5 Inch
Height1.7 Inch
Enclosure ColorBlack
Features1. Dual socket R3 (LGA 2011) supports Intel Xeon processor E5-2600 v4/ v3 family; QPI up to 9.6GT/s 2. Up to 2TB ECC 3DS LRDIMM , up to DDR4- 2400MHz ; 16x DIMM slots 3. 1x PCI-E 3.0 x16 Low-profile slot 4. Intel i350 Dual port GbE LAN 5. Integrated IPMI 2.0 with KVM and Dedicated LAN 6. 4x 2.5" Hot-swap SAS3 drive bays 7. Broadcom 3108 SAS3 controller; RAID 0, 1, 10, 5, 6 8. 1000W Redundant Power Supplies Titanium Level (96%)
RoHSY

Special Feature
COOInquire
TAA complianceInquire

UNSPSC Code
UNSPSC Code43211502
