| Primary Information |
|---|

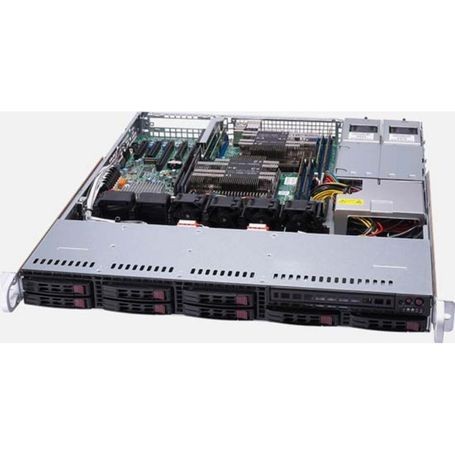

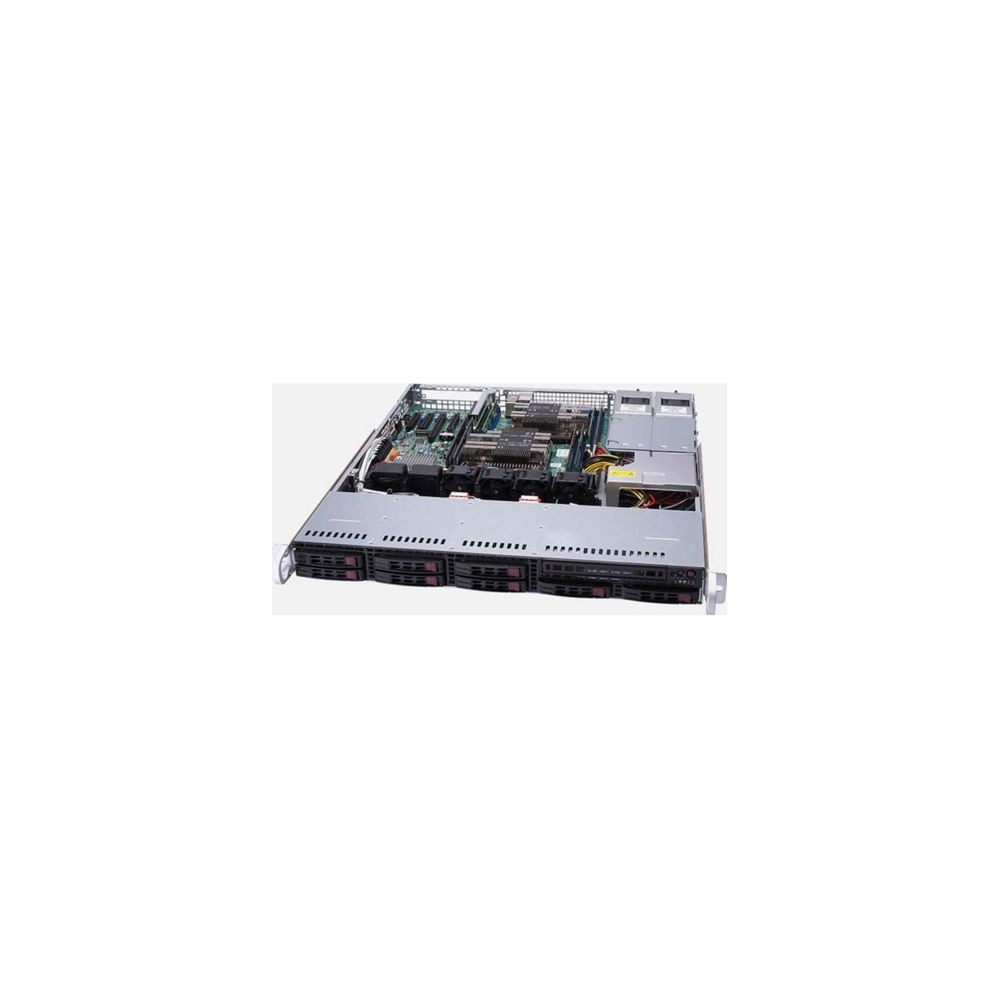

| System Type | Server Barebone |
| Cabinet Form Factor | 1U |
| Processor / Type | Xeon |
| Processor / Manufacturer | Intel |
| Processor / Max Supported Qty | 2 |
| Mainboard / Chipset Type | Intel C621 |
| RAM / Technology | DDR4 |
| RAM / Total Slots Qty | 8 |
| RAM / Max Supported Size | 2 TB |
| Hard Drive / Size | 2.5" |
| Hard Drive / Interface Type | SATA-3 |
| Hard Drive / Bays Qty | 8 |
| Storage Controller Type | PCI Express |
| RAID Level | RAID 0, 1, 5, 10 |
| Data Link Protocol | Gigabit Ethernet |
| Power / Device Type | Power Supply - Redundant |
| Power / Provided (W) | 800 Watt |
| Interfaces & Connections | 8 SATA3 (6Gbps) ports, 2 RJ45 Gigabit Ethernet LAN ports 1 RJ45 Dedicated IPMI LAN port, 1 VGA port, 1 COM port (header). |
| Expansion Bays Total (Free) | 8 Hot-swap 2.5" SATA3 drive bays |
| Expansion Slots Total (Free) | 1 PCI-E 3.0 x8 (FHHL) slot |
| Model | CSE-113MFTS-R804CB |
| Width | 17.2 Inch |
| Depth | 19.98 Inch |
| Height | 1.7 Inch |
| Enclosure Color | Black |
| Features | 1. Dual Socket P (LGA 3647) support 2nd Gen Intel Xeon Scalable processors (Cascade Lake/Skylake) 2. 8 DIMMs; up to 2TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM 3. 1 PCI-E 3.0 x8 (FHHL) slot 4. 8 Hot-swap 2.5" SATA3 drive bays, 1 Slim DVD-ROM drive (optional), Optional PCIe/SATA M.2 drive M.2 holder: MCP-450-00003-0N 5. 2 1GbE LAN ports via Marvell 88E1512 6. IPMI 2.0 + KVM with Dedicated LAN 7. 1 VGA, 2 USB 2.0 (rear) 8. 2 SuperDOM (Disk on Module) ports; 1 PCIe/SATA M.2 drive connector 9. 800W Redundant Power Supplies Platinum Level |
| RoHS | Y |
