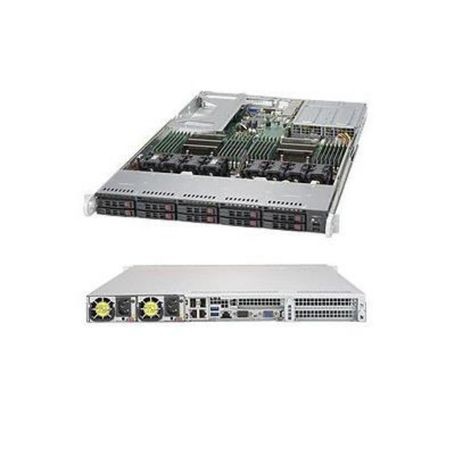

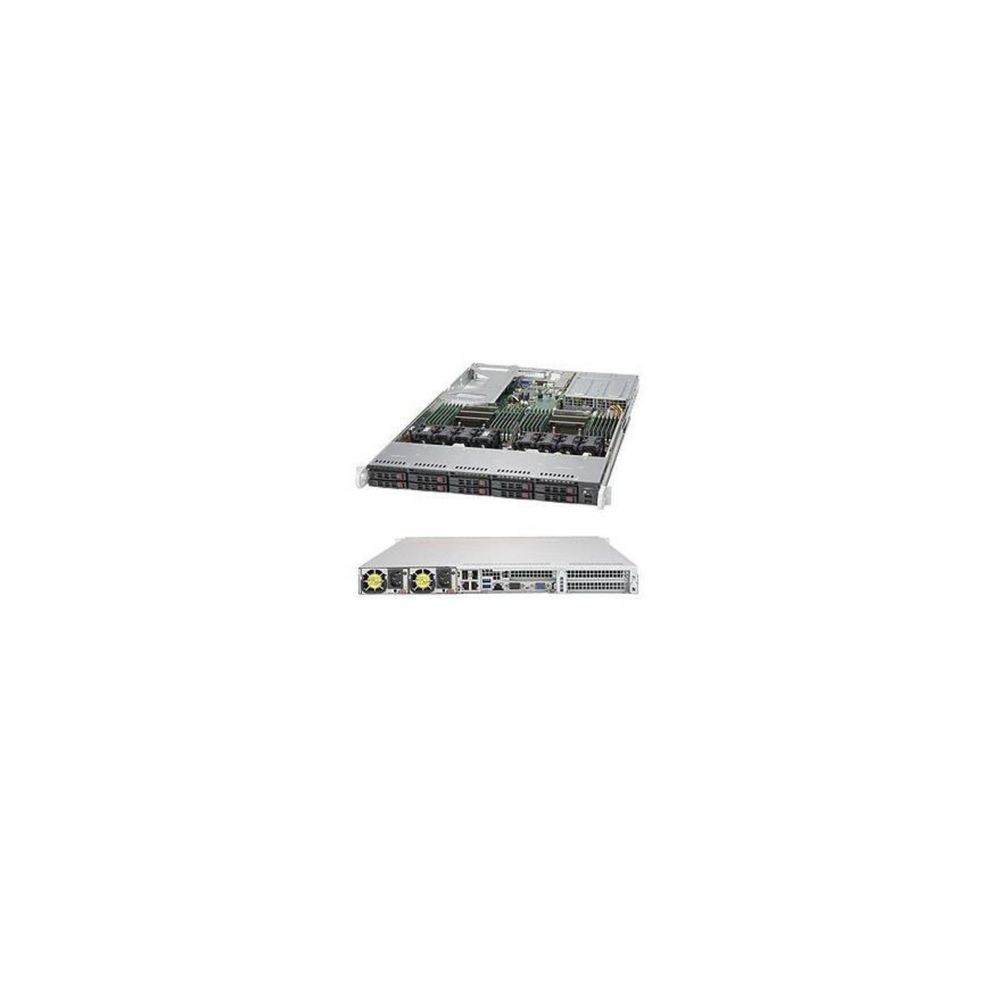

SUPERMICRO COMPUTER SYS-1028U-E1CRTP+ Server Barebones View larger

SUPERMICRO COMPUTER SYS-1028U-E1CRTP+ Server Barebones

SYS-1028U-E1CRTP+

New

Super Server-Intel, X10DRU-i+, 119UE1C-R751-T, AOC-URN2-I4GXS, Complete system only, must be integrated with CPU/MEM/HDD from SMC - 1U Rackmount - Gigabit Ethernet - 24x 288-pin DDR4...
×




Detailed Specifications

Primary Information
System TypeServer Barebone
Cabinet Form Factor1U
Processor / TypeXeon
Processor / ManufacturerIntel
Mainboard / Chipset TypeIntel C612
RAM / TechnologyDDR4
RAM / Total Slots Qty24
RAM / Max Supported Size3 TB
Hard Drive / Size2.5"
Hard Drive / Interface TypeSATA 3; SAS 3
Hard Drive / Bays Qty10
RAID LevelRAID 0, 1, 5, 10
Data Link ProtocolGigabit Ethernet
Power / Device TypePower Supply
Power / Provided (W)750 Watt
Power / Voltage Required100-127Vac, 50-60Hz, 200-240Vac, 50-60Hz
Interfaces & Connections2x RJ45 GbE LAN ports; 2x 10G SFP+ ports; 1x RJ45 Dedicated IPMI LAN port; 5x USB 3.0 ports(2 rear, 2 front, 1 Type A); 1x VGA Connector; 1x Serial header
Expansion Slots Total (Free)2x PCI-E 3.0 x16 slots (Full-height, 10.5" L), 2x PCI-E 3.0 x8 slots (Low-profile, 1 internal)
ModelCSE-119UTS-R751P-T
Width17.2 Inch
Depth28.5 Inch
Height1.7 Inch
Enclosure ColorBlack
Features2x 10G SFP+ and 2x GbE LAN ports; 6x heavy duty fans w/ optimal fan speed control; 750W Redundant Power Supplies Platinum Level (94%+)

Special Feature
COOInquire
TAA complianceInquire

UNSPSC Code
UNSPSC Code43211502
