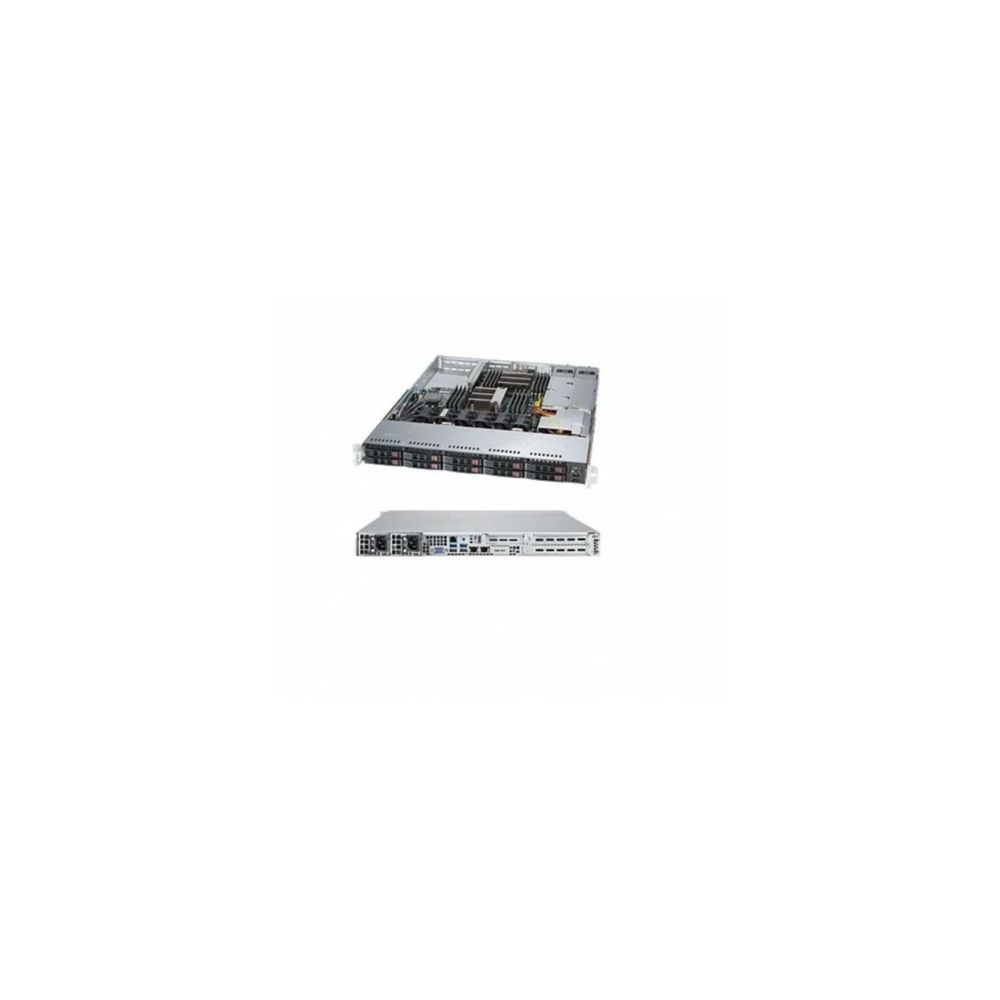

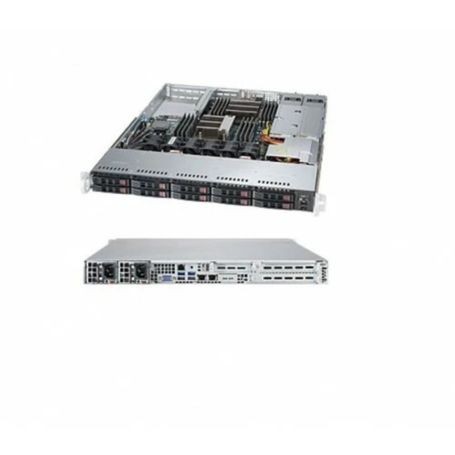

SUPERMICRO COMPUTER SYS-1028TP-DTFR Server Barebones View larger

SUPERMICRO COMPUTER SYS-1028TP-DTFR Server Barebones

SYS-1028TP-DTFR

New

CSE-809H-R1K05-Server Barebone-1U-Xeon-Gigabit Ethernet-Power Supply-Redundant-4x 2.5 Hot-swap SAS3 drive bays
×




Detailed Specifications

Primary Information
System TypeServer Barebone
Cabinet Form Factor1U
Processor / TypeXeon
Processor / ManufacturerIntel
Processor / Max Supported Qty2
Mainboard / Chipset TypeIntel C612
RAM / TechnologyDDR4
RAM / Total Slots Qty16
RAM / Max Supported Size2 TB
Hard Drive / Size2.5"
Hard Drive / Interface TypeSAS 12 Gb/s
Hard Drive / Bays Qty4
Storage Controller TypePCI Express
RAID LevelRAID 0, 1, 3, 5, 6, 10
Data Link ProtocolGigabit Ethernet
Power / Device TypePower Supply - Redundant
Interfaces & Connections4x SAS3 (12Gbps) ports,2x RJ45 Gigabit Ethernet LAN ports 1x RJ45 Dedicated IPMI LAN port, 1x external QSFP Infiniband connector,2x USB 3.0 ports (rear), 1x VGA port, 1x Fast UART 16550 port / 1 Header (internal), 1x SATADOM support on the motherboard.
Expansion Bays Total (Free)4x 2.5" Hot-swap SAS3 drive bays
Expansion Slots Total (Free)1x PCI-E 3.0 x16 Low-profile slot
ModelCSE-809H-R1K05
Width17.2 Inch
Depth28.25 Inch
Height1.7 Inch
Enclosure ColorBlack
Features1. Dual socket R3 (LGA 2011) supports Intel Xeon processor E5-2600 v4/ v3 family; QPI up to 9.6GT/s 2. Up to 2TB ECC 3DS LRDIMM , up to DDR4- 2400MHz ; 16x DIMM slots 3. 1x PCI-E 3.0 x16 Low-profile slot 4. Single port IB (FDR, 56Gbps), w/ QSFP connector 5. Intel i350 Dual port GbE LAN 6. Integrated IPMI 2.0 with KVM and Dedicated LAN 7. 4x 2.5" Hot-swap SAS3 drive bays 8. Broadcom 3108 SAS3 controller; RAID 0, 1, 10, 5, 6 9. 1000W Redundant Power Supplies Titanium Level (96%)
RoHSY

Special Feature
COOInquire
TAA complianceInquire

UNSPSC Code
UNSPSC Code43211502
