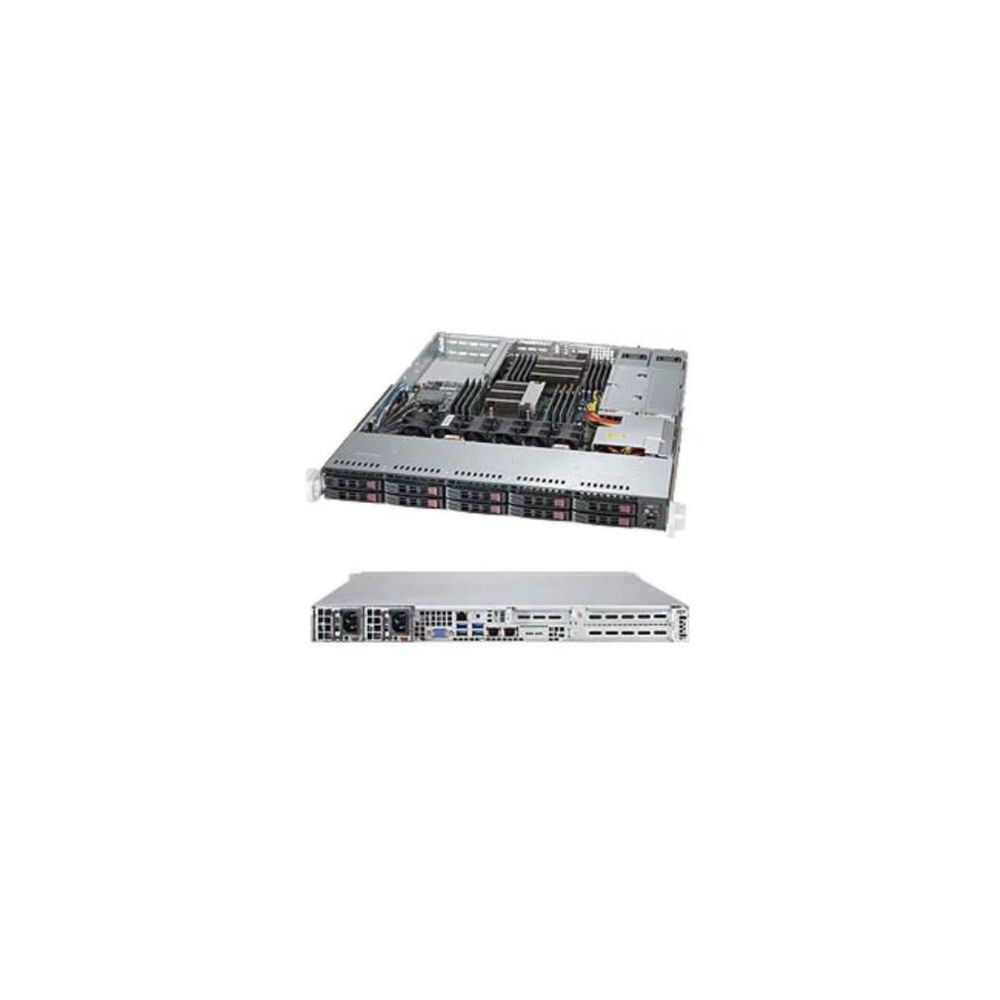

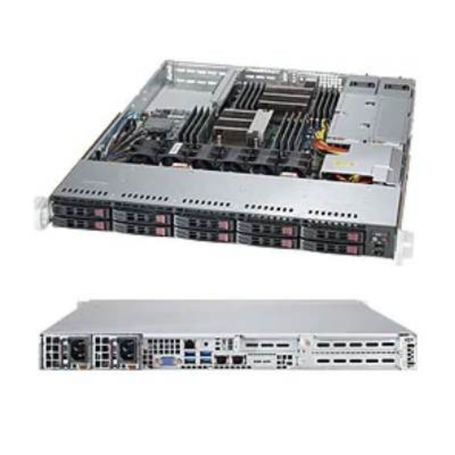

| Primary Information |
|---|
| System Type | Server Barebone |
| Cabinet Form Factor | 1U |
| Processor / Type | Xeon |
| Processor / Manufacturer | Intel |
| Processor / Max Supported Qty | 2 |
| Mainboard / Chipset Type | Intel C612 |
| RAM / Technology | DDR4 |
| RAM / Total Slots Qty | 16 |
| RAM / Max Supported Size | 2 TB |
| Hard Drive / Size | 2.5" |
| Hard Drive / Interface Type | SATA III 6Gb/s |
| Storage Controller Type | PCI Express |
| RAID Level | RAID 0, 1, 5, 6, 10, 50, 60 |
| Data Link Protocol | Gigabit Ethernet |
| Power / Device Type | Power Supply - Redundant |
| Interfaces & Connections | 10x SATA3 (6Gbps) ports, 2x RJ45 Gigabit Ethernet LAN ports 1x RJ45 Dedicated IPMI LAN port,6x USB 3.0 ports (4 rear + 2 via header), 1x VGA port, 1x Fast UART 16550 header, 2x SuperDOM (Disk on Module) ports |
| Expansion Bays Total (Free) | 10x Hot-swap 2.5" SAS / SATA HDD trays (default 10 SATA connected to onboard storage controller) |
| Expansion Slots Total (Free) | 2x PCI-E 3.0 x16 full-height, Half-length slots |
| Model | CSE-116TQ-R706WB |
| Width | 17.2 Inch |
| Depth | 23.5 Inch |
| Height | 1.7 Inch |
| Enclosure Color | Black |
| Features | 1. Dual socket R3 (LGA 2011) supports Intel Xeon processor E5-2600 v4/ v3 family; QPI up to 9.6GT/s 2. Up to 2TB ECC 3DS LRDIMM , up to DDR4- 2400MHz ; 16x DIMM slots 3. 2 PCI-E 3.0 x16 (FHHL), 1 PCI-E 3.0 x8 Mezzanine for HBA cards 4. 10 Hot-swap 2.5" SAS/SATA HDD bays (default 10 SATA3) 5. Intel i350 Dual port GbE LAN 6. I/O ports: 2 SuperDOM, 1 VGA, 1 COM, 6 USB 3.0 (4 rear, 2 front) 7. 2 SuperDOM (Disk on Module) ports 8. 750W Redundant Power Supplies Platinum Level High-efficiency |
| RoHS | Y |
