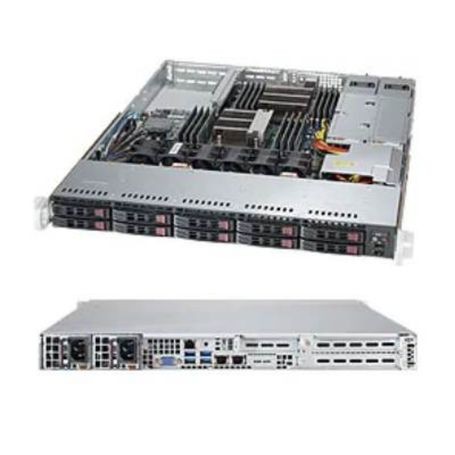

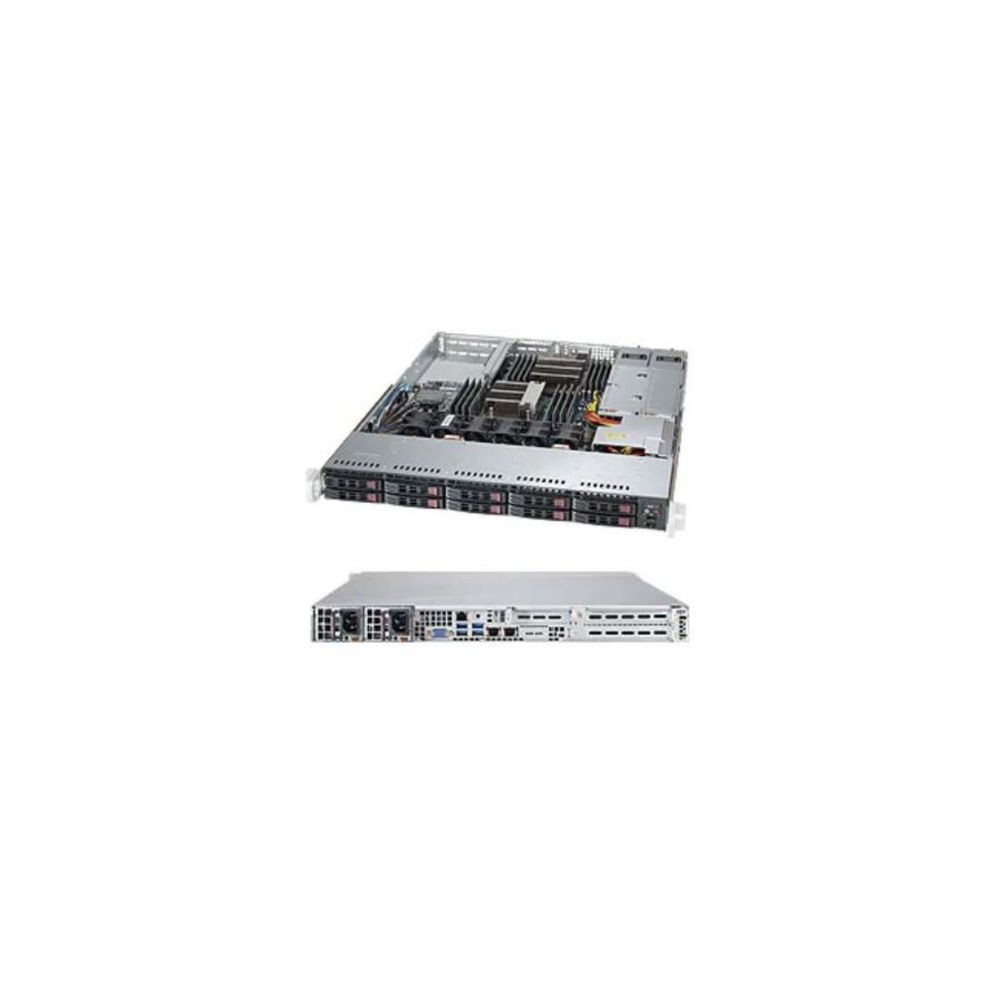

SUPERMICRO COMPUTER SYS-1028R-WTNRT Server Barebones View larger

SUPERMICRO COMPUTER SYS-1028R-WTNRT Server Barebones

SYS-1028R-WTNRT

New

CSE-116AC2-R706WB - Server Barebone - 1U - Xeon - Gigabit Ethernet - Power Supply - Redundant - 8x SATA3 (6Gbps) ports and 2x NVMe/SATA3 hybrid ports (connected to onboard storage...
×




Detailed Specifications

Primary Information
System TypeServer Barebone
Cabinet Form Factor1U
Processor / TypeXeon
Processor / ManufacturerIntel
Processor / Max Supported Qty2
Mainboard / Chipset TypeIntel C612
RAM / TechnologyDDR4
RAM / Total Slots Qty16
RAM / Max Supported Size2 TB
Hard Drive / Interface TypeSATA III 6Gb/s
Hard Drive / Bays Qty8
Storage Controller TypePCI Express
RAID LevelRAID 0, 1, 5, 6, 10, 50, 60
Data Link ProtocolGigabit Ethernet
Power / Device TypePower Supply - Redundant
Interfaces & Connections8 SATA3 (6 Gbps) ports and 2 NVMe/SATA3 hybrid ports,2x RJ45 10GBase-T ports 1x RJ45 Dedicated IPMI LAN port,2x USB 3.0 ports (front via header) 4x USB 2.0 ports (rear),1x VGA port,1x Fast UART 16550 header, 2x SuperDOM (Disk on Module) ports
Expansion Bays Total (Free)8x SATA3 (6Gbps) ports and 2x NVMe/SATA3 hybrid ports (connected to onboard storage controller)
Expansion Slots Total (Free)2x PCI-E 3.0 x16 full-height, half-length slots
ModelCSE-116AC2-R706WB
Width17.2 Inch
Depth23.5 Inch
Height1.7 Inch
Enclosure ColorBlack
Features1. Dual socket R3 (LGA 2011) supports Intel Xeon processor E5-2600 v4/ v3 family; QPI up to 9.6GT/s 2. Up to 2TB ECC 3DS LRDIMM , up to DDR4- 2400MHz ; 16x DIMM slots 3. 2 PCI-E 3.0 x16 (FHHL) slots 4. 10 Hot-swap 2.5" SAS/SATA HDD bays (default 8 SATA3, 2 NVMe or SATA2) 5. Intel X540 Dual port 10GBase-T LAN 6. I/O ports: 2 SuperDOM, 1 VGA, 1 COM, 2 USB 3.0 (front), 4 USB 2.0 (rear) 7. 2 SuperDOM (Disk on Module) ports 8. 700W Redundant Power Supplies Platinum Level High-efficiency
RoHSY

Special Feature
COOInquire
TAA complianceInquire

UNSPSC Code
UNSPSC Code43211502
