SUPERMICRO COMPUTER SYS-1028R-WC1RT Server Barebones View larger

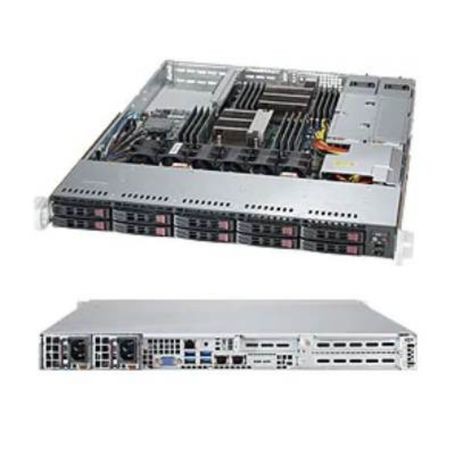

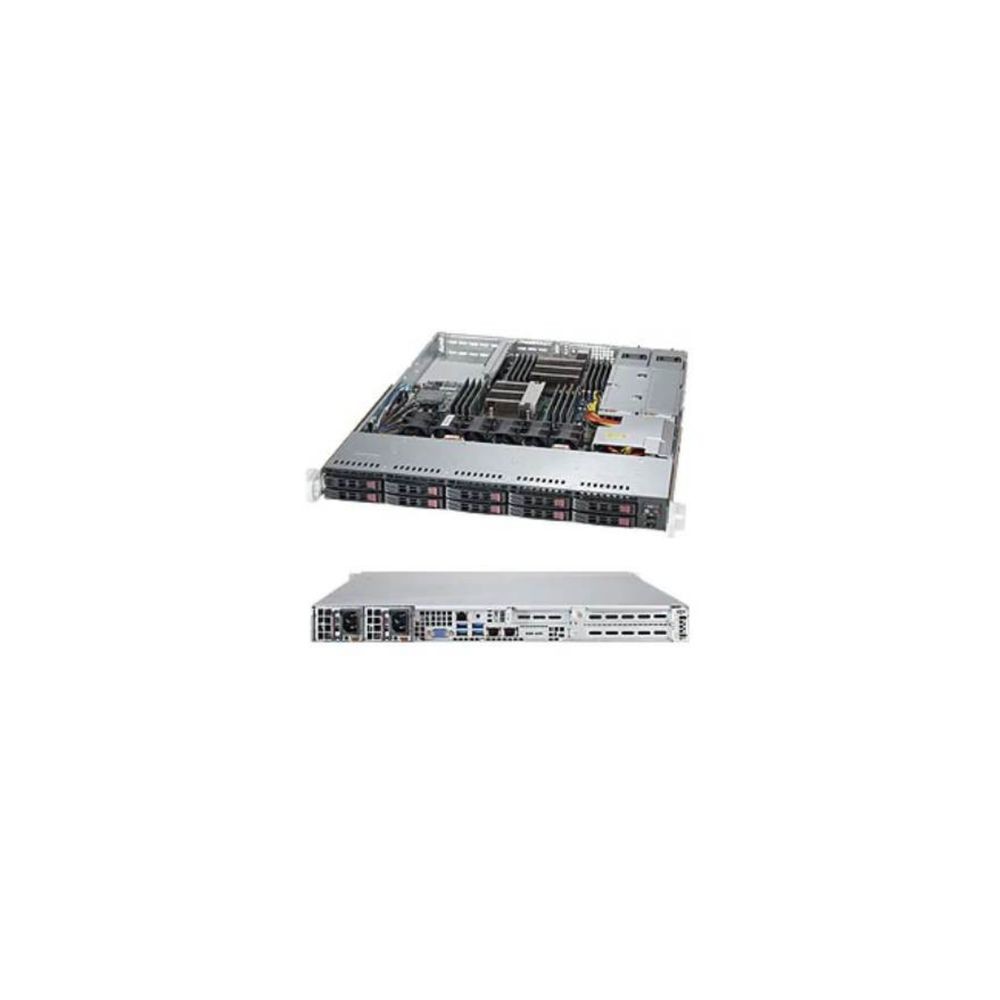

SUPERMICRO COMPUTER SYS-1028R-WC1RT Server Barebones

SYS-1028R-WC1RT

New

CSE-116AC2-R706WB-Server Barebone-1U-Xeon-Gigabit Ethernet-Power Supply-Redundant-10 Hot-swap 2.5 SAS/SATA HDD trays(Default 8 SAS3,2 SATA3)
×




Detailed Specifications

Primary Information
System TypeServer Barebone
Cabinet Form Factor1U
Processor / TypeXeon
Processor / ManufacturerIntel
Processor / Max Supported Qty2
Mainboard / Chipset TypeIntel C612
RAM / TechnologyDDR4
RAM / Total Slots Qty16
RAM / Max Supported Size2 TB
Hard Drive / Size2.5"
Hard Drive / Interface TypeSAS/SATA
Storage Controller TypePCI Express
RAID LevelRAID 0, 1; RAID 0, 1, 5, 6, 10, 50, 60
Data Link ProtocolGigabit Ethernet
Power / Device TypePower Supply - Redundant
Interfaces & ConnectionsSerial ATA: 2 SATA3 (6Gbps) ports, SAS ;8 SAS3 (12Gbps) ports, LAN :2 RJ45 Gigabit Ethernet LAN ports, 1 RJ45 Dedicated IPMI LAN port, USB:6 USB 3.0 ports (4 rear + 2 via header), VGA :1 VGA port, Serial Port / Header ;1 Fast UART 16550 header, DOM :2 SuperDOM (Disk on Module) ports.
Expansion Bays Total (Free)10 Hot-swap 2.5" SAS/SATA HDD trays (Default 8 SAS3, 2 SATA3)
Expansion Slots Total (Free)2 PCI-E 3.0 x16 full-height, Half-length slots
ModelCSE-116AC2-R706WB
Width17.2 Inch
Depth23.5 Inch
Height1.7 Inch
Enclosure ColorBlack
Features1. Dual socket R3 (LGA 2011) supports Intel Xeon processor E5-2600 v4/ v3 family; QPI up to 9.6GT/s 2. Up to 2TB ECC 3DS LRDIMM , up to DDR4- 2400MHz ; 16x DIMM slots 3. 2x PCI-E 3.0 x16 (FHHL) slots 4. 10x Hot-swap 2.5" SAS/SATA HDD bays 5. SAS3 (12Gbps) via Broadcom 3108 6. Intel X540 Dual port 10GBase-T 7. I/O ports: 2x SuperDOM, 1x VGA, 1x COM, 6x USB 3.0 (4 rear, 2 front) 8. Optional 2x 2.5" NVMe drives support 9. 750W Redundant Power Supplies Platinum Level High-efficiency
RoHSY

Special Feature
COOInquire
TAA complianceInquire

UNSPSC Code
UNSPSC Code43211502
