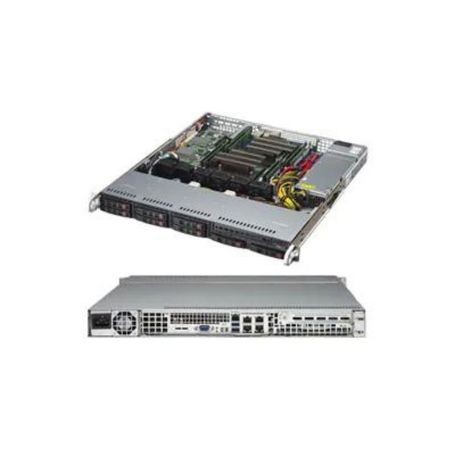

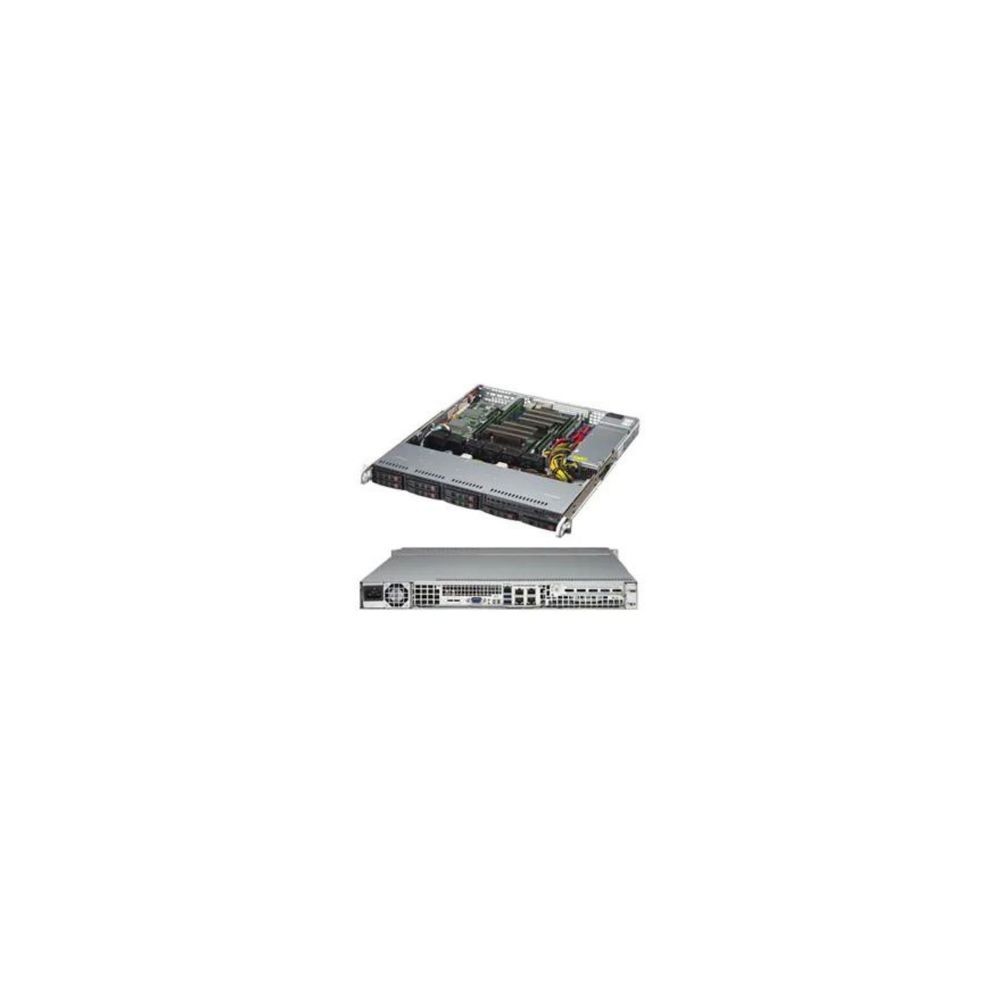

SUPERMICRO COMPUTER SYS-1028R-MCT Server Barebones View larger

SUPERMICRO COMPUTER SYS-1028R-MCT Server Barebones

SYS-1028R-MCT

New

CSE-113MFAC2-605CB-Server Barebone-1U-Xeon-Gigabit Ethernet-Power Supply-8x 2.5 Hot-swap SAS3/SATA3 Drive Bays
×




Detailed Specifications

Primary Information
System TypeServer Barebone
Cabinet Form Factor1U
Processor / TypeXeon
Processor / ManufacturerIntel
Processor / Max Supported Qty2
Mainboard / Chipset TypeIntel C612
RAM / TechnologyDDR4
RAM / Total Slots Qty8
Hard Drive / Size2.5"
Hard Drive / Interface TypeSAS/SATA
Hard Drive / Bays Qty8
Storage Controller TypePCI Express
Data Link ProtocolGigabit Ethernet
Power / Device TypePower Supply
Power / Provided (W)600 Watt
Interfaces & Connections8x SAS3 (12Gbps) ports 6x SATA3 (6Gbps) ports I-SATA 4 & I-SATA 5 support SATA DOM 2x RJ45 10GBase-T LAN ports 2x RJ45 Gigabit Ethernet LAN ports 1x RJ45 Dedicated IPMI LAN port 4x USB 3.0 ports (2 rear, 2 headers) 3x USB 2.0 ports (2 headers, 1 Type A) 1x VGA port 1x COM port (header) 2x SuperDOM (Disk on Module) ports
Expansion Bays Total (Free)8x 2.5" Hot-swap SAS3/SATA3 Drive Bays
Expansion Slots Total (Free)1x PCI-E 3.0 x8 (FHHL) slot
ModelCSE-113MFAC2-605CB
Width17.2 Inch
Depth19.98 Inch
Height1.7 Inch
Enclosure ColorBlack
RoHSY

Special Feature
COOInquire
TAA complianceInquire

UNSPSC Code
UNSPSC Code43211502
