SUPERMICRO COMPUTER SYS-1027TR-TQF Server Barebones View larger

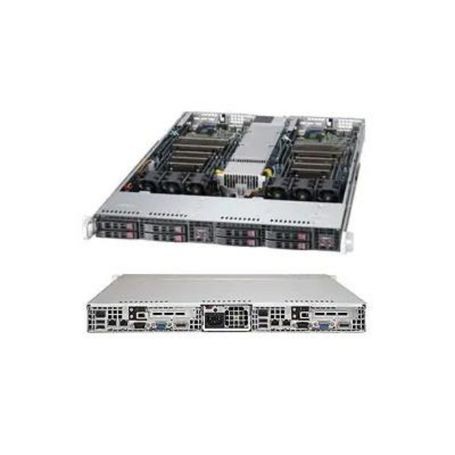

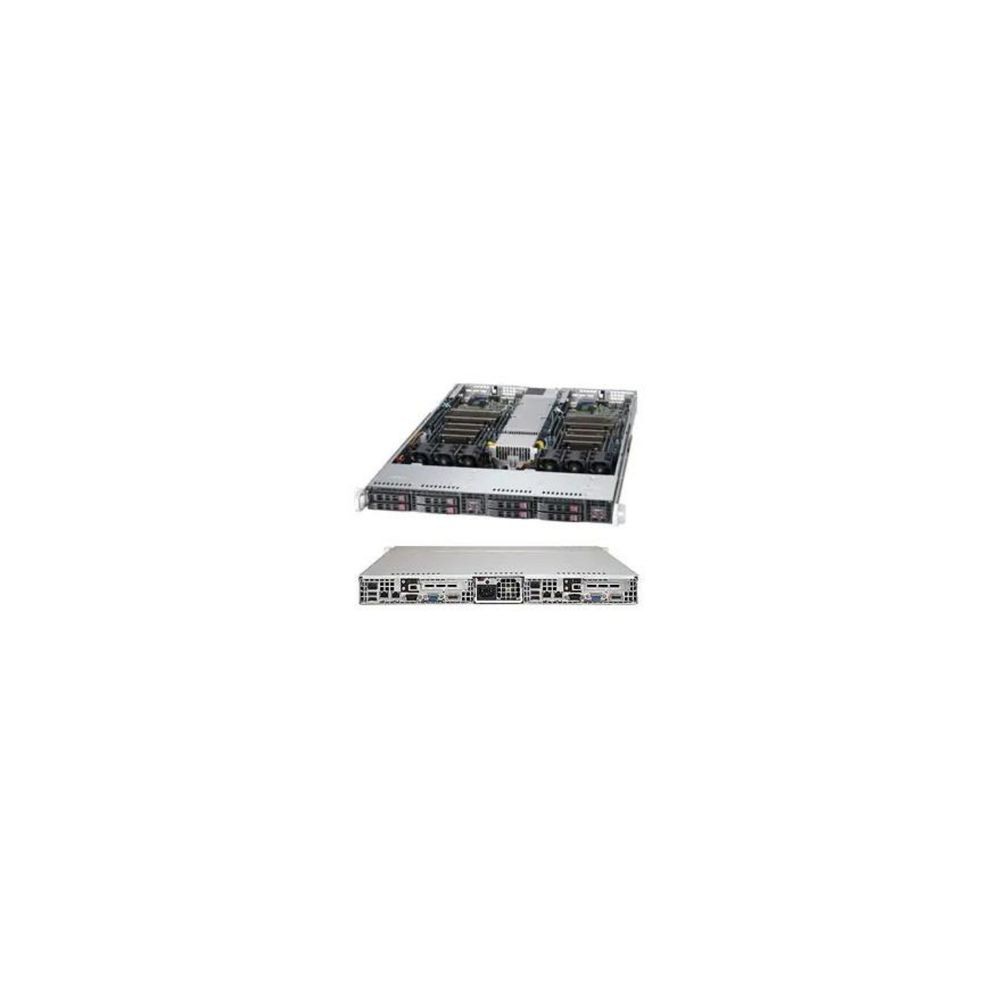

SUPERMICRO COMPUTER SYS-1027TR-TQF Server Barebones

SYS-1027TR-TQF

New

CSE-809BTQ-1K28B -Server Barebone-1U-Xeon-Gigabit Ethernet-Power Supply-4x 2.5 Hot-swap SATA HDD trays
×




Detailed Specifications

Primary Information
System TypeServer Barebone
Cabinet Form Factor1U
Processor / TypeXeon
Processor / ManufacturerIntel
Processor / Max Supported Qty2
Mainboard / Chipset TypeIntel C602J
RAM / TechnologyDDR3
RAM / Total Slots Qty8
Hard Drive / Size2.5"
Hard Drive / Interface TypeSerial ATA
Hard Drive / Bays Qty4
Storage Controller TypePCI Express
RAID LevelRAID 0, 1, 5, 10
Data Link ProtocolGigabit Ethernet
Power / Device TypePower Supply
Power / Provided (W)1280 Watt
Interfaces & Connections2x SATA 3.0 ports (6Gbps) 4x SATA 2.0 ports (3Gbps) 2x RJ45 Gigabit Ethernet LAN ports 1x RJ45 Dedicated IPMI LAN port 3x USB 2.0 ports (2x rear + 1x Type A) 1x VGA port 1x Fast UART 16550 ports (rear/header) 1x external QSFP Infiniband connector
Expansion Bays Total (Free)4x 2.5" Hot-swap SATA HDD trays
Expansion Slots Total (Free)1x PCI-E 3.0 x16 Low-profile
ModelCSE-809BTQ-1K28B
Width17.2 Inch
Depth27.75 Inch
Height1.7 Inch
Enclosure ColorBlack
RoHSY

Special Feature
COOInquire
TAA complianceInquire

UNSPSC Code
UNSPSC Code43211502
