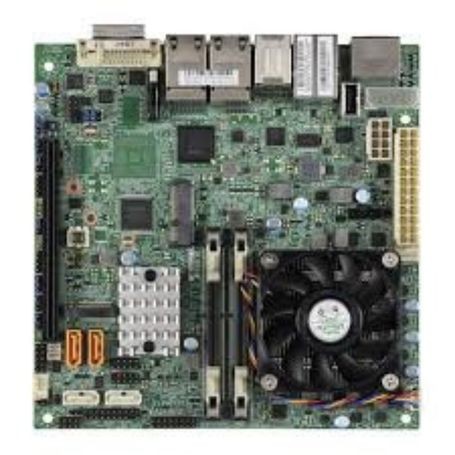

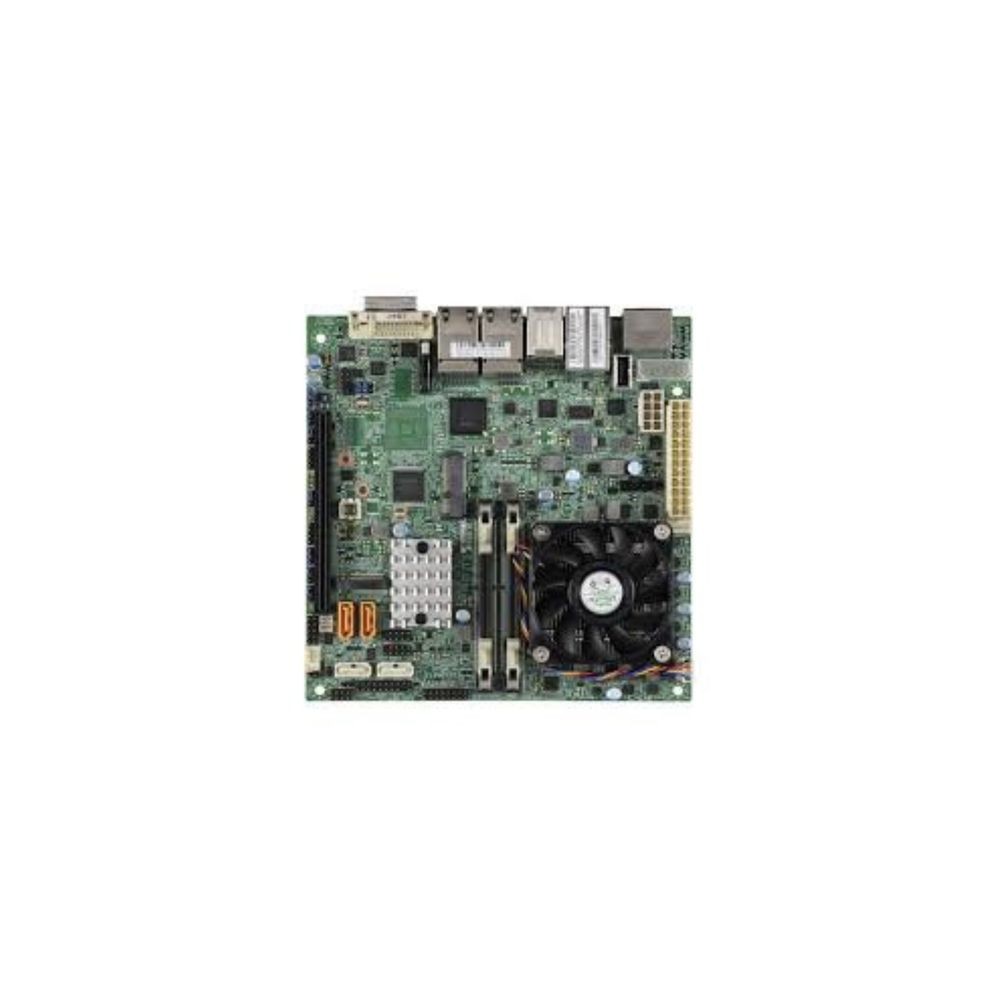

SUPERMICRO COMPUTER SYS-1019S-MP Server Barebones View larger

SUPERMICRO COMPUTER SYS-1019S-MP Server Barebones

SYS-1019S-MP

New

Super Server-Intel, Embedded Box PC, X11SSV-M4, CSE-101iF, 84W power adapter
×




Detailed Specifications

Primary Information
System TypeServer Barebone
Cabinet Form FactorMini ITX
Processor / TypeXeon
Processor / ManufacturerIntel
Processor / Max Supported Qty1
Mainboard / Chipset TypeIntel CM236
RAM / TechnologyDDR4
RAM / Total Slots Qty2
RAM / Max Supported Size32 GB
Hard Drive / Size3.5"
Hard Drive / Interface TypeSATA III 6Gb/s
Storage Controller TypePCI Express; M.2
RAID LevelRAID 0, 1, 5, 10
Data Link ProtocolGigabit Ethernet
Power / Device TypePower Adapter
Power / Provided (W)84 Watt
Interfaces & Connections4 SATA3 (6Gbps) port(s) 4 RJ45 Gigabit Ethernet LAN ports 5 USB 2.0 port(s) (4 via header; 1 Type A) 4 USB 3.2 Gen1 port(s) (4 rear) 1 DP (DisplayPort) port(s), 1 HDMI port(s), 1 DVI - I port(s) 2 SuperDOM (Disk on Module) port with build power 1 TPM Header
Expansion Slots Total (Free)1 PCIe 3.0 x16 Mini PCIe with mSATA support Bifurcation support on PCIE x16 slot M.2 Interface: SATA Form Factor: 2280, 2242
ModelX11SSV-M4

Special Feature
COOInquire
TAA complianceInquire

UNSPSC Code
UNSPSC Code43211502
