SUPERMICRO COMPUTER SYS-1017R-WR Server Barebones View larger

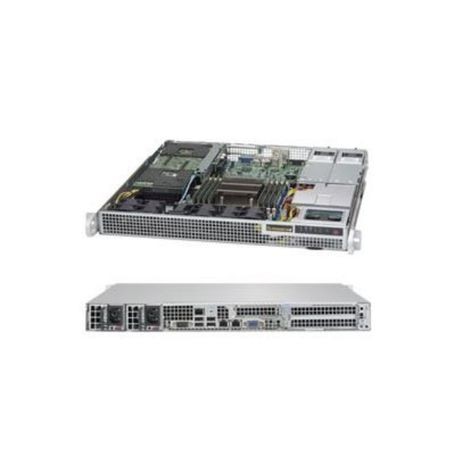

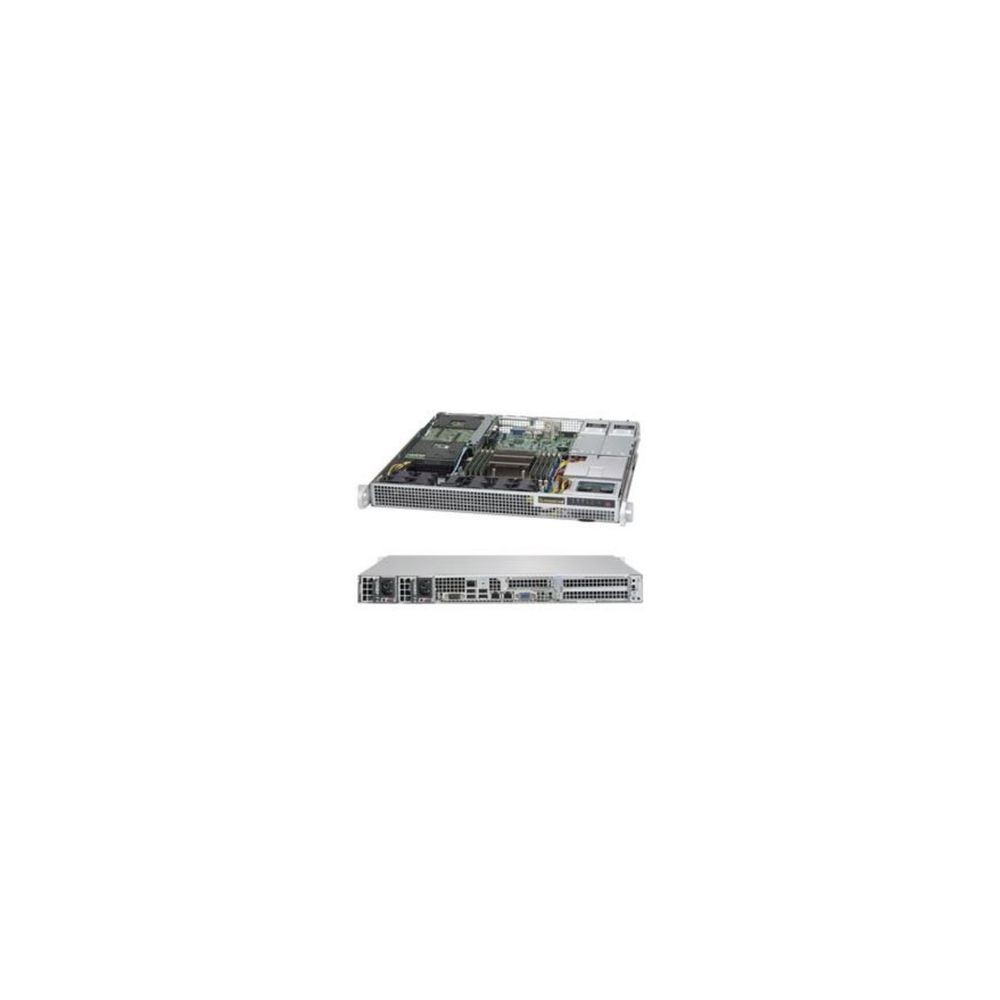

SUPERMICRO COMPUTER SYS-1017R-WR Server Barebones

SYS-1017R-WR

New

Super Server-Intel, (EOL)X9SRW-F, CSE-514-R400WB, no paint - 1U Rackmount - Gigabit Ethernet - Intel Xeon processor E5-2600 and E5-2600 v2 family - 8x 240-pin DDR3 DIMM slots - 400W...
×




Detailed Specifications

Primary Information
System TypeServer Barebone
Cabinet Form Factor1U
Processor / TypeXeon
Processor / ManufacturerIntel
Mainboard / Chipset TypeIntel C602
RAM / TechnologyDDR3
RAM / Total Slots Qty8
RAM / Max Supported Size512 GB
Hard Drive / Size2.5"
Hard Drive / Interface TypeSATA 3
Hard Drive / Bays Qty2
RAID LevelRAID 0, 1, 5, 10
Data Link ProtocolGigabit Ethernet
Power / Device TypePower Supply
Power / Provided (W)400 Watt
Power / Voltage Required100-240V
Interfaces & Connections2x RJ45 LAN ports; 1x RJ45 Dedicated IPMI LAN port; 8x USB 2.0 ports total(4 rear + 4 via headers); 1x VGA port; 1x Fast UART 16550 serial port
Expansion Slots Total (Free)2x PCI-E 3.0 x16 Full-height slots, 1x PCI-E 3.0 x8 Low-profile slot
ModelSYS-1017R-WR
Width17.2 Inch
Depth16.8 Inch
Height1.7 Inch
FeaturesIntel C602 Chipset; 2x 2.5" Fixed SATA3 drive bays; Intel i350 Dual Port Gigabit Ethernet; Integrated IPMI 2.0 and KVM with Dedicated LAN

Special Feature
COOInquire
TAA complianceInquire

UNSPSC Code
UNSPSC Code43211502
