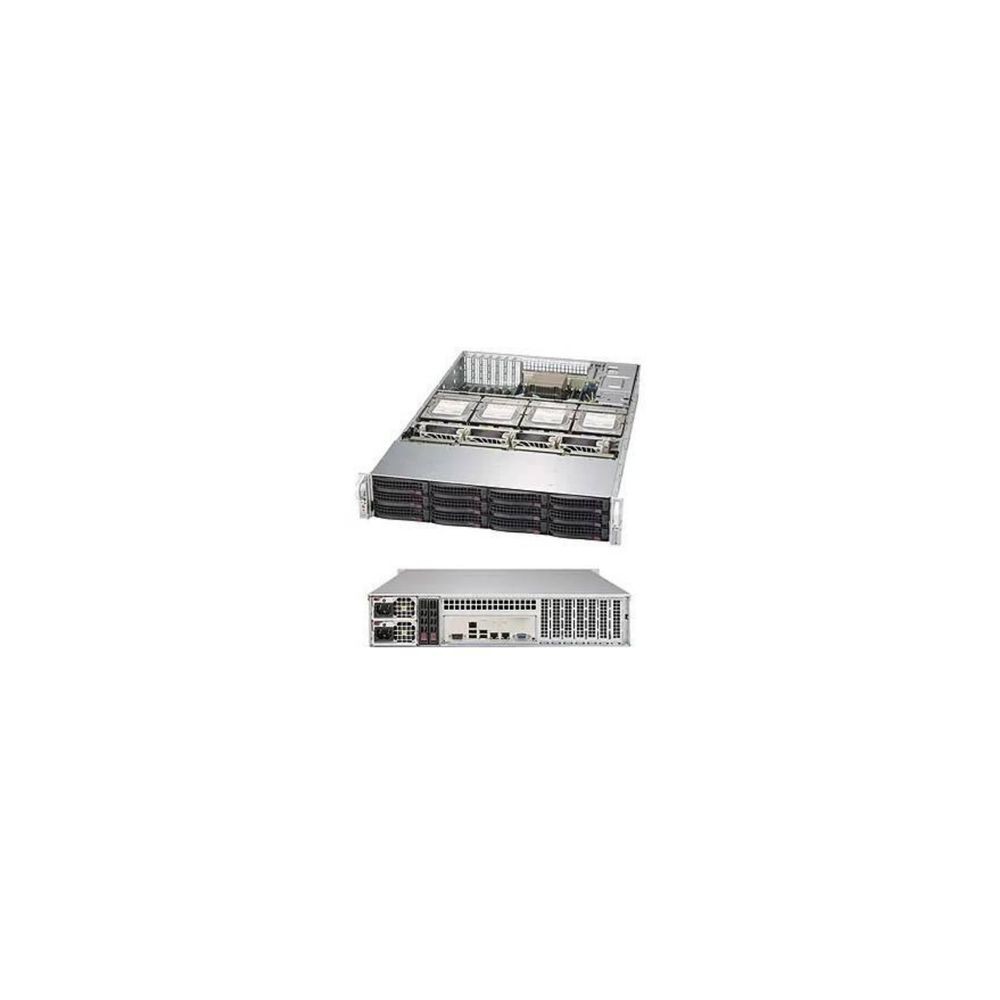

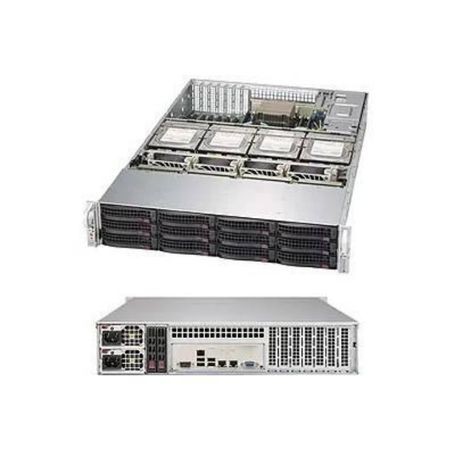

SUPERMICRO COMPUTER SSG-6029P-E1CR16T Server Barebones View larger

SUPERMICRO COMPUTER SSG-6029P-E1CR16T Server Barebones

SSG-6029P-E1CR16T

New

CSE-829HE1C4-R1K62LPB-Server Barebone-2U-Xeon-10 Gigabit Ethernet-Power Supply-Redundant-16 Hot-swap 3.5 SAS3/SATA3 drive bays including 4 optional NVMe drives.2 Hot-swap 2.5 SATA3 drive...
×




Detailed Specifications

Primary Information
System TypeServer Barebone
Cabinet Form Factor2U
Processor / TypeXeon
Processor / ManufacturerIntel
Processor / Max Supported Qty2
Mainboard / Chipset TypeIntel C622
RAM / TechnologyDDR4
RAM / Total Slots Qty16
Hard Drive / Size2.5"; 3.5"
Hard Drive / Interface TypeSATA-3; SAS 3
Hard Drive / Bays Qty4
RAID LevelRAID 0, 1, 5, 6, 10, 50, 60; RAID 0, 1, 5, 10
Data Link Protocol10 Gigabit Ethernet
Power / Device TypePower Supply - Redundant
Power / Provided (W)1600 Watt
Interfaces & ConnectionsLAN: 2 RJ45 10GBase-T LAN ports, 1 RJ45 Dedicated IPMI LAN port, USB : 4 USB 3.0 ports (rear), 1 Type A, Video: 1 VGA port. Serial Port / Header : 1 Fast UART 16550 port / 1 Header
Expansion Bays Total (Free)16 Hot-swap 3.5" SAS3/SATA3 drive bays including 4 optional NVMe drives. 2 Hot-swap 2.5" SATA3 drive bays (rear)
Expansion Slots Total (Free)3 PCI-E 3.0 x16 slot, 4 PCI-E 3.0 x8 slots, Slot 3 occupied by controller
ModelCSE-829HE1C4-R1K62LPB
Width17.2 Inch
Depth27.75 Inch
Height3.5 Inch
Enclosure ColorBlack
RoHSY

Special Feature
COOInquire
TAA complianceInquire

UNSPSC Code
UNSPSC Code43211502
