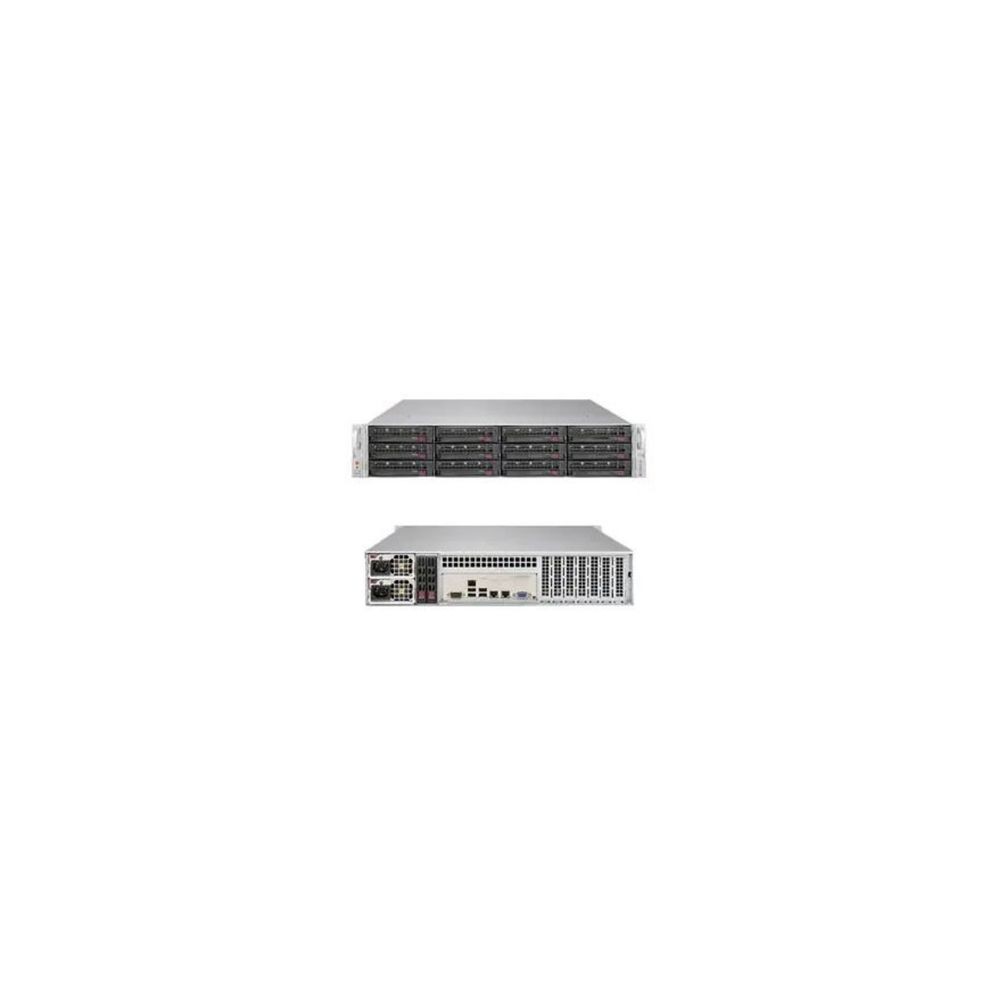

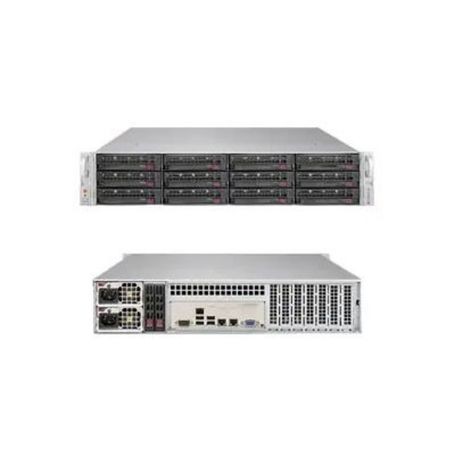

SUPERMICRO COMPUTER SSG-6029P-E1CR12L Server Barebones View larger

SUPERMICRO COMPUTER SSG-6029P-E1CR12L Server Barebones

SSG-6029P-E1CR12L

New

CSE-826BE1C4-R1K23LPB-Server Barebone-2U-Xeon-Gigabit Ethernet-Power Supply-Redundant-12 Hot-swap 3.5 SAS3/SATA3 drive bays 2 Hot-swap 2.5 SATA3 drive bays(rear)
×




Detailed Specifications

Primary Information
System TypeServer Barebone
Cabinet Form Factor2U
Processor / TypeXeon
Processor / ManufacturerIntel
Processor / Max Supported Qty2
Mainboard / Chipset TypeIntel C622
RAM / TechnologyDDR4
RAM / Total Slots Qty16
RAM / Max Supported Size4 TB
Hard Drive / Size2.5"; 3.5"
Hard Drive / Interface TypeSAS/SATA
Hard Drive / Bays Qty14
Storage Controller TypePCI Express
RAID LevelRAID 0, 1, 5, 10
Data Link ProtocolGigabit Ethernet
Power / Device TypePower Supply - Redundant
Power / Provided (W)1200 Watt
Interfaces & Connections2 RJ45 10GBase-T LAN ports 1 RJ45 Dedicated IPMI LAN port 4 USB 3.0 ports (rear) 1 Type A 1 VGA port 1 Fast UART 16550 port / 1 Header
Expansion Bays Total (Free)12 Hot-swap 3.5" SAS3/SATA3 drive bays 2 Hot-swap 2.5" SATA3 drive bays (rear)
Expansion Slots Total (Free)3 PCI-E 3.0 x16 slot 4 PCI-E 3.0 x8 slots Slot 2 & 3 occupied by controller and JBOD expansion port
ModelCSE-826BE1C4-R1K23LPB
Width17.2 Inch
Depth24.8 Inch
Height3.5 Inch
Enclosure ColorBlack
RoHSY

Special Feature
COOInquire
TAA complianceInquire

UNSPSC Code
UNSPSC Code43211502
