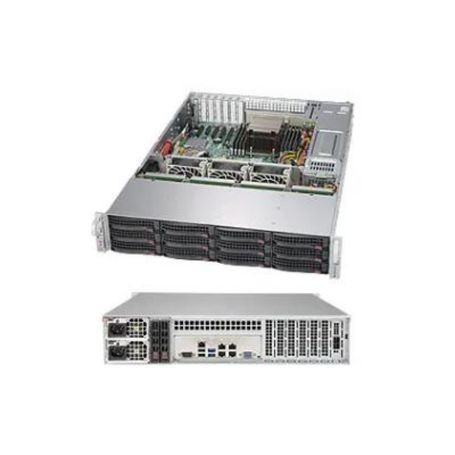

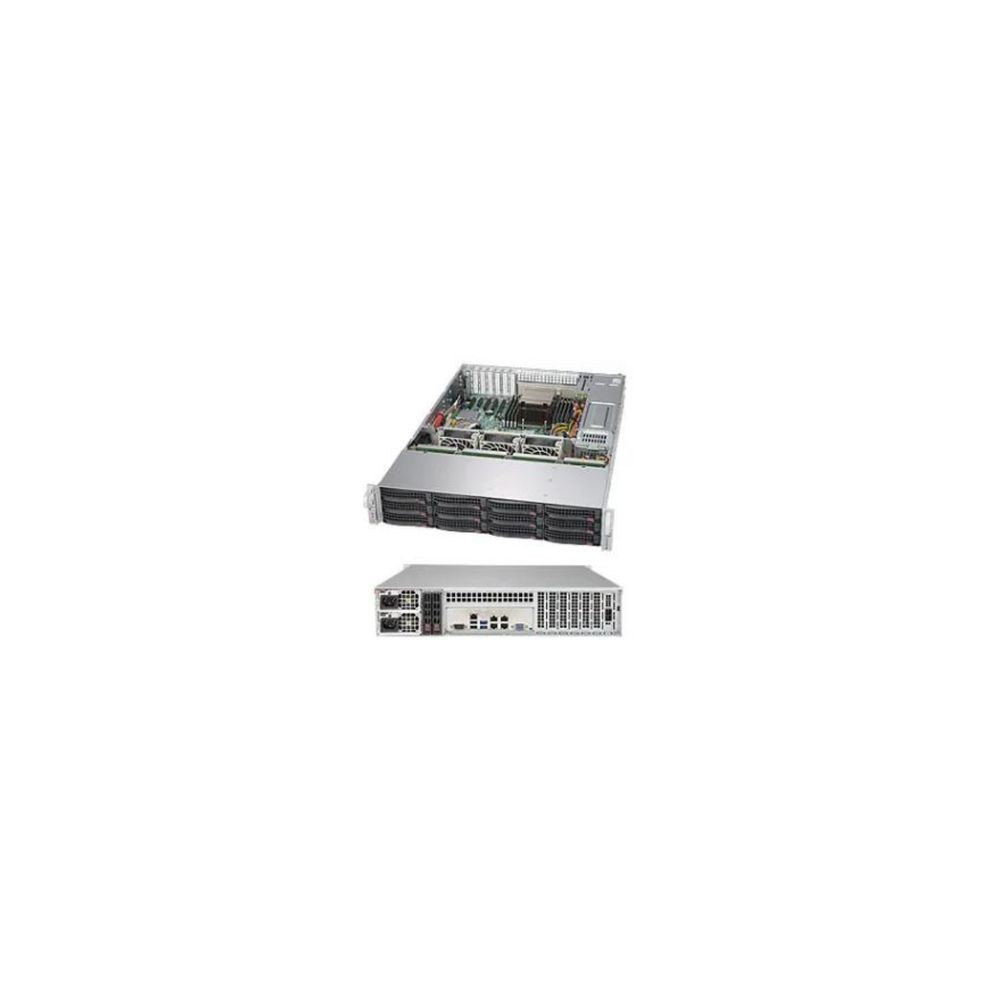

SUPERMICRO COMPUTER SSG-5028R-E1CR12L Server Barebones View larger

SUPERMICRO COMPUTER SSG-5028R-E1CR12L Server Barebones

SSG-5028R-E1CR12L

New

Super Server-Intel, X10SRH-CLN4F, CSE-826BE1C-R920LPB, Black
×




Detailed Specifications

Primary Information
System TypeServer Barebone
Cabinet Form Factor2U
Processor / TypeXeon
Processor / ManufacturerIntel
Mainboard / Chipset TypeIntel C612
RAM / TechnologyDDR4
RAM / Total Slots Qty8
RAM / Max Supported Size1 TB
Hard Drive / Size3.5"
Hard Drive / Interface TypeSAS 3
Hard Drive / Bays Qty12
RAID LevelRAID 0, 1, 10
Data Link ProtocolGigabit Ethernet
Power / Device TypePower Supply
Power / Provided (W)920 Watt
Power / Voltage Required100-240 V, 50-60 Hz
Interfaces & Connections4 RJ45 Gigabit Ethernet LAN ports; 1 RJ45 Dedicated IPMI LAN port; 2 USB 3.0 ports (rear); 2 USB 2.0 ports (rear); 1 VGA port; 1 Fast UART 16550 port / 1 Header
Expansion Slots Total (Free)1 PCI-E 3.0 x4 (in x8) slot; 1 PCI-E 3.0 x8 (in x16) slot; 2 PCI-E 3.0 x8 slots; 1 PCI-E 2.0 x2 (in x4) slot; 1 PCI-E 2.0 x4 (in x8) slot
ModelCSE-826BE1C-R920LPB
Width17.2 Inch
Depth25.6 Inch
Height3.5 Inch
Enclosure ColorBlack
FeaturesServer remote management: IPMI 2.0 / KVM over LAN / Media over LAN; 3x 8cm high-performance PWM fans
RoHSY

Special Feature
COOInquire
TAA complianceInquire

UNSPSC Code
UNSPSC Code43211502
