Overview

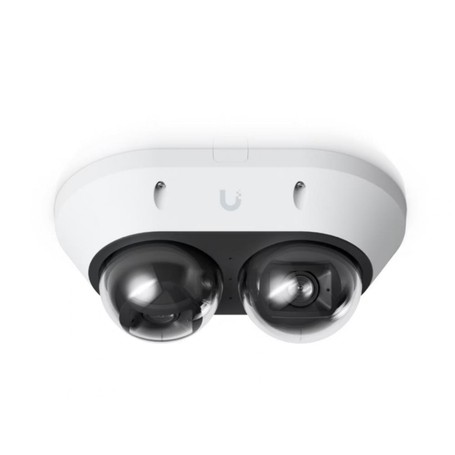

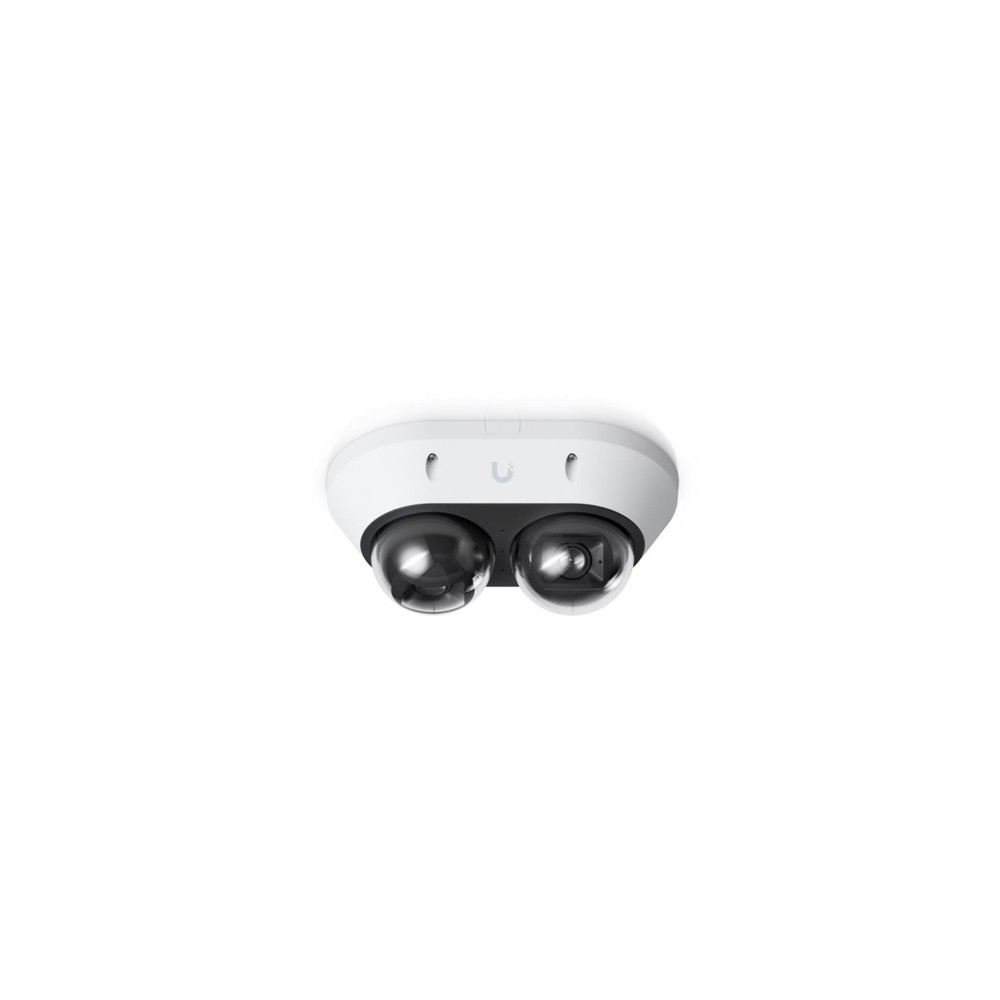

The Ubiquiti UVC-AI-MS-2-W UniFi AI Multi Sensor 2 is a white all-weather multi-sensor security camera with two independently adjustable 8MP image sensors. It combines 16MP total resolution, 2.33x optical zoom, 20m IR night vision, and onboard AI processing for wide-area and close-up monitoring from a single camera. The camera uses PoE+ for power and provides a Gigabit Ethernet network interface.
Dual 8MP Imaging
The AI Multi Sensor 2 uses two 1/2.8-inch 8MP CMOS sensors, each producing 3840 × 2160 video at up to 30 FPS. The two independently adjustable lenses allow the camera to cover different viewing directions while maintaining separate wide and telephoto perspectives.
Optical Zoom and Flexible Coverage
Each camera sensor uses a 3.18–7.42mm f/1.8–f/2.8 lens with 2.33x optical zoom. The specified field of view ranges from 108.8° horizontal, 57.6° vertical, and 130.8° diagonal in wide mode to 42.8° horizontal, 24.1° vertical, and 49.1° diagonal in tele mode.
AI-Powered Detection
The onboard Multi-TOPS AI engine supports face recognition, license plate recognition, and smart detections for people, vehicles, and animals. Processing is performed by the camera's integrated dual-core Arm Cortex-A76-based processor.
IR Night Vision
Built-in adaptive IR LED illumination and an IR cut filter provide night-mode operation with an IR range of up to 20 meters. The camera is therefore equipped for monitoring in changing light conditions without requiring a separate IR illuminator.
Outdoor Protection
The camera is designed for all-weather deployment and carries an IP66 weather-resistance rating together with IK10 impact resistance. Its enclosure combines aluminum alloy and polycarbonate, while the mounting components use polycarbonate and stainless steel.
PoE+ Network Connectivity
A single Gigabit Ethernet RJ45 port provides network connectivity, while PoE+ supplies the camera with power over Ethernet. Maximum power consumption is specified at 25W, with a supported voltage range of 42.5–57V DC.
Local Storage
The camera includes a microSD card expansion slot for on-camera storage. A factory-reset button and status LED are also integrated into the hardware.
Mounting Options
The AI Multi Sensor 2 supports ceiling, wall, and pole mounting. A conduit pipe adapter is included, while specialized arm, pendant, and weather-shield accessories are available separately according to the installation configuration.
Key Features
- 16MP total resolution from two independent 8MP image sensors
- 2.33x optical zoom with independently adjustable lenses
- Multi-TOPS AI engine with face, license plate, people, vehicle, and animal detection
- 20m adaptive IR night vision with IP66 and IK10 protection
- Gigabit Ethernet connectivity with PoE+ power
DC Supplies Product Note
The UVC-AI-MS-2-W uses PoE+ rather than a separate local DC power connector. For deployment planning, the network switch or PoE injector must provide PoE+ power within the camera's specified 42.5–57V DC operating range and allow for up to 25W maximum consumption.
Specifications
| Specification | Details |
|---|
| Brand | Ubiquiti |
| Part Number / MPN | UVC-AI-MS-2-W |
| Product Type | Multi-Sensor Security Camera |
| Product Name | AI Multi Sensor 2 |
| Color | White |
| Total Resolution | 16MP |
| Image Sensors | 2 × 8MP CMOS |
| Sensor Size | 1/2.8 inch |
| Video Resolution | 2 × 3840 × 2160, 16:9 |
| Maximum Frame Rate | 30 FPS |
| Lens | 2 × 3.18–7.42mm, f/1.8–f/2.8 |
| Optical Zoom | 2.33x |
| Wide Field of View | H 108.8°, V 57.6°, D 130.8° |
| Tele Field of View | H 42.8°, V 24.1°, D 49.1° |
| IR Night Vision | 20m |
| AI Engine | Multi-TOPS |
| AI Features | Face Recognition, License Plate Recognition, Smart Detections |
| Smart Detections | People, Vehicles, Animals |
| Networking Interface | 1 × GbE RJ45 |
| Power Method | PoE+ |
| Supported Voltage Range | 42.5–57V DC |
| Maximum Power Consumption | 25W |
| Storage | MicroSD card slot |
| Weather Resistance | IP66 |
| Impact Resistance | IK10 |
| Mounting | Ceiling, Wall, Pole, Conduit Pipe Adapter |
| Dimensions | 218 × 132 × 93.5mm |
| Weight | 1.3kg |
| Enclosure Material | Aluminum alloy, polycarbonate |
| Mount Material | Polycarbonate, stainless steel |
| Processor | Dual-core Arm Cortex-A76-based chip |
| Operating Temperature | -20 to 50°C |
| Operating Humidity | 0–90% noncondensing |
| NDAA Compliant | Yes |
| Certifications | CE, FCC, IC |
Frequently Asked Questions
What is the Ubiquiti UVC-AI-MS-2-W?
It is the white version of the UniFi AI Multi Sensor 2, a 16MP multi-sensor PoE+ camera with two independently adjustable 8MP sensors.
How many cameras or sensors are built into the AI Multi Sensor 2?
The camera contains two 8MP CMOS sensors, providing 16MP total resolution.
What is the optical zoom of the UVC-AI-MS-2-W?
It provides 2.33x optical zoom using 3.18–7.42mm lenses.
How far can the AI Multi Sensor 2 see at night?
The built-in adaptive IR illumination is specified for a range of up to 20 meters.
Does the UVC-AI-MS-2-W support AI recognition?
Yes. Its Multi-TOPS AI engine supports face recognition, license plate recognition, and smart detections for people, vehicles, and animals.
