FORTINET FG-200F FortiGate NETWORK SECURITY/FIREWALL APPLIANCE18 View larger

FORTINET FG-200F FortiGate NETWORK SECURITY/FIREWALL APPLIANCE18

FG-200F

New

FORTINET FG-200F FortiGate  NETWORK SECURITY/FIREWALL APPLIANCE18
×




NETWORK SECURITY, FORTICARE, FG-200F, FortiGate FG-200F, FG-200F access, FG-200F manual, security processors, FORTINET SPU, Security-Driven Networking, FortiGatewifi, FG-200F specs

Detailed Specifications

FORTINET FG-200F FortiGate  NETWORK SECURITY/FIREWALL APPLIANCE18

Overview :

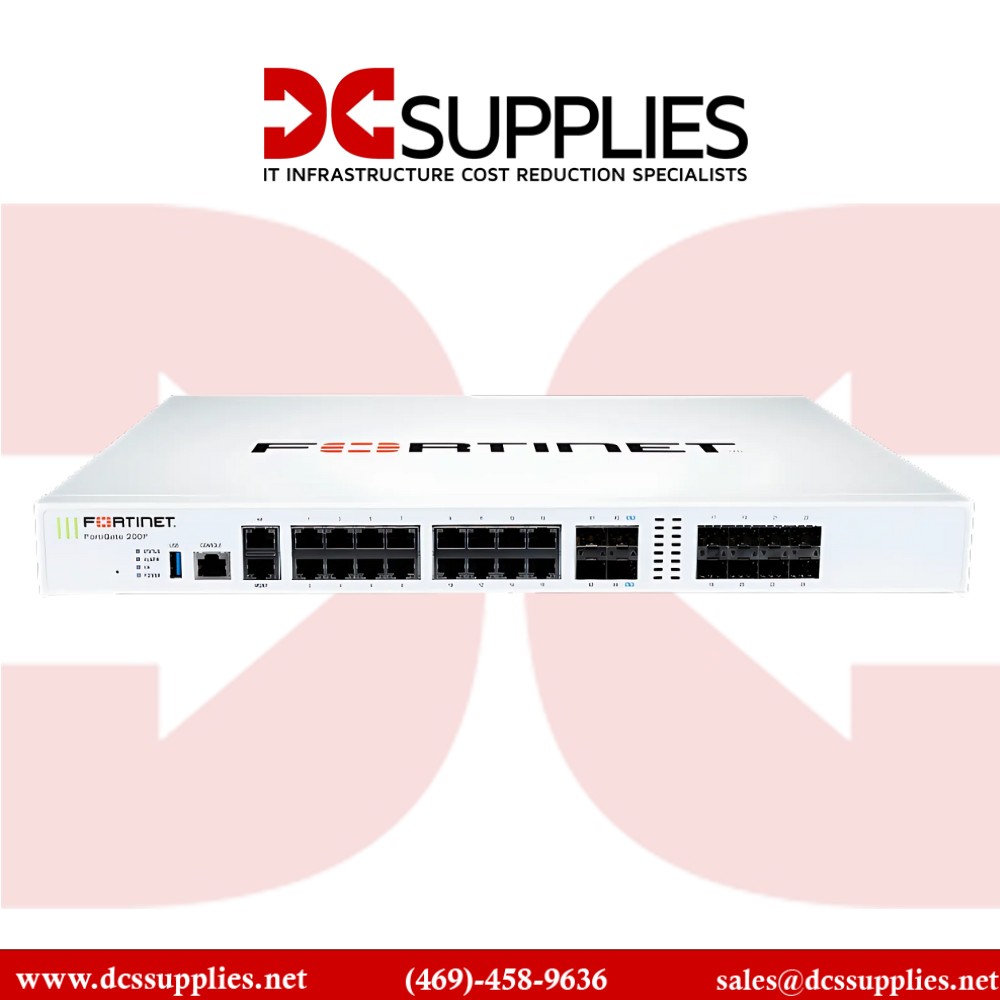

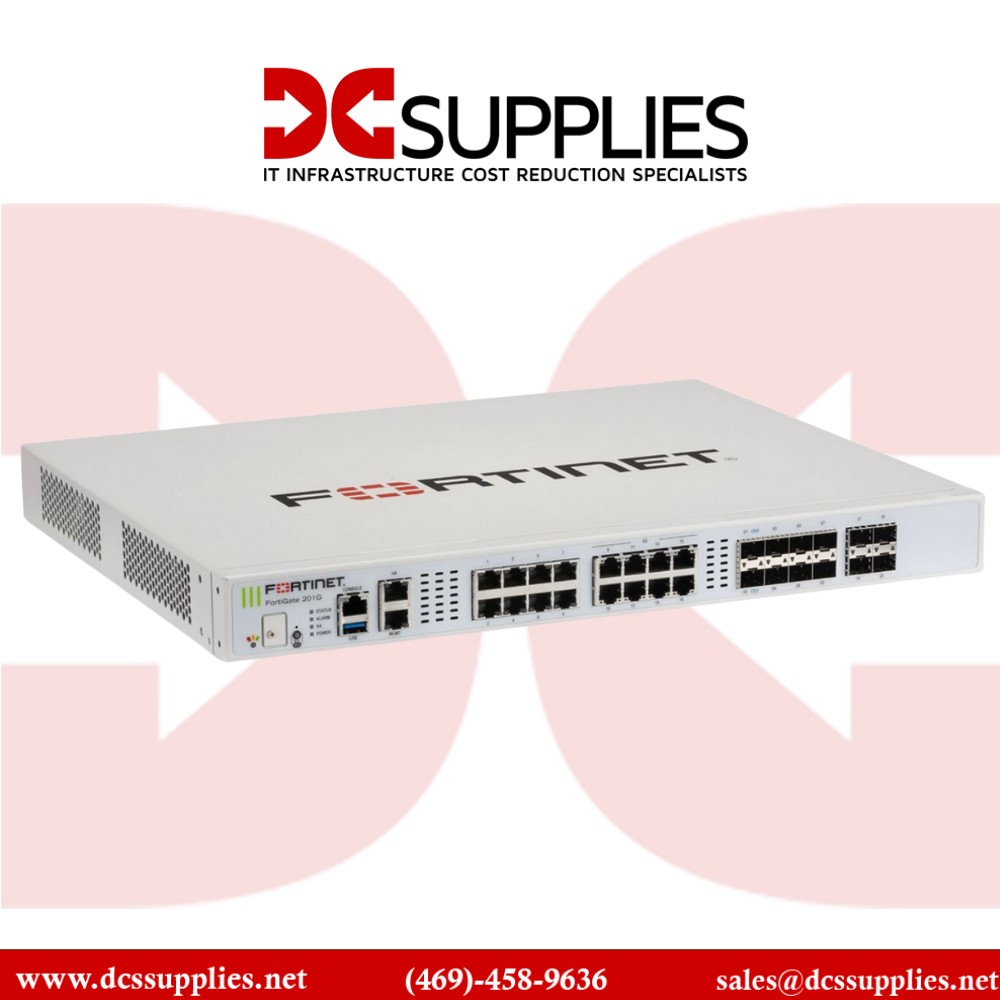

Fortinet FortiGate FG-200F Network Security/Firewall Appliance
The FortiGate 200F series provides an application-centric, scalable, and secure SD-WAN solution with next-generation firewall (NGFW) capabilities for mid-sized to large enterprises deployed at the campus or enterprise branch level. Protects against cyber threats with system-on-a-chip acceleration and industry-leading secure SD-WAN in a simple, affordable, and easy-to-deploy solution. Fortinet’s Security-Driven Networking approach provides tight integration of the network to the new generation of security.

Specifications :

FortiGate 200FFortiGate 201E

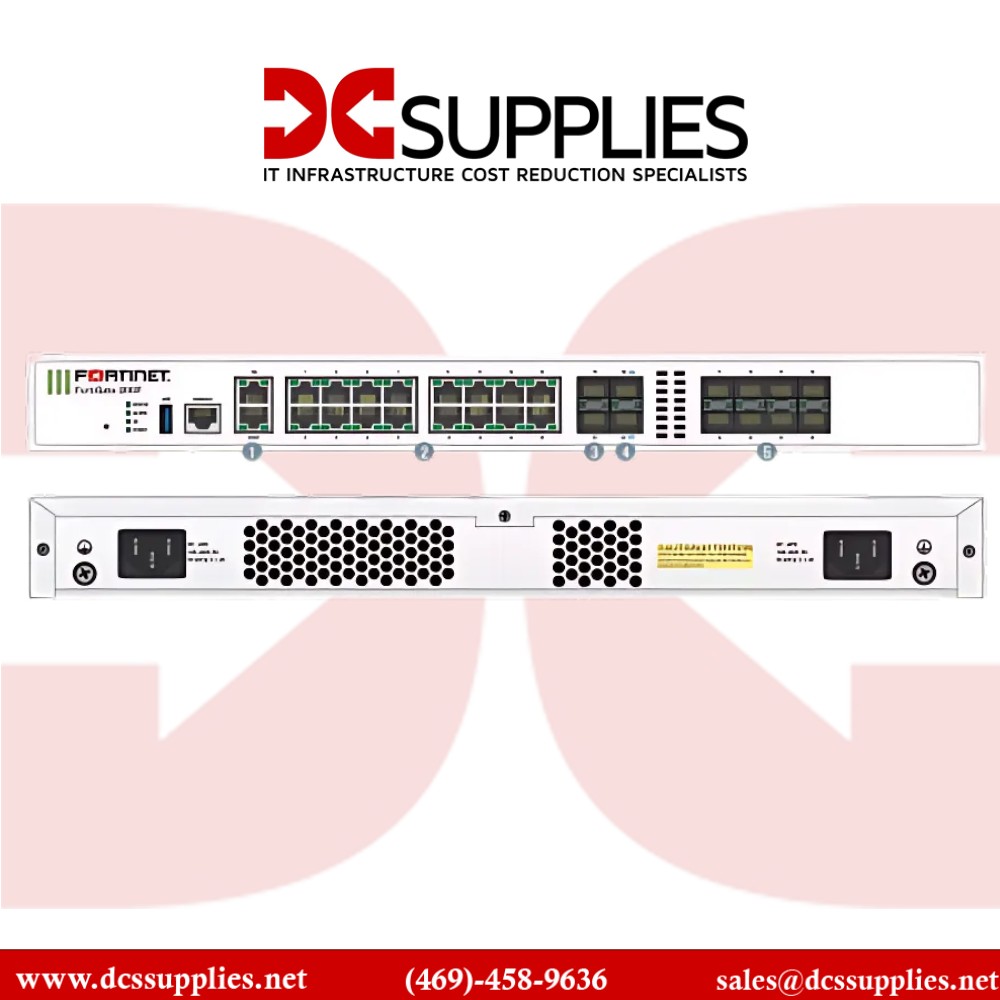

Hardware Specifications
GE RJ45 Ports 16
GE RJ45 Management/HA 1 / 1
GE SFP Slots 8
10GE SFP+ FortiLink Slots (default) 2
10GE SFP+ Slots 2
USB Port 1
Console Port 1
Internal Storage - 1x 480 GB SSD
Included Transceivers 0
System Performance — Enterprise Traffic Mix
IPS Throughput 5 Gbps
NGFW Throughput 3.5 Gbps
Threat Protection Throughput 3 Gbps
System Performance
Firewall Throughput (1518 / 512 / 64 byte UDP packets) 27 / 27 / 11 Gbps
Firewall Latency (64 byte UDP packets) 4.78 μs
Firewall Throughput (Packets Per Second) 16.5 Mpps
Concurrent Sessions (TCP) 3 Million
New Sessions/Second (TCP) 280,000
Firewall Policies 10,000
IPsec VPN Throughput (512 byte) 13 Gbps
Gateway-to-Gateway IPsec VPN Tunnels 2,500
Client-to-Gateway IPsec VPN Tunnels 16,000
SSL-VPN Throughput 2 Gbps
Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) 500
SSL Inspection Throughput (IPS, avg. HTTPS) 4 Gbps
SSL Inspection CPS (IPS, avg. HTTPS) 3,500
SSL Inspection Concurrent Session (IPS, avg. HTTPS) 300,000
Application Control Throughput (HTTP 64K) 13 Gbps
CAPWAP Throughput (HTTP 64K) 20 Gbps
Virtual Domains (Default / Maximum) 10 / 10
Maximum Number of FortiSwitches Supported 64
Maximum Number of FortiAPs (Total / Tunnel Mode) 256 / 128
Maximum Number of FortiTokens 5,000
High Availability Configurations Active / Active, Active / Passive, Clustering
Dimensions
Height x Width x Length (inches) 1.73 x 17.01 x 13.47
Height x Width x Length (mm) 44 x 432 x 342
Form Factor (supports EIA / non-EIA standards) Ear Mount, 1 RU
Weight 9.92 lbs (4.5 kg) 10.14 lbs (4.6 kg)
Environment
Power Required 100–240V AC, 50-60 Hz
Maximum Current 100V / 2A, 240V / 1.2A
Power Consumption (Average / Maximum) 101.92 W / 118.90 W 104.52 W / 121.94 W
Heat Dissipation 405.70 BTU/h 436.98 BTU/h
Redundant Power Supplies Yes
Operating Temperature 32–104°F (0–40°C)
Storage Temperature -31–158°F (-35–70°C)
Operating Altitude Up to 7,400 ft (2,250 m)
Humidity 20–90% non-condensing
Noise Level 49.9 dBA
Compliance FCC Part 15B, Class A, CE, RCM, VCCI, UL/cUL, CB, BSMI
Certifications ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN, IPv6
