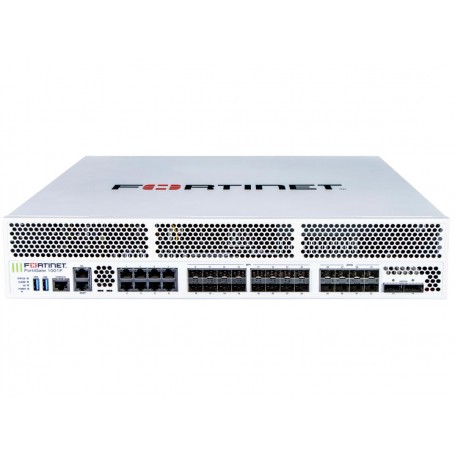

Fortinet FG-1001F-BDL-809-12 FortiGate 1001F Security Appliance

New

High-performance 2U rackmount firewall with comprehensive 1-year support.
×




  • New

Detailed Specifications

Fortinet FortiGate 1001F

Security Appliance with 1-Year FortiCare Premium Support & FortiGuard Enterprise Protection

The FortiGate 1001F is a high-performance next-generation Firewalloptimized for large enterprises and service providers. Bundled with 1 year of FortiCare Premium Support and FortiGuard Enterprise Protection, it delivers comprehensive security capabilities including intrusion prevention, antivirus, application control, and web filtering to defend against sophisticated cyber threats.

Features :

Powered by Fortinet’s NP7 and CP9 Security Processing Units (SPUs), the FortiGate 1001F delivers up to 201 Gbps Firewall, 19 Gbps IPS, 15 Gbps NGFW, and 13 Gbps threat Protectionthroughput. Its extensive I/O portfolio includes 2× 100GE QSFP28, 8× 25GE SFP28, 16× 10GE SFP+, and 8× 10GE BASE-T RJ45 ports for maximum deployment flexibility in data‑intensive enterprise environments.

Advanced Options :

The appliance includes dual 960GB SSDs for redundant, high‑speed storage to ensure logging and configurations are always protected. FortiCare Premium Support provides 24/7 access to top‑tier technical assistance and ongoing firmware updates, while FortiGuard Enterprise Protectiondelivers a full stack of advanced security services. The TAA-compliant 2U rackmount chassis with front‑to‑back airflow provides efficient cooling and fits seamlessly into existing data center racks.

Product Key Features

  • 2× 100GE QSFP28, 8× 25GE SFP28, 16× 10GE SFP+, and 8× 10GE BASE-T RJ45 ports
  • Dual 960GB SSD storage with NP7 & CP9 hardware acceleration
  • 1-Year FortiCare Premium + 1-Year FortiGuard Enterprise Protection
  • TAA Compliant for U.S. government procurement
  • 2U rackmount chassis with front-to-back airflow cooling
  • Hyperscale-ready performance with ultra-low latency

Reliability & Performance :

Built for mission‑critical uptime, the FortiGate 1001F employs dual SSD redundancy, SPU acceleration, and robust TAA-compliant hardware for maximum reliability. With sub‑3.5 microsecond latency and high throughput across all security functions, it powers demanding enterprise workloads with consistent performance and efficiency. The appliance’s thermal design ensures stable operation in round‑the‑clock deployments.

Key Features :

  • Up to 201 Gbps Firewallthroughput with 19 Gbps IPS
  • Broad interface mix: 2× 100GE, 8× 25GE, 16× 10GE SFP+, 8× 10GE BASE-T
  • Dual 960GB SSD with NP7 & CP9 processors for acceleration
  • 1-Year FortiCare Premium & FortiGuard Enterprise Protection
  • TAA Compliance for U.S. government use
  • 2U rackmount with optimized airflow design

Specifications :

SpecificationDetails
Model Number FG-1001F-BDL-809-12
Product Type High-Performance Next-Generation Firewall
Form Factor 2U Rack-Mountable
Network Interfaces 2× 100GE QSFP28, 8× 25GE SFP28, 16× 10GE SFP+, 8× 10GE BASE-T RJ45 Ports
Storage Dual 960GB SSD
Throughput Up to 201 Gbps Firewall, 19 Gbps IPS, 15 Gbps NGFW, 13 Gbps Threat Protection
Latency <3.45 μs
Power Consumption ~300W
Dimensions (H×W×D) 8.7 cm × 43.8 cm × 60.9 cm (3.4" × 17.2" × 24")
Weight ~22.71 kg (50 lbs)
Operating Temperature 0°C to 40°C
Humidity 10% to 85% (non-condensing)
Compliance Standards UL, CE, FCC Part 15 A, RCM, TAA Compliant
Warranty & Support 1-Year FortiCare Premium Support and 1-Year FortiGuard Enterprise Protection
