Fortinet FG-601E-USG FortiGate 601E Security Appliance TAA Compliant

New

High-throughput enterprise rack-mount firewall

×




  • New

Detailed Specifications

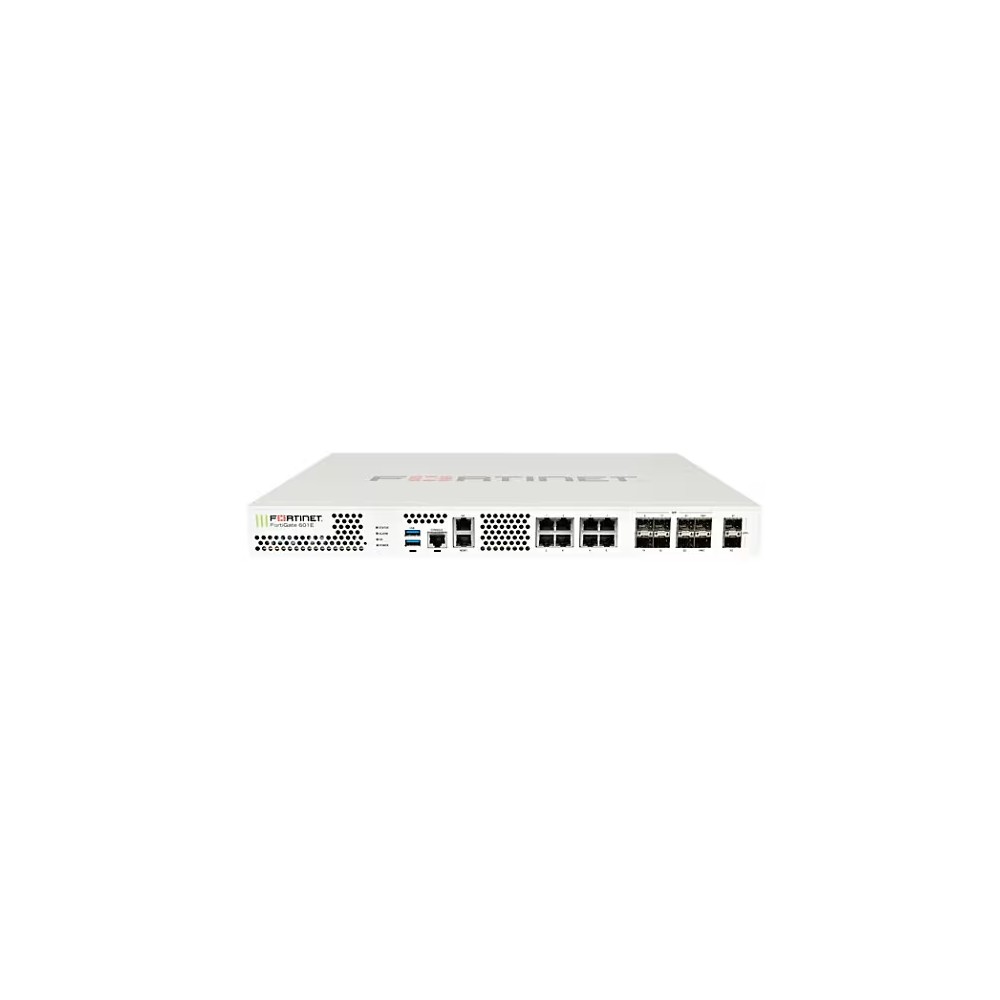

Fortinet FG-601E-USG FortiGate 601E

1U Security Appliance with High Throughput & TAA Compliance

The Fortinet FG-601E-USG FortiGate 601E is a rack-mountable, high-performance next-generation firewall engineered for mid- to large-scale enterprise and government environments. It delivers heavyweight security throughput, versatile connectivity options, and TAA compliance—making it perfect for complex campus or branch deployments that demand robust protection, scalability, and efficient management.

Features :

Built with Fortinet SPU-accelerated architecture, the FortiGate 601E delivers exceptional firewall throughput—up to 36 Gbps—even under heavy loads, with minimal latency. Connectivity is abundant: two 10 GbE SFP+ slots, eight GE SFP slots, eight GE RJ-45 ports, plus dedicated management and HA ports. There’s also console access, USB, and dual 240 GB SSDs onboard for storage-intensive functions like logging and caching.

Advanced security & Scalability :

On the security side, the FortiGate 601E delivers full next-gen firewall capabilities, with IPS capacity of 10 Gbps and threat protection up to 7 Gbps. It provides robust VPN capabilities—including up to 20 Gbps IPsec throughput and 7 Gbps SSL-VPN—supporting up to 10,000 concurrent SSL-VPN users and an impressive 8 million concurrent sessions. It also enables advanced features like application control and CAPWAP for integrated wireless management, making it a comprehensive solution for complex networks.

Product Key Features

  • 1 RU rack-mount design, TAA compliant
  • High throughput: Stateful 36 Gbps, IPS 10 Gbps, NGFW 9.5 Gbps
  • Rich connectivity: 2× 10 GbE SFP+, 8× GE SFP, 8× GE RJ-45, MGMT/HA ports
  • Dual onboard 240 GB SSD storage for logging and caching
  • Powerful SPU-accelerated performance with ultra-low latency
  • Supports large-scale VPN, SSL inspection, and virtual domains

Reliability & Performance :

With purpose-built hardware acceleration via Fortinet SPU (NP6 and CP9), the FortiGate 601E delivers industry-leading performance without compromising security efficacy, even in mixed traffic environments. The 1 RU chassis is optimized for efficient cooling and rack density. Dual SSDs offer redundancy and fast storage, while management and HA ports enable smooth integration into complex high-availability networks. TAA compliance further ensures suitability for U.S. government and regulated environments.

Key Features :

  • 1 RU rack-mountable design, TAA compliant
  • Exceptional throughput: 36 Gbps firewall, 10 Gbps IPS, 9.5 Gbps NGFW
  • Extensive interface options with multi-Gigabit and SFP connectivity
  • Dual 240 GB SSD storage for performance and log resilience
  • Supports high-capacity VPNs, massive concurrent sessions, and SSL inspection
  • FortiASIC SPU-powered low-latency performance

Specifications :

SpecificationDetails
Model Number FG-601E-USG
Type Rack-mount Next-Gen Firewall Appliance
Firewall Throughput 36 Gbps (1518/512/64-byte UDP)
IPS Throughput 10 Gbps (Enterprise Traffic Mix)
NGFW Throughput 9.5 Gbps (Enterprise Traffic Mix)
Threat Protection Throughput 7 Gbps (Enterprise Traffic Mix)
VPN Throughput (IPsec / SSL) ~20 Gbps / 7 Gbps
SSL Inspection Throughput 8 Gbps
Application Control Throughput 15 Gbps
CAPWAP Throughput 18 Gbps
Concurrent Sessions Up to 8 million
New Sessions per Second ~450,000
SSL-VPN Concurrent Users Up to 10,000
Interfaces 2× 10 GbE SFP+; 8× GE SFP; 8× GE RJ-45; 2× GE RJ-45 Mgmt/HA; USB; Console
Storage 2× 240 GB SSD
Hardware Acceleration SPU (NP6 & CP9)
Form Factor 1 RU Rack-mount
Operating Power / Consumption 100–240 V AC; power consumption avg/max ~129 W/244 W
Dimensions 1.75″ × 17″ × 15″ (44.45 × 432 × 380 mm)
Environmental Specs Operating: 0–40 °C; Storage: –35–70 °C; Humidity: 10–90% non-condensing
Compliance & Certifications TAA compliant; ICSA, CE, UL/cUL, FCC, VCCI, C-Tick, CB, etc.
Virtual Domains 10 (default / max)
FortiAPs / FortiSwitches Maximum FortiAP: 1024 total / 512 tunnel; FortiSwitch: 64
High Availability Active-Active, Active-Passive, Clustering
