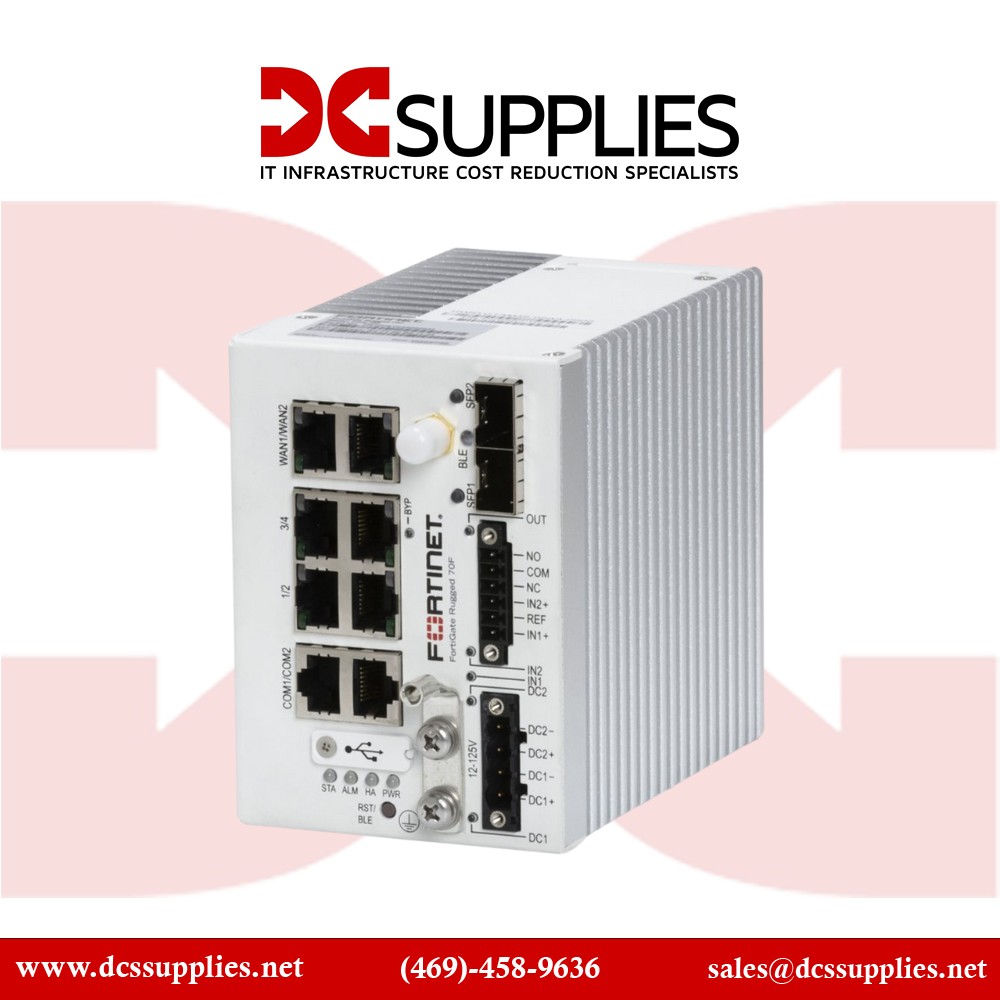

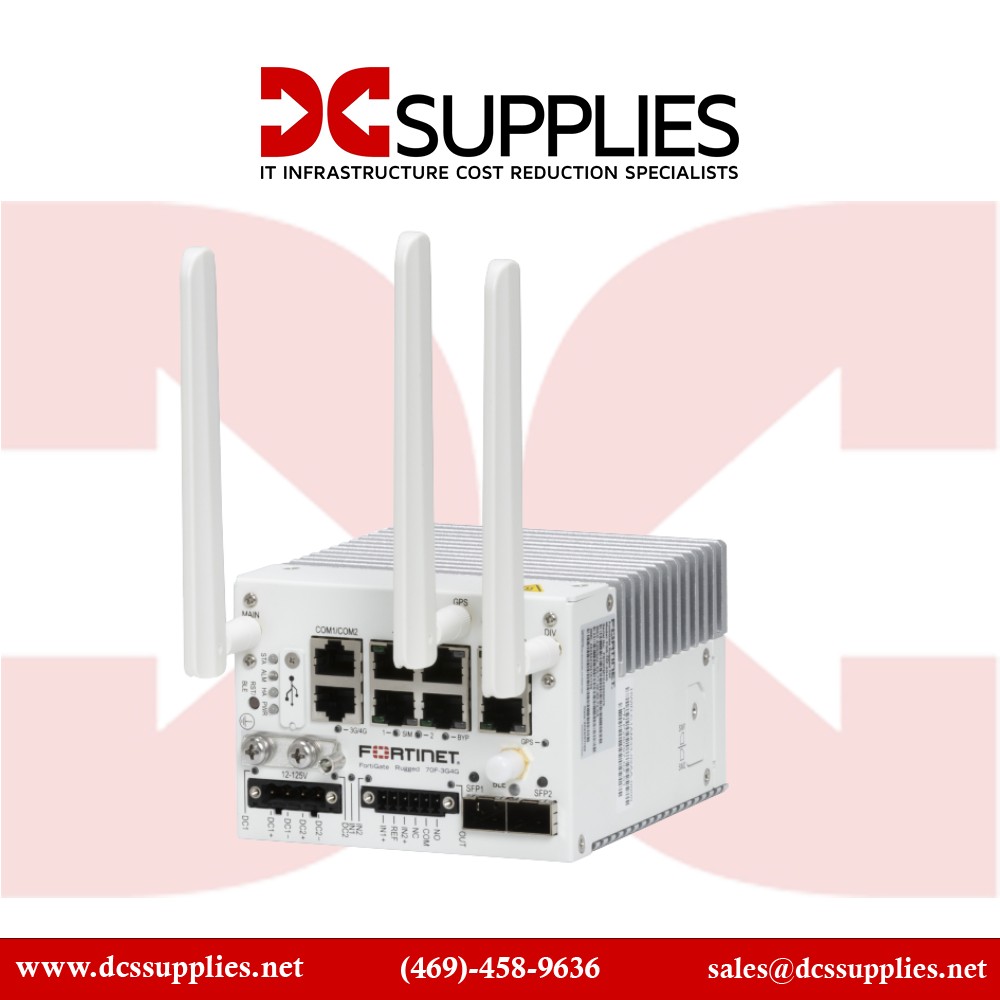

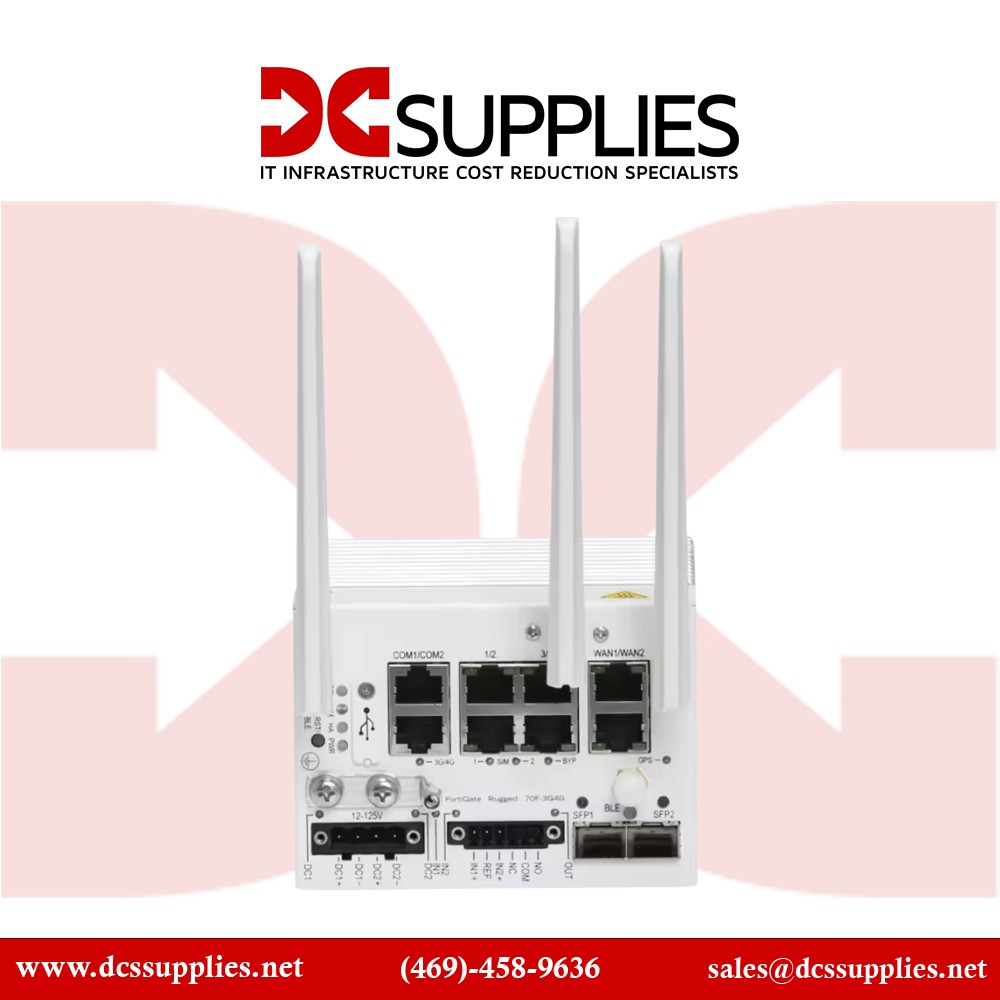

Fortinet FGR-70G-5G-DUAL-BDL-809-36 FortiGate Security Appliance

Fortinet FGR-70G-5G-DUAL-BDL-809-36

Rugged 5G Security Appliance with 3-Year Support

The Fortinet FGR-70G-5G-Dual is an industrial-grade security appliance engineered for extreme environments. Ideal for enterprise and OT (operational technology) deployments, it delivers robust wired and wireless network protection with dual 5G modems. It ensures reliable, scalable, and secure connectivity with seamless integration into Fortinet Security Fabric×and benefits from extended 3-year support for long-term resilience.

Features :

Built to endure rugged industrial conditions, the FortiGate Rugged 70G-5G-Dual mounts conveniently on DIN-rails and boasts wide-temperature operation from -40 °C to 75 °C along with IP40 ingress protection. It offers a versatile array of ports: 4 GE RJ-45 LAN, 2 GE RJ-45 WAN, 2 SFP slots, a bypass pair, serial console/data ports, USB and micro-SD, along with digital I/O and BLE support.

Advanced Connectivity & Security :

Equipped with dual embedded 5G cellular modems (active/active SIMs), GPS, and multiple external SMA antennas, the device ensures secure, high-speed wireless WAN in remote or mobile scenarios. On the Security front, the Applianceincludes next-gen firewall features×IPS, URL filtering, anti-malware×plus SD-WAN capabilities, TLS 1.3, AES-256 encryption, and integration with FortiAP/FortiSwitch ecosystems. It's cloud-managed and backed by a 3-year bundle of FortiCare Premium and FortiGuard Enterprise Protection for consistent policy enforcement and threat intelligence. Certified for industrial use, it complies with standards like IEC 61850-3 and IEEE 1613, making it fit for deployment in rail, energy, factory automation, and critical infrastructure environments.

Product Key Features

• Rugged DIN-rail design with IP40 rating
• Dual embedded 5G modems with GPS and active/active SIM
• Fan-less, wide-temperature support from -40 °C to +75 °C
• Multiple wired ports: GE LAN/WAN, SFP, bypass
• Advanced security: IPS, URL filtering, SD-WAN, FortiGuard
• Cloud-managed with 3-year FortiCare & FortiGuard bundle

---

Reliability & Performance :

Engineered for industrial reliability, this unit features a fan-less, rugged build, wide-temperature tolerance, IP40 protection, and redundant power inputs for continuous operation. Its FortiSP5 processor ensures high throughput×IPS up to ~2.5 Gbps, NGFW ~1.5 Gbps, ATP ~1.1 Gbps×without compromising Security performance. The wide range of wired and wireless interfaces, active/active SIM redundancy, and cloud-based management ensure compatibility and flexibility across demanding IT and OT environments.

Key Features :

• Rugged DIN-rail, fan-free, wide-temperature operating design
• Dual 5G modems, GPS, active/active SIM setup, BLE, and micro-SD
• Rich connectivity: GE LAN/WAN, SFP, bypass, USB, serial, digital I/O
• Advanced Security : NGFW, IPS, URL filtering, SD-WAN, AES-256/TLS 1.3
• Cloud-managed, 3-year support (FortiCare Premium + FortiGuard)
• Industrial certifications and standards compliance for harsh environments

Specifications :

Specification	Details
Model Number	FGR-70G-5G-DUAL-BDL-809-36
Type	Rugged Security/Firewall Appliance
Connectivity	5G (dual), LTE, UMTS/HSPA+, GE Ethernet, SFP, BLE, GPS
Throughput (IPS/NGFW/ATP)	~2.5 Gbps / ~1.5 Gbps / ~1.1 Gbps
Concurrent Sessions	~1.4 million
Ports	4x GE LAN, 2x GE WAN, 2x SFP, bypass pair, USB, serial, console, micro-SD, digital I/O
Form Factor	DIN-rail mountable, fan-less, IP40
Power	Dual redundant power inputs (12V-125V DC)
Operating Temp / Humidity	-40 °C to 75 °C; 5-95% non-condensing humidity
Security Features	NGFW, IPS, URL Filtering, Anti-Malware, SD-WAN, AES-256, TLS 1.3
Management & Support	Cloud-managed; 3-Year FortiCare Premium & FortiGuard Enterprise
Certifications	IEC 61850-3, IEEE 1613, EN 55032/35, FCC, UL/cUL, CE, RCM, VCCI
