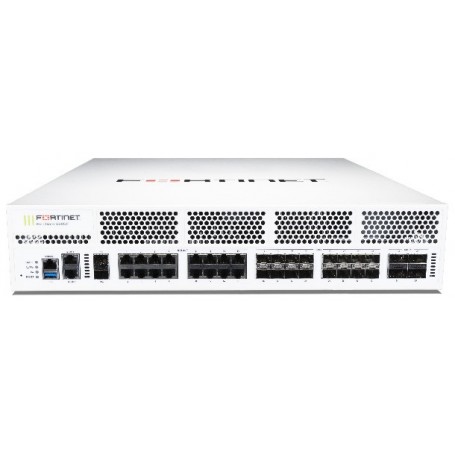

Fortinet FG-2600F FortiGate 2600F Security Appliance

New

High-performance rack firewall with multi-GbE interfaces
×




  • New

Detailed Specifications

Fortinet FortiGate 2600F

2U Rack-Mount Network Security Appliance – 40/100/25 GbE, Ultra-High Performance NGFW

The Fortinet FortiGate 2600F is a high-capacity, 2RU rack-mount next-generation firewall appliance engineered for data centers, service providers, and demanding large enterprise deployments. With hardware-accelerated SPU CP9/NP7 processing, extensive multi‑gigabit port options, and performance up to 198 Gbps firewall throughput, it is built for mission-critical environments requiring scalability, redundancy, and deep security inspection.

Features :

Designed around Fortinet’s custom SPU architecture, the FG‑2600F delivers near wire‑speed performance across NGFW functions including IPS (24 Gbps), NGFW inspection (19 Gbps), threat protection (17 Gbps), and SSL inspection (20 Gbps). Its high port density includes 4× 100/40 GbE QSFP28 slots, 16× up‑to‑25 GbE SFP/SFP+/SFP28 ports, and 16× 1/10 GbE RJ‑45, alongside dedicated management, HA, USB, and console interfaces—enabling flexible deployments across LAN, WAN, and data center fabrics.

Advanced Options :

FortiOS powers extensive policy control with a full suite of NGFW features including ZTNA, application control, IPS, SSL inspection, and secure VPN services. With up to 24 million concurrent TCP sessions and support for 30,000 concurrent SSL VPN users, it is optimized for high-volume, secure connectivity. All services integrate with the Fortinet Security Fabric for centralized management and real-time threat intelligence via FortiGuard.

Product Key Features

  • Ultra-high throughput: up to 198 Gbps firewall capacity
  • Dense multi‑gigabit port mix: 100/40/25/10/1 GbE options
  • Dual hot‑swappable internal AC power supplies
  • Full NGFW functionality including ZTNA, IPS, and SSL inspection
  • Hardware‑accelerated SPU CP9/NP7 ensures low latency
  • Supports millions of concurrent sessions and large VPN capacity

Reliability & Performance :

Enterprise‑built for maximum uptime, the FortiGate 2600F includes dual hot‑plug PSUs, front‑to‑back airflow for optimal rack cooling, and a high‑MTBF chassis design. Fortinet’s CP9/NP7 Security Processing Units deliver sub‑4 µs latency for 64‑byte frames while maintaining peak throughput across all enabled security services. Certified to ICSA and other global standards, and backed by FortiGuard and FortiCare, it guarantees sustained, secure performance in mission‑critical environments.

Key Features :

  • Firewall throughput: up to 198 Gbps (UDP 1518‑byte)
  • 24 million concurrent TCP sessions
  • Up to 30,000 concurrent SSL VPN users
  • Dedicated hardware security processors (CP9 and NP7)
  • Comprehensive certifications including ICSA, UL, CE, FCC, USGv6

Specifications :

SpecificationDetails
Model Number FG-2600F
Product Type Network Security Appliance / NGFW
Firewall Throughput (UDP) Up to 198 Gbps (1518‑byte)
IPS Throughput 24 Gbps (enterprise mix)
NGFW Throughput 19 Gbps (enterprise mix)
Threat Protection Throughput 17 Gbps
SSL Inspection Throughput 20 Gbps
IPsec VPN Throughput 55 Gbps (512‑bit)
Ports 4× QSFP28/QSFP+ (100/40 GbE), 16× SFP/SFP+/SFP28 (up to 25 GbE), 16× RJ‑45 (1/10 GbE), 2× MGMT RJ‑45, 2× HA SFP/SFP+, 1× USB 3.0, 1× Console RJ‑45
Form Factor 2 RU Rack‑Mountable
Power Supply Dual internal hot‑plug AC (100–240 V)
Power Consumption (Avg/Max) ~416 W / ~510 W
Dimensions (H×W×D) 3.5″ × 17.25″ × 21.1″ (88.4 × 438 × 536 mm)
Weight ~30.6 lbs (13.9 kg)
Concurrent TCP Sessions Up to 24 million
SSL VPN Users (Concurrent) Up to 30,000
VPN Tunnels (Gateway / Client) 20,000 / 100,000
Virtual Domains (Default / Max) 10 / 500
Certifications ICSA Firewall, IPSec, SSL-VPN, Antivirus; UL, CE, FCC, USGv6, etc.
Security Processors FortiASIC CP9 / NP7
Operating Temperature 0–40 °C (32–104 °F); Humidity 10–90% non‑condensing
