Detailed Specifications

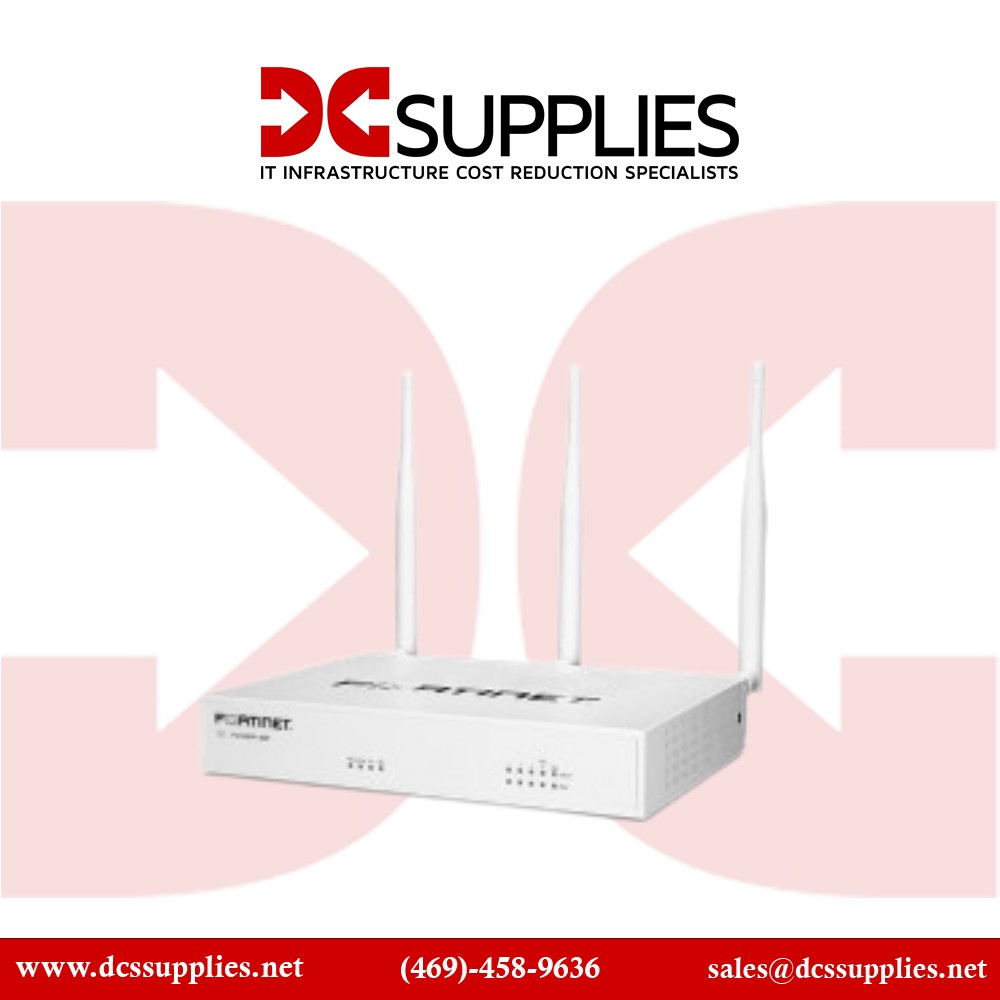

Fortinet FortiWiFi 40F-3G4G
Security Appliance - Wi-Fi 5, Integrated 3G/4G LTE, SD-WAN, Compact Desktop
The Fortinet FortiWiFi 40F-3G4G is a compact, all-in-one security appliance that combines wired and wireless networking with advanced SD-WAN features. With built-in 3G/4G LTE connectivity and dual-band Wi-Fi 5, it enables high-performance, secure access for small offices, branch locations, and business environments requiring wired and wireless resiliency.
Features :
Powered by FortiOS and part of the Fortinet Security Fabric, the FortiWiFi 40F-3G4G delivers integrated next-generation firewall (NGFW), SD-WAN, and wireless services in a single desktop device. The embedded 3G/4G LTE modem provides WAN failover for improved reliability, while dual-band 802.11ac Wave 2 Wi-Fi ensures strong, multi-device coverage.
Advanced Options :
Its advanced security capabilities include intrusion prevention, SSL inspection, antivirus, web filtering, and application control × all supported by FortiGuard AI-powered threat intelligence. Centralized management via FortiManager or FortiCloud streamlines configuration, monitoring, and policy enforcement across distributed sites.
Product Key Features
- Integrated 3G/4G LTE modem for WAN redundancy
- Dual-band Wi-Fi 5 (802.11ac Wave 2) wireless support
- Fan-less, compact desktop form factor
- High performance: up to 1 Gbps IPS, 800 Mbps NGFW
- Comprehensive SD-WAN and security-driven networking
- Five GE RJ45 ports (1 WAN, 4 internal switch ports)
Reliability & Performance :
Engineered for efficiency and durability, the FWF-40F-3G4G features a fan-less, solid-state design and high MTBF components for quiet, reliable operation. Its SoC architecture provides excellent performance-per-watt, while support for FortiCare and FortiGuard services ensures ongoing security updates and long-term protection.
Key Features :
- Embedded 3G/4G LTE modem with external SMA antennas
- Dual-band 802.11ac Wave 2 wireless (2.4 GHz & 5 GHz)
- IPS throughput up to 1 Gbps; NGFW up to 800 Mbps
- Fan-less desktop design with small footprint
- Five GE RJ45 ports for WAN and internal switching
Specifications :
| Specification | Details |
|---|
| Model Number | FWF-40F-3G4G |
| Product Type | Security Appliance (Firewall / SD-WAN with Wi-Fi & 3G/4G modem) |
| WAN Connectivity | Embedded 3G/4G LTE modem with external SMA antennas |
| Wireless | Wi-Fi 5 (802.11a/b/g/n/ac Wave 2), dual-band (2.4 GHz & 5 GHz) |
| Firewall Throughput | Up to 5 Gbps (1518-byte UDP) |
| IPS Throughput | Up to 1 Gbps |
| NGFW Throughput | Up to 800 Mbps |
| Threat Protection Throughput | Up to 600 Mbps |
| IPSec VPN Throughput | Up to 4.4 Gbps (512-bit) |
| Ports | 5× GE RJ45 (1 WAN, 4 internal switch), plus USB & Console |
| Form Factor | Desktop, fan-less |
| Dimensions (H × W × D) | 4.05 cm × 21.6 cm × 16 cm |
| Weight | Approx. 1 kg |
| Power | AC adapter with interchangeable plugs |
| Services / Bundled Support | FortiCare Premium / FortiGuard Enterprise Protection bundles available |
| Certifications | FCC, ICES, RCM, VCCI, BSMI, UL, cUL, CB, USGv6 |
