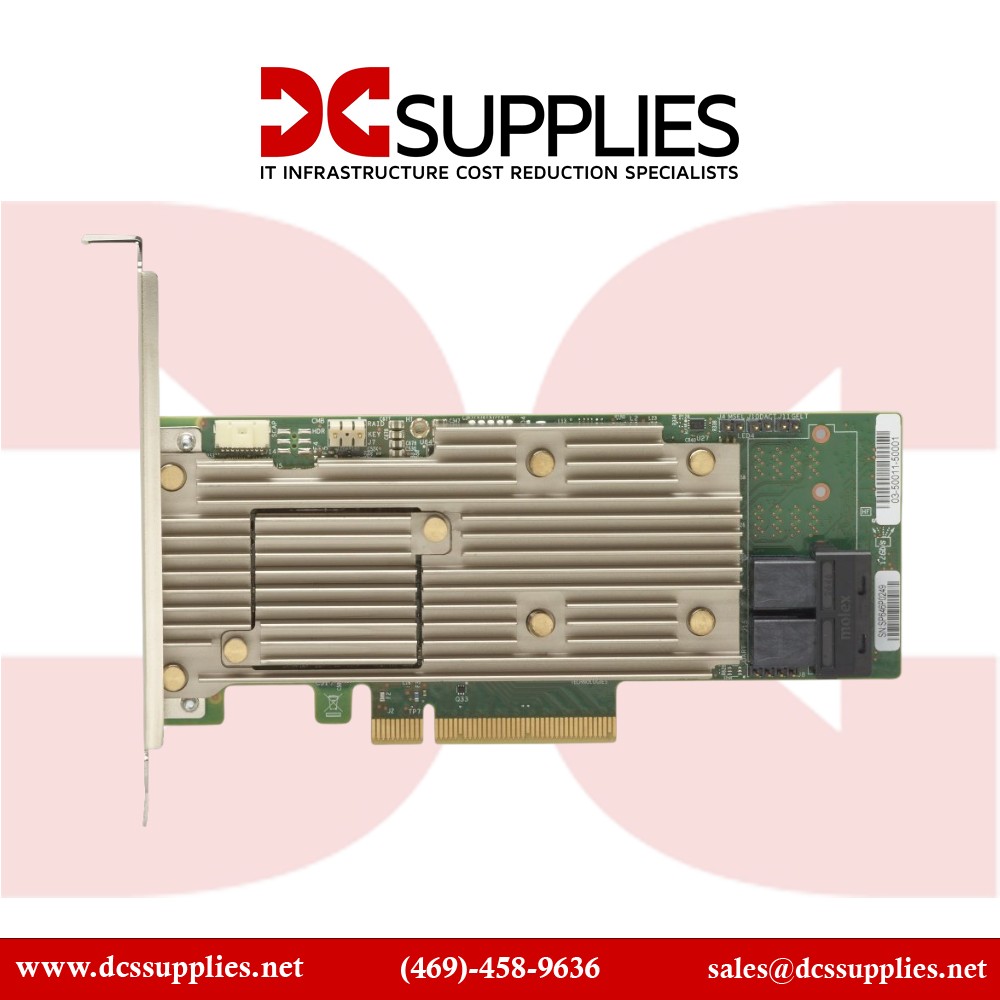

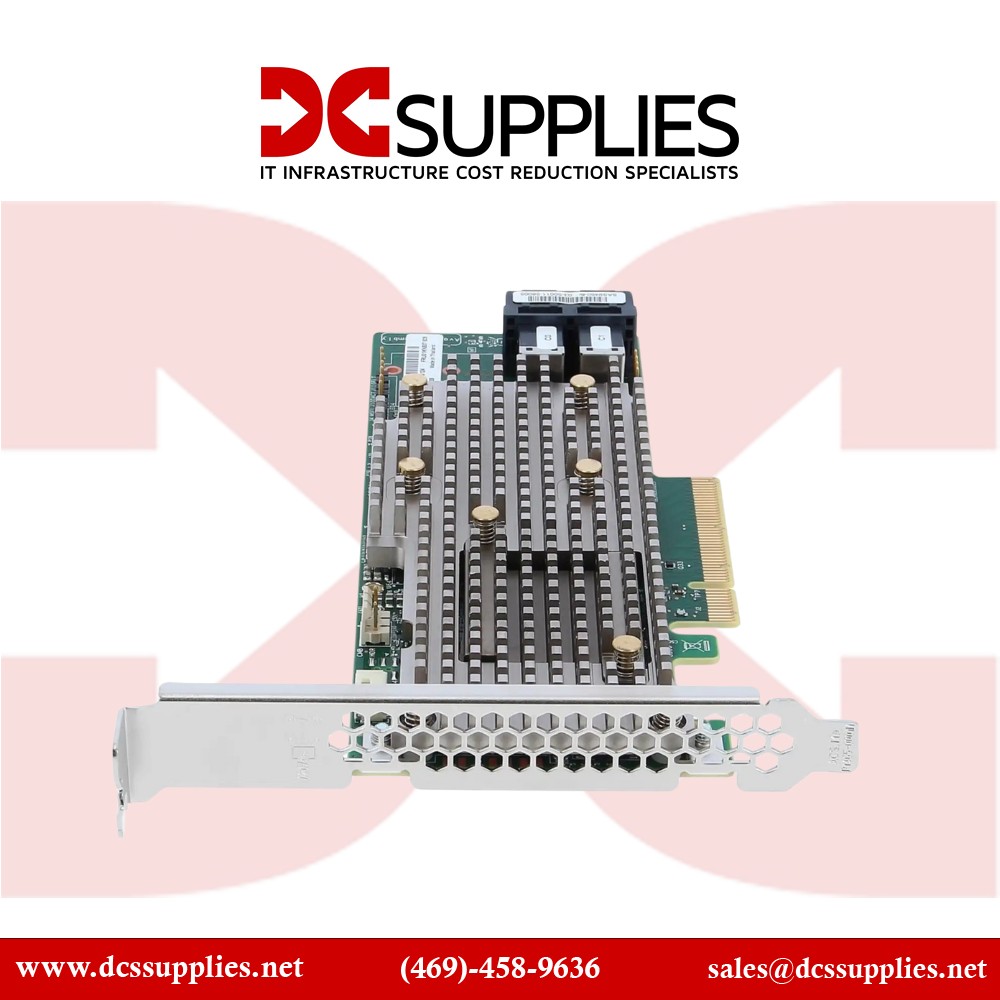

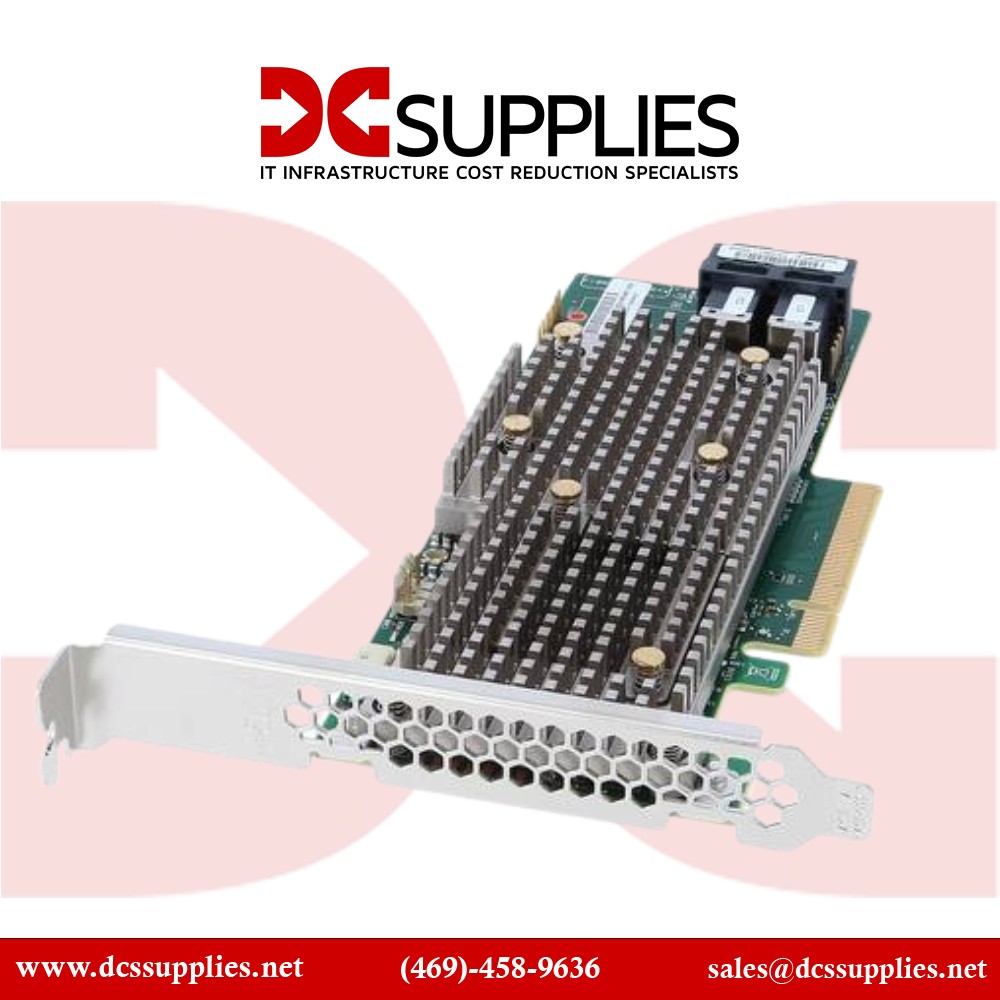

Lenovo 7Y37A01084 930-8i SATA/SAS 12Gb/s PCIe 3.0 x8 Storage Controller

Lenovo

7Y37A01084 930-8i SATA/SAS 12Gb/s PCIe 3.0 x8 Storage Controller

Intro Overview:

The Lenovo7Y37A01084 ThinkSystem RAID 930-8i is a high-performance, internal storage controller designed to meet the demanding requirements of enterprise servers and professional workstations. This advanced RAID-on-chip adapter provides exceptional data transfer speeds, robust data protection, and flexible storage management, making it an essential component for optimizing server performance and ensuring data integrity.

Expanded Overview:

Built on the Broadcom MegaRAID platform, the Lenovo 930-8i storage controller features a PCIe 3.0 x8 host interface and supports SAS/SATA drives at an impressive 12Gb/s data rate. With eight internal ports, it offers versatile connectivity for up to eight drives, supporting a wide range of RAID levels including 0, 1, 5, 6, 10, 50, and 60, as well as JBOD mode. Its 2GB of integrated flash-backed cache is protected by CacheVault technology, which uses a supercapacitor to safeguard data in the event of a power outage, eliminating the need for a traditional battery. The controller also includes performance-enhancing features like MegaRAID FastPath for SSD acceleration and SafeStore for managing self-encrypting drives. The 930-8i is an ideal solution for mission-critical applications that require a balance of high performance, security, and reliability.

Features :

The Lenovo 930-8i is an intelligent and integrated solution for professional use.

Product Key Features

• 12Gb/s SAS/SATA performance
• Supports a wide range of RAID levels (0, 1, 5, 6, 10, 50, 60)
• 2GB of flash-backed cache with supercapacitor protection
• PCIe 3.0 x8 host interface for high throughput
• Advanced features like SSD acceleration and SED support
• Ensures data integrity and high availability

---

Reliability & Performance :

Engineered for mission-critical environments, the Lenovo 930-8i storage controller provides the reliability and performance necessary for today's data-driven world. Its robust hardware RAID capabilities offload processing from the server's CPU, improving system responsiveness. The flash-backed cache and comprehensive RAID support ensure that your data is protected against drive failures and system downtime. With its low-profile design and wide compatibility, this controller integrates seamlessly into various server and storage configurations, delivering a dependable and scalable solution for your business.

Key Features :

• High-speed data transfer rates
• Robust hardware RAID capabilities
• Flash-backed cache for data protection
• Optimizes server performance
• Supports hot-swap drives
• An exceptional storage controller solution

Specifications :

Specification	Details
Model Number	7Y37A01084
Product Type	Storage Controller (RAID)
Host Interface	PCIe 3.0 x8
Controller Interface	SATA / SAS 12Gb/s
Internal Ports	8 (via 2 x Mini-SAS HD SFF-8643)
Data Transfer Rate	12 Gbps
RAID Levels Supported	0, 1, 5, 6, 10, 50, 60, and JBOD
Cache Memory	2 GB flash-backed cache
Processor	LSI LSISAS3508
Form Factor	Low-Profile Plug-in Card
Supported Devices	HDDs, SSDs, and SEDs
Key Features	CacheVault, FastPath, SafeStore
Compatible Operating Systems	Windows Server, RHEL, SLES, VMware ESXi
Dimensions (HxW)	68.9 mm x 167.6 mm
Warranty	1-Year Limited Warranty
