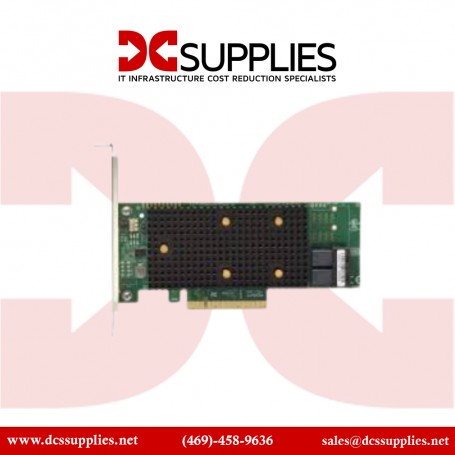

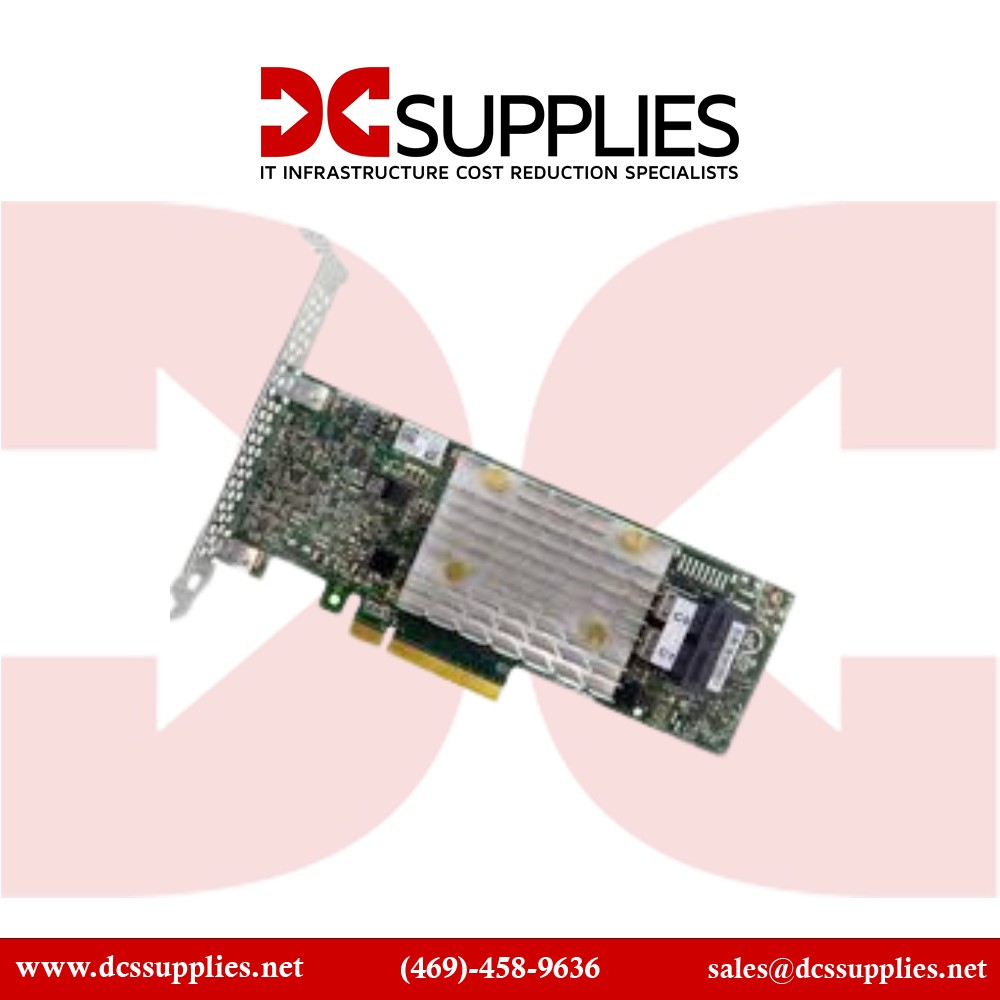

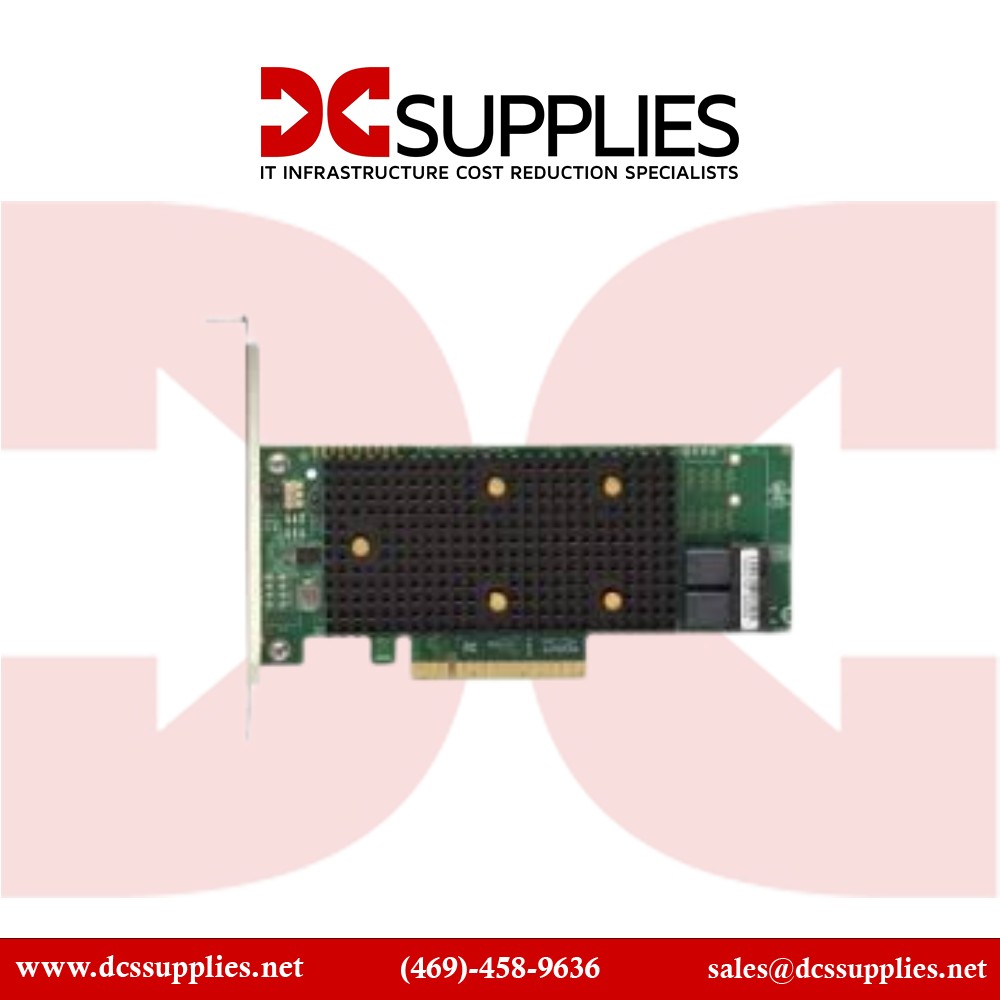

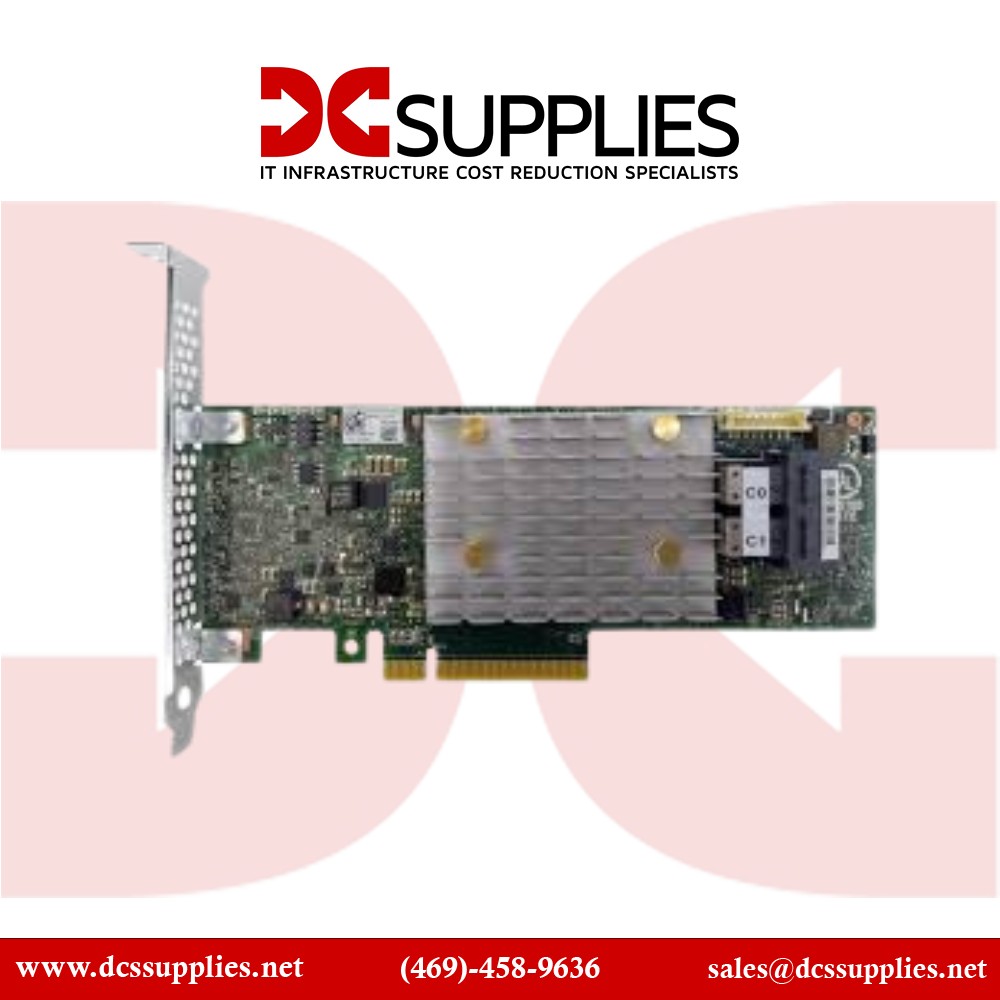

Lenovo 4Y37A72483 RAID 9350-8I 2GB Flash

New

Lenovo 4Y37A72483 RAID 9350-8I 2GB Flash
×




  • New

Detailed Specifications

Lenovo 4Y37A72483

ThinkSystem RAID 9350-8I 2GB Flash PCIe 12Gb Adapter

The Lenovo ThinkSystem RAID 9350-8I 2GB Flash PCIe 12Gb Adapter is a high-performance SAS controller designed to elevate your server’s storage capabilities. With a substantial 2 GB cache and a 12 Gb/s interface, it ensures faster data processing and improved throughput, making it ideal for demanding enterprise applications. 1 Its broad OS compatibility and versatile RAID support make it a flexible and reliable choice for businesses seeking scalable storage solutions.

Overview :

This RAID controller provides robust storage management for enterprise servers, supporting up to 8 SAS drives via Mini-SAS HD (SFF-8643) connectors. Its PCIe 3.0 x8 interface guarantees rapid data transfer rates, maximizing system efficiency and responsiveness. Whether deploying high-availability configurations with RAID 1, RAID 5, or RAID 10, or utilizing JBOD for direct drive access, this controller offers extensive flexibility to match your workload requirements. The 2 GB cache memory significantly improves overall performance by reducing latency and accelerating data access for critical applications. Its compatibility with various operating systems, including Windows Server 2016, 2019, and several Linux distributions, ensures seamless integration into diverse IT infrastructures.

Features :

Designed for enterprise use, the Lenovo RAID 9350-8I's plug-in form factor simplifies installation within standard server chassis. This high-speed SAS controller is engineered for reliability and scalability. It supports hot-swapping drives where hardware permits, facilitating maintenance without system shutdowns. 2 The sturdy design and enterprise-grade features ensure consistent operation, making it suitable for demanding workloads such as virtualization, database management, and large-scale data storage. Its high-quality connectors and internal components are designed for durability and stability, supporting continuous operation in server environments.

Product Key Features

  • 2 GB Cache Memory: For enhanced data processing and reduced latency.
  • Supports RAID 0, 1, 5, 10, 50, 60, and JBOD: Provides versatile data protection and performance configurations.
  • PCIe 3.0 x8 Interface: Delivers high-speed data transfer rates.
  • SAS Connectivity: Features 8 SAS ports for expanded storage.

Reliability & Performance :

The Lenovo RAID 9350-8I combines high-speed data transfer with reliable operation. Its 2 GB cache memory enhances performance under heavy workloads, while the PCIe 3.0 x8 interface ensures rapid communication with the server’s CPU and memory. The controller’s support for various RAID levels provides flexible data redundancy and performance tuning options, tailored to your specific needs. The device's high-quality connectors and components are designed for durability and stability, supporting continuous operation in demanding server environments.

Key Features :

  • RAID 0, 1, 5, 10, 50, 60, and JBOD: Comprehensive RAID options for various data protection strategies.
  • PCIe 3.0 x8 Interface: High-speed communication with the server.
  • 2 GB Cache: Enhances performance and reduces latency for faster data access.
  • 8 SAS Ports: Expands storage capacity and offers greater flexibility.

Specifications :

FeatureSpecification
Model Number 9350-8i
Product Type SAS Controller
RAID Supported Yes
Total Number of SAS Ports 8
Form Factor Plug-in Card
Device Supported Server
RAID Levels Supported 0, 1, 5, 10, 50, 60, JBOD (RAID)
Controller Type 12 Gb/s SAS
Host Interface PCIe 3.0 x8
SAS Connector Details 2x Mini-SAS HD x4 (SFF-8643)
Cache Memory 2 GB
Height 2.5 inches
Length 6.6 inches
Operating Systems Supported Windows Server 2016, 2019; Red Hat Linux 7.9, 8.2, 8.3; SUSE Linux Enterprise 12 SP5, 15 SP2; Ubuntu 18.04, 20.04
