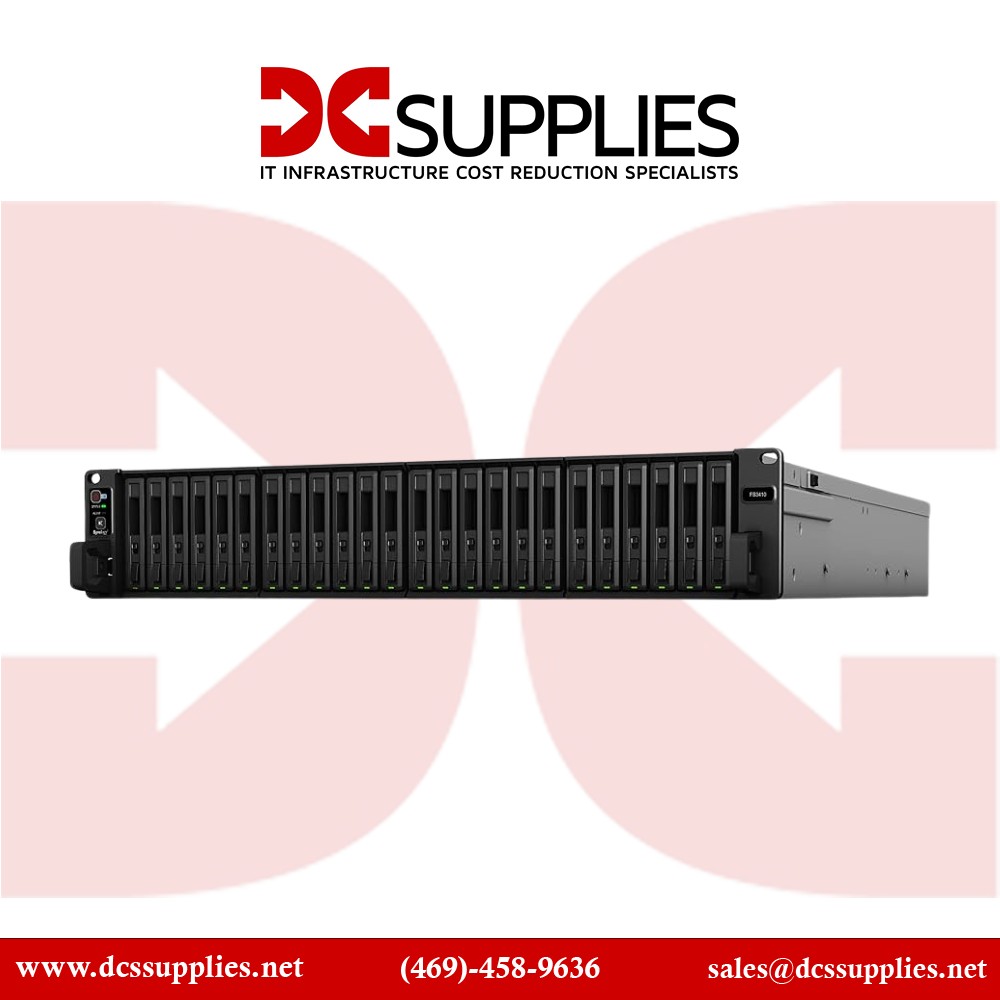

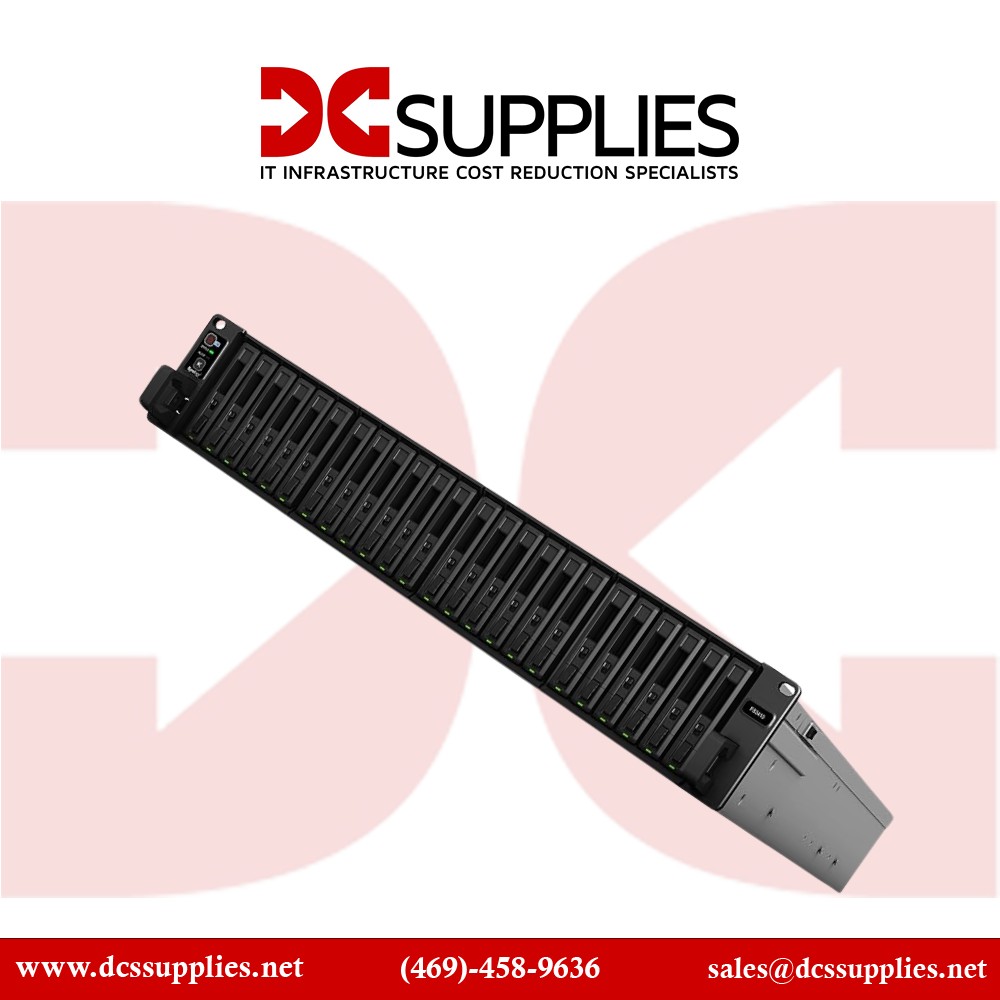

Synology FS3410 24-Bay Flashstation (Diskless)

Synology FS3410

24-Bay DiskStation(Diskless)

The Synology **FS3410** is a high-performance, all-flash **2U rackmount server** designed for enterprise-level applications that demand extremely low latency and high IOPS. This powerful **24-bay DiskStation** is built to handle the most intensive workloads, such as virtualization, database management, and large-scale video post-production. The **diskless** model provides the flexibility to install your own SSDs, allowing for a custom, optimized storage solution for your specific needs.

Advanced Features :

Powered by an **Intel Xeon D-1541 8-core processor**, the FS3410 delivers exceptional computing power to match its all-flash storage capabilities. It comes with **16 GB of DDR4 ECC RAM**, which is expandable up to **128 GB**, ensuring system stability and seamless multitasking. The server features a robust set of built-in network ports, including **2 x 10GbE and 4 x 1GbE**, and offers further expansion with a **PCIe 3.0 x8 slot** for even faster connectivity. For all-flash arrays, the FS3410 supports **Synology's RAID F1**, a specialized RAID type that distributes data evenly to enhance the endurance of SSDs. All these features are managed through the comprehensive **DiskStation Manager (DSM)** operating system.

Features :

The Synology FS3410 is an ideal solution for businesses looking to accelerate their mission-critical applications. Its all-flash design eliminates bottlenecks and provides consistent, high-speed performance. The hot-swappable drive bays and redundant power supply (sold separately) simplify maintenance and ensure continuous operation. The DiskStationis also designed for seamless integration into existing infrastructure and provides a full suite of data protection, backup, and security features through DSM.

Product Key Features

• 24-Bay All-Flash Array
• Intel Xeon D-1541 8-Core Processor
• 16 GB DDR4 ECC RAM (expandable to 128 GB)
• 2U Rackmount Form Factor

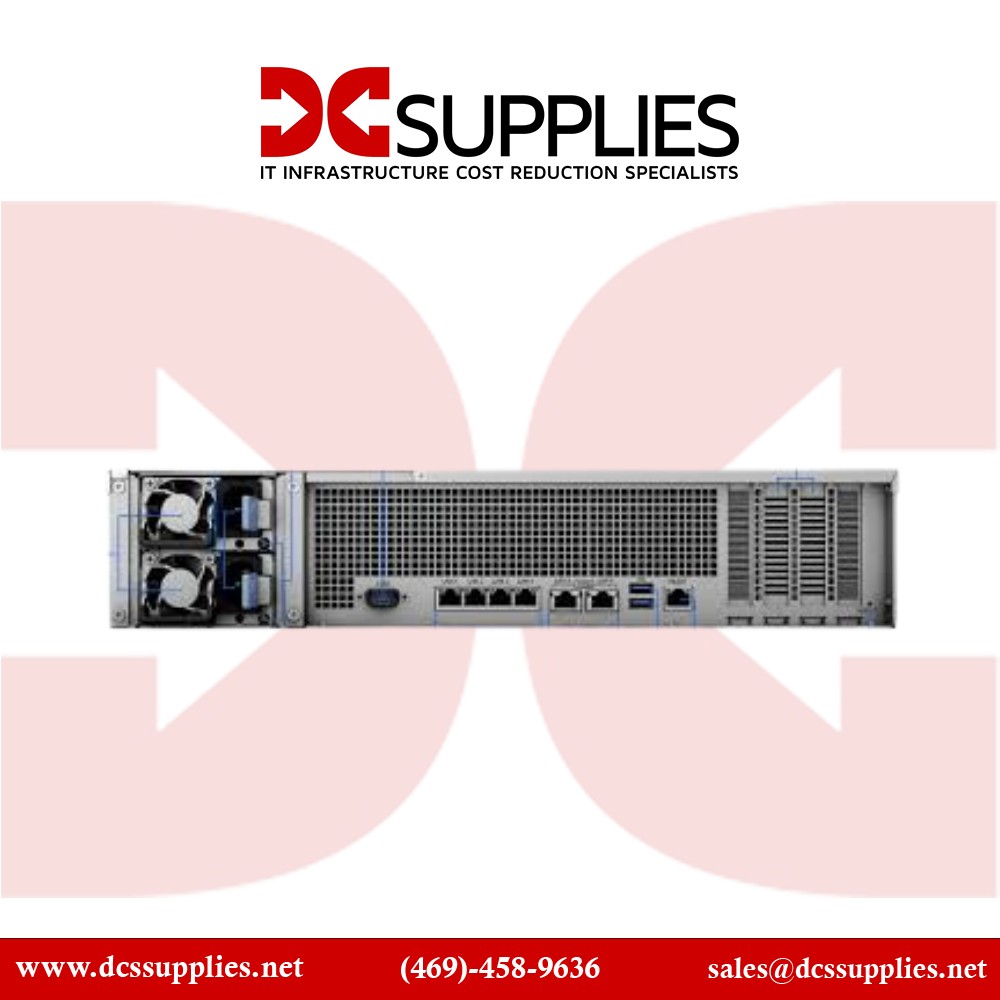

• 2 x 10GbE and 4 x 1GbE LAN Ports
• PCIe Expansion Slot for up to 25GbE
• Synology RAID F1 Support

---

Reliability & Performance :

The FS3410 is engineered for enterprise-grade reliability and top-tier performance. The use of **ECC memory** prevents data errors, which is critical for all-flash systems. The specialized **RAID F1** technology extends the lifespan of SSDs, while the robust hardware design and hot-swappable components ensure maximum uptime. The DiskStationability to deliver consistent low-latency performance makes it a game-changer for applications where speed is a top priority, guaranteeing a responsive and reliable storage solution for years to come.

Key Features :

• High-speed data transfer and low latency
• Designed to work with Synology SAT5200 series SSDs
• Comprehensive data protection via snapshots and replication
• Virtualization support (VMware, Hyper-V, Citrix)
• Advanced management tools with DSM

Specifications :

Specification	Details
Model Number	FS3410
Brand	Synology
Product Type	DiskStationAll-Flash NAS
Drive Bays	24 (2.5" SSD)
Form Factor	Rack (2U)
CPU	Intel Xeon D-1541 8-Core (2.1 GHz)
RAM	16 GB DDR4 ECC (expandable to 128 GB)
LAN Ports	2 x 10GbE RJ-45, 4 x 1GbE RJ-45
PCIe Expansion	1 x Gen3 x8 slot
RAID Support	RAID F1, Basic, JBOD, RAID 0, 1, 5, 6, 10
