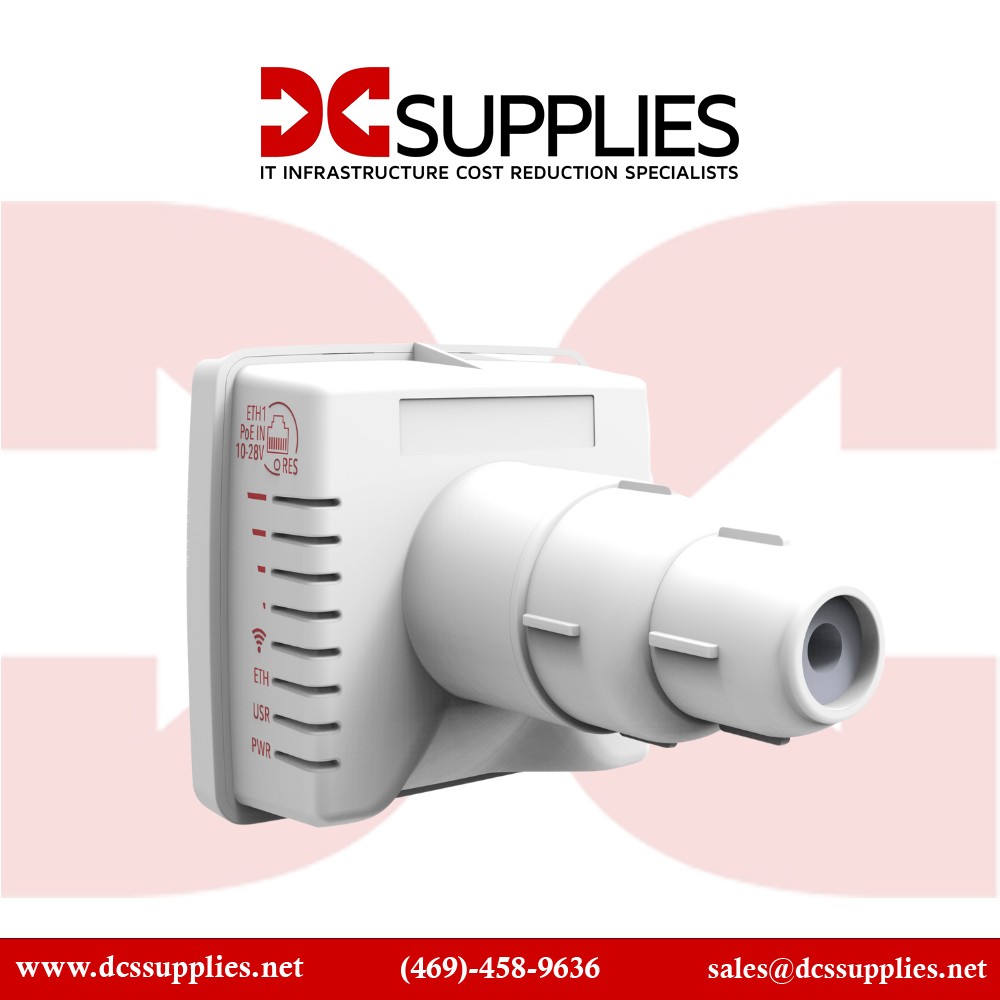

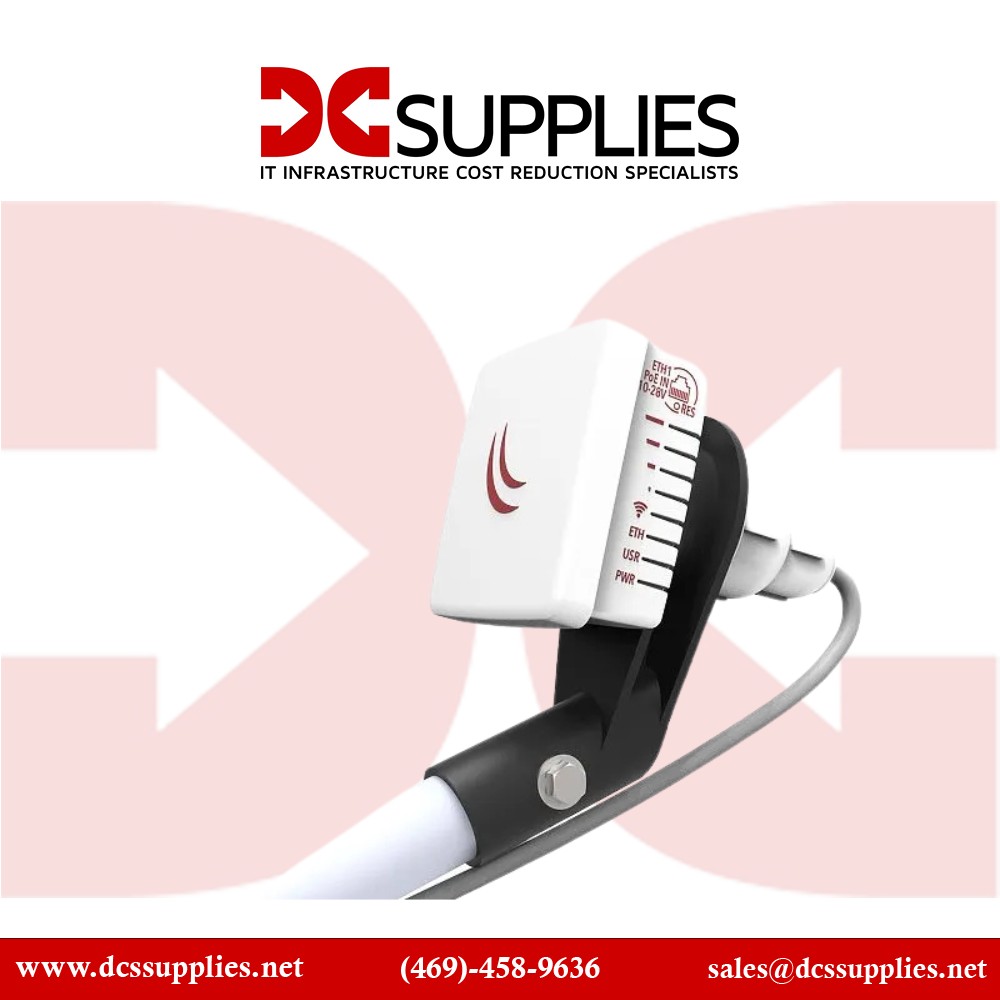

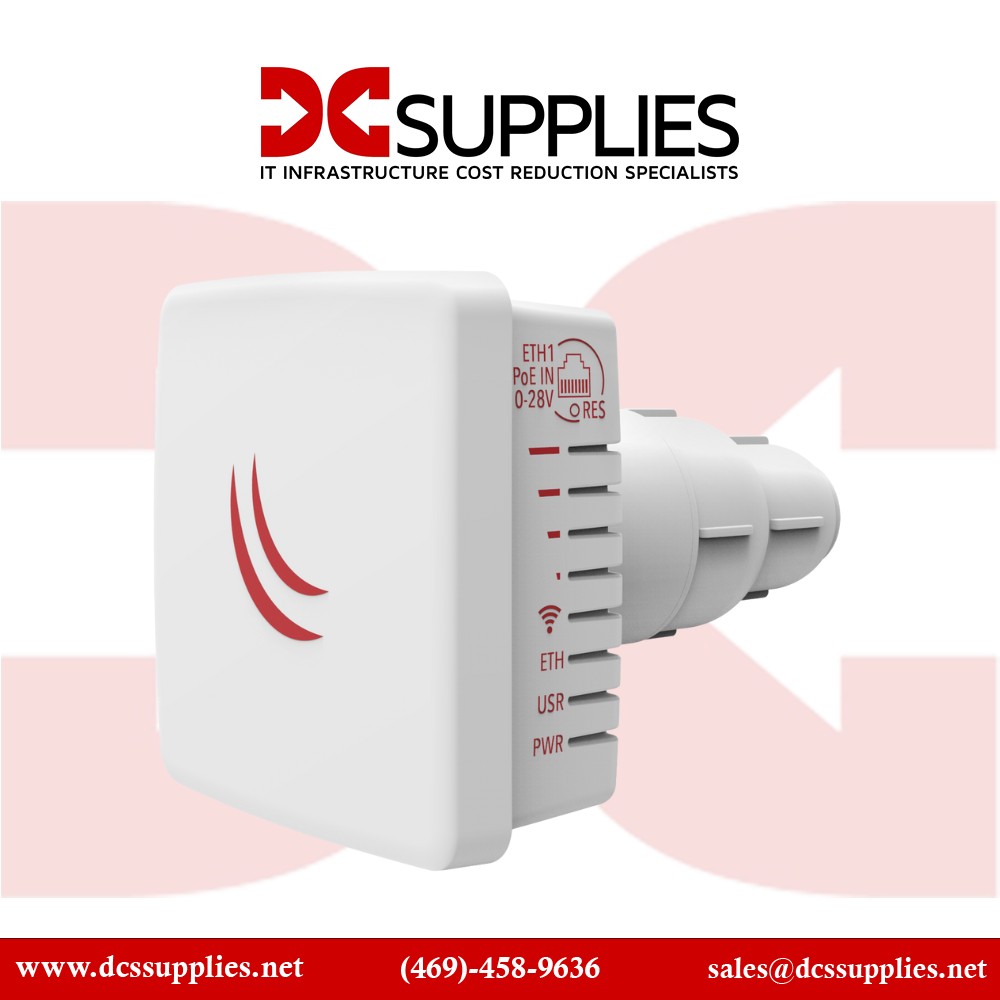

MikroTik RBLHG-2nD

LHG2 2.4GHz Outdoor Grid Antenna with Integrated Router BOARD

The MikroTik RBLHG-2nD (LHG2) is a compact and powerful outdoor wireless unit designed for long-range 2.4GHz point-to-point links or as a CPE. With its built-in high-gain antenna and integrated RouterBOARD, it offers a complete, low-cost solution for extending wireless networks across challenging terrains.

Features

The LHG2 combines a dual-chain 2.4GHz 802.11b/g/n radio with a lightweight grid antenna into a single, compact device. The 18 dBi antenna focuses signal strength for greater distance and reliability, making it ideal for rural deployments or bridging remote networks.

Advanced Options

Powered by a 650 MHz CPU with 64 MB of RAM, the device supports RouterOS Level 3, enabling configurations as a wireless bridge, client, or simple access point. The device mounts easily to poles and towers, with a rugged, UV and weather-resistant enclosure built to handle tough outdoor conditions.

Product Key Features

• • Integrated 2.4GHz dual-chain wireless radio with built-in 18 dBi grid antenna

  • Designed for long-distance point-to-point or CPE connections

  • Outdoor-ready enclosure with lightweight and wind-resistant design

  • Powered via passive PoE through a single Ethernet port

  • Runs RouterOS Level 3, enabling wireless client or bridge functionality

  • Ideal for rural deployments, WISPs, or hard-to-reach network links

Reliability & Performance

Designed for outdoor endurance, the LHG2 features a grid-style reflector that reduces wind load and increases mounting stability. The unit is passively powered through its single Ethernet port via PoE, simplifying installation by reducing cabling needs. It's a dependable solution for high-gain, long-range connectivity on the 2.4GHz spectrum.

Key Features :

• 2.4GHz dual-chain 802.11b/g/n wireless radio

• Integrated 18 dBi grid antenna

• 1 × 10/100 Ethernet port

• Passive PoE input (11-30 V)

• Lightweight outdoor plastic enclosure

• RouterOS Level 3 license included

• Long-distance CPE or point-to-point design

• Pole-mounting hardware included

Specification	Details
Model Number	RBLHG-2nD (LHG2)
Product Type	Outdoor Wireless Antenna with RouterBOARD
Wireless Frequency	2.4 GHz
Wireless Standards	802.11b/g/n
Wireless Chains	2 (dual-chain MIMO)
Antenna Gain	18 dBi grid antenna
CPU	QCA9533, 650 MHz
RAM	64 MB
Storage	16 MB Flash
Ethernet Port	1 × 10/100 Mbps RJ-45
PoE Input	Passive PoE (11-30 V)
Operating System	RouterOS, License Level 3
Enclosure	Outdoor grid, UV-resistant plastic
Mounting	Pole mount (kit included)
Dimensions	Ø 391 × 222 mm
Weight	~560 g
