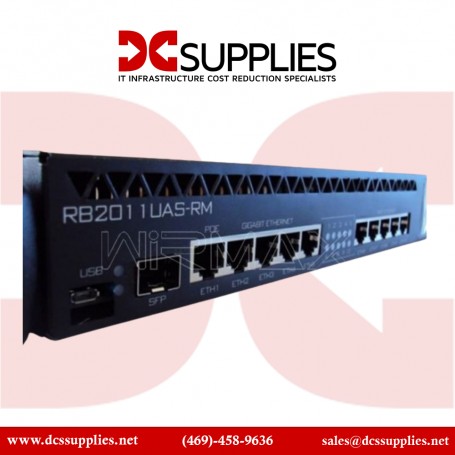

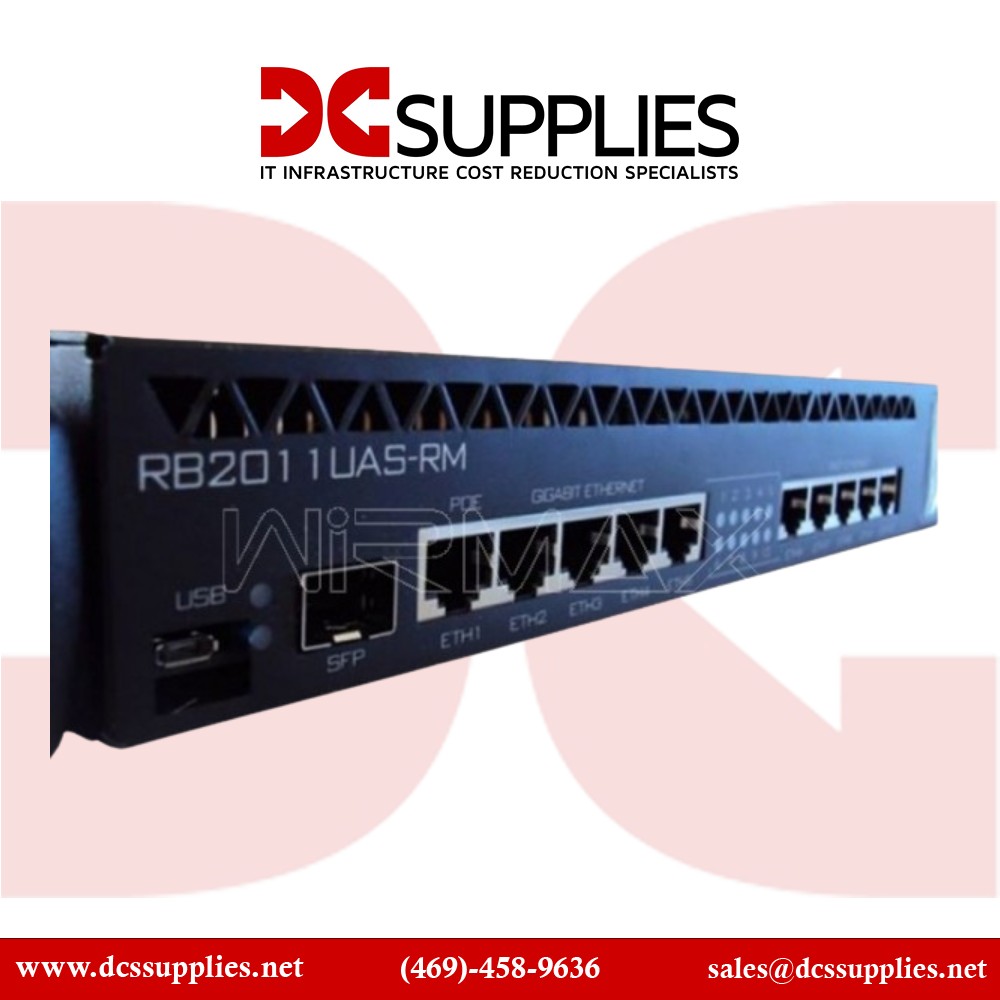

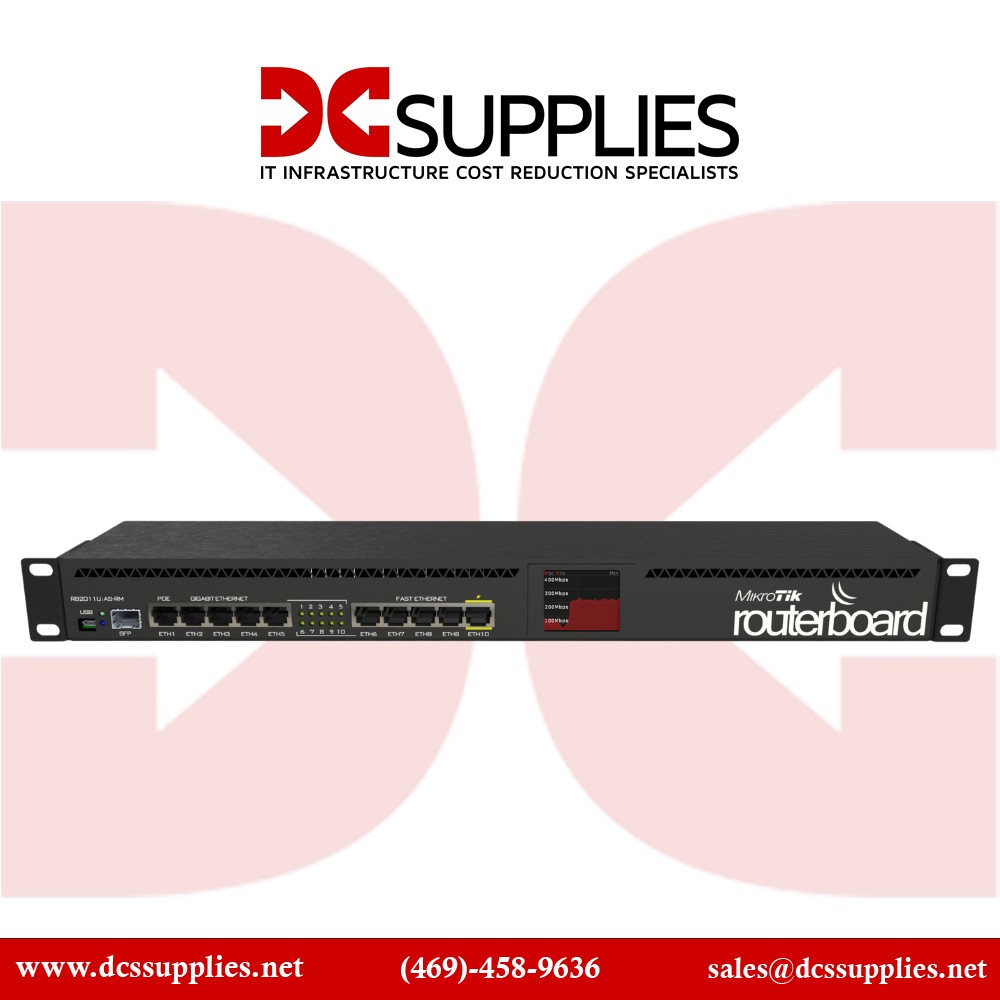

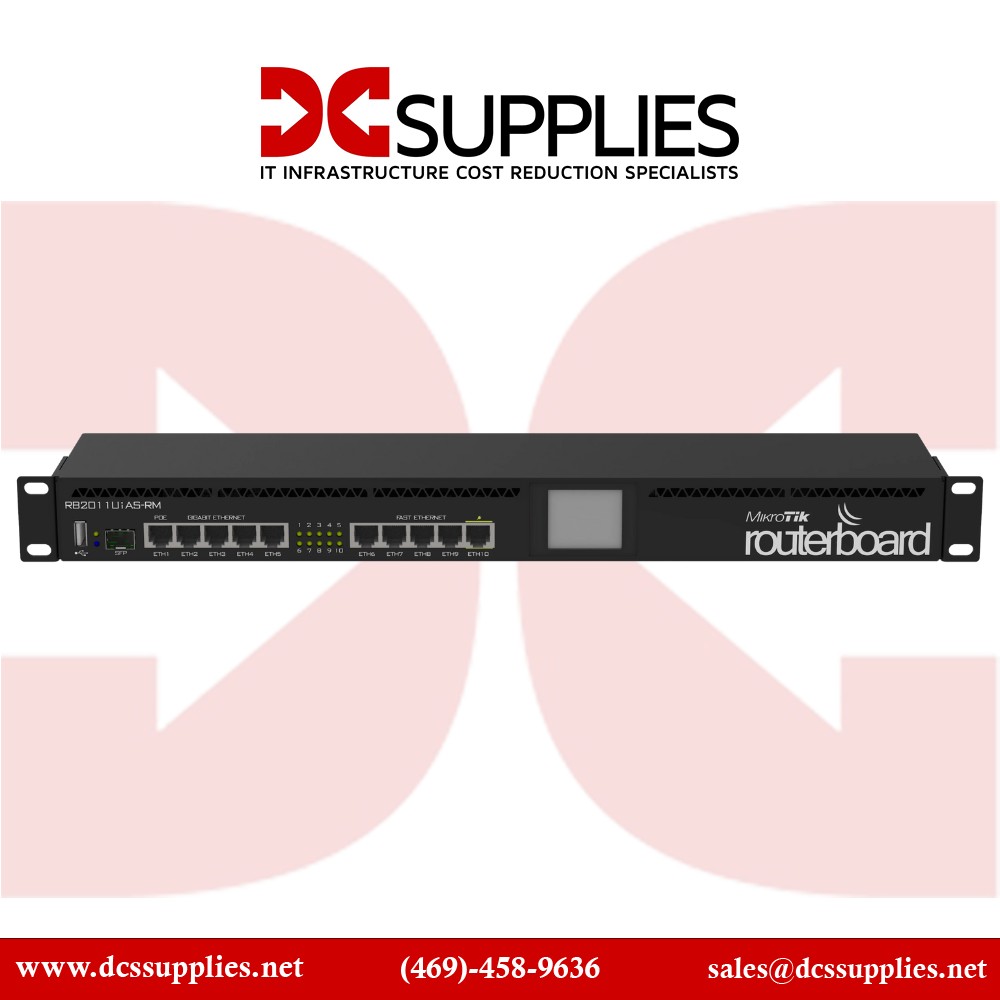

MikroTik RB2011UiAS-RM Routerboard 5xLAN 5xGigabit

New

MikroTik RB2011UiAS-RM Routerboard  5xLAN...

×




  • New

Detailed Specifications

MikroTik RB2011UiAS-RM

Rackmount Router Board with 5x Fast Ethernet & 5x Gigabit Ports

The MikroTik RB2011UiAS-RM is a versatile rackmount RouterBoard designed for professional and enterprise-grade network environments. Offering ten Ethernet ports, touchscreen diagnostics, and expanded storage options, it's built to handle dynamic workloads in access and edge routing scenarios.

Features

The RB2011UiAS-RM is a more advanced version of the RB2011 series, offering a combination of 5 Fast Ethernet and 5 Gigabit Ethernet ports to accommodate a mix of legacy and high-speed network devices. It also includes a USB port and microSD slot, allowing for external file storage, boot options, or backup configurations. The integrated touchscreen LCD provides easy status updates and system metrics without needing a separate console.

Advanced Options

Powered by a 600 MHz Atheros AR9344 CPU with 128 MB of RAM, this unit delivers responsive performance for routing, filtering, VPN tunneling, and traffic shaping. The included RouterOS Level 5 license enables advanced features like EoIP tunnels, MPLS, VLANs, and hotspot management.

Product Key Features

    • 10-port router with a combination of 5 Fast Ethernet and 5 Gigabit Ethernet ports

    •  Includes an LCD touchscreen display for real-time monitoring and diagnostics

    •  Features USB port and microSD slot for additional storage or configuration

    • Passive PoE output on port 10 to power compatible MikroTik devices

    •  Runs RouterOS Level 5, supporting advanced networking, firewall, VPN, and hotspot features

    • 1U metal rackmount enclosure with passive cooling for silent operation

Reliability & Performance

Built for durability, the RB2011UiAS-RM is housed in a sturdy 1U metal rackmount enclosure and passively cooled for silent, maintenance-free operation. It supports passive PoE output on port 10, making it a practical power source for wireless access points or other MikroTik RouterBOARDs. Ideal for SMBs, branch offices, and advanced lab setups.

Key Features :

  • 5 × Fast Ethernet ports

  • 5 × Gigabit Ethernet ports

  • LCD touchscreen for system monitoring

  • Passive PoE output on port 10

  • USB port and microSD slot for storage

  • Atheros AR9344 600 MHz CPU

  • 128 MB RAM / 128 MB NAND storage

  • RouterOS Level 5 license

  • 1U rackmount metal enclosure

  • Fanless, silent cooling

SpecificationDetails
Model Number RB2011UiAS-RM
Product Type Rackmount Ethernet Router
CPU Atheros AR9344, 600 MHz
RAM 128 MB DDR2
Storage 128 MB NAND
Ethernet Ports 5 × Fast Ethernet, 5 × Gigabit Ethernet
PoE Output Yes, passive PoE on port 10
USB Port Yes (Type-A)
microSD Slot Yes
LCD Display Yes (touchscreen)
Operating System RouterOS, License Level 5
Enclosure 1U Rackmount metal case
Cooling Passive (fanless)
Dimensions 443 × 92 × 44 mm
Weight ~600 g
